Service Manual
Operating Lights marLED® E3, E9, E9i, E15, battery and
marLED® E3 on ceiling tube Ø 110 mm
110 Revision 2
11.1.3 Design including Miniature Fuses up to HW 31

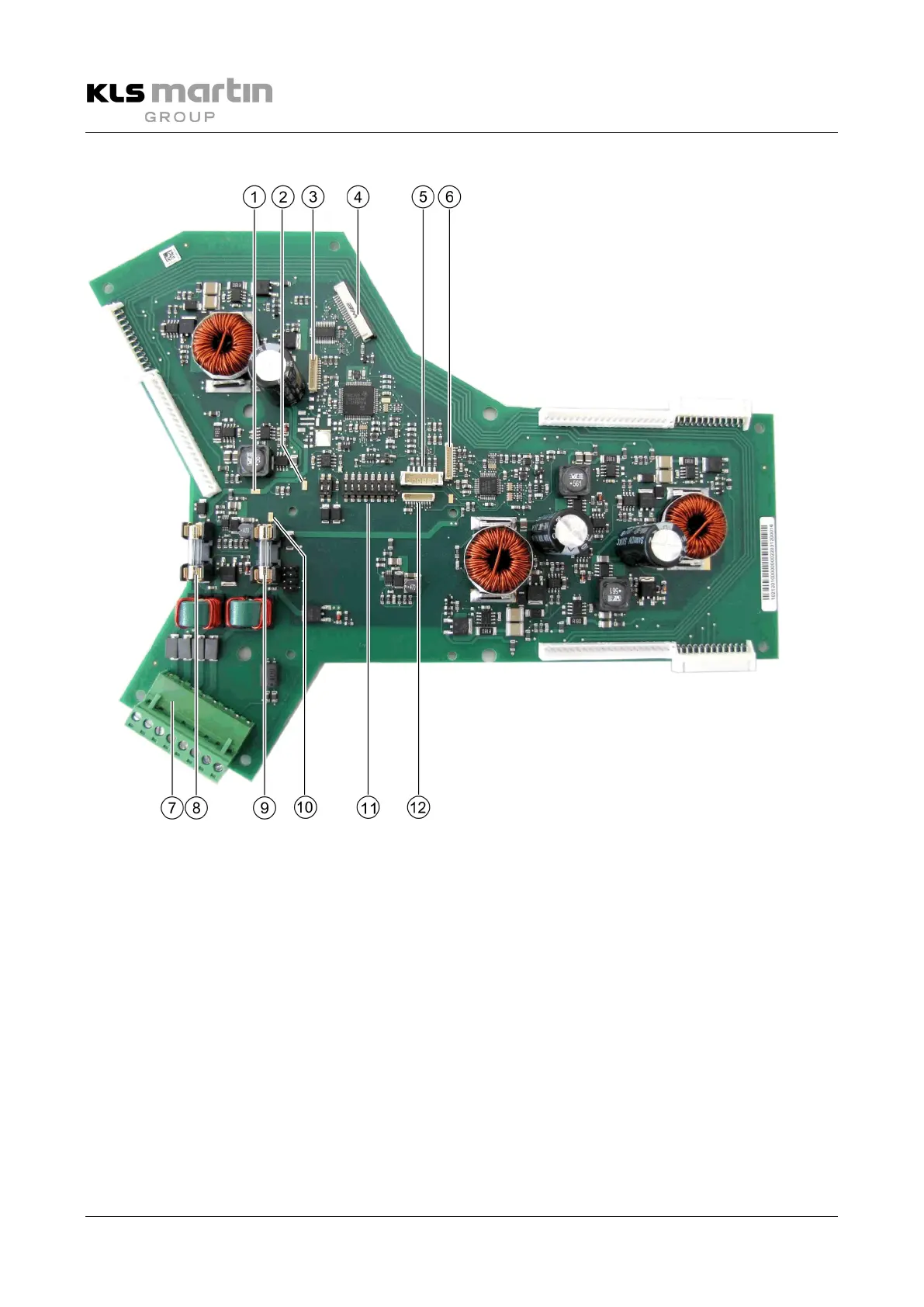

Fig. 11-3: Control electronics marLED® E up to HW 31, details
1
VDC+ Master
8
Miniature fuse 1 Slave, T 6.3 AH, 250 V
2
VDC-
9
Miniature fuse 2 Master, T 6.3 AH, 250 V
3
For development purposes only
10
VDC+ Slave
4
Control panel foil connector
11
DIP switch
5
sensoGrip Standard
12
Programming interface
6
For development purposes only
7 Cable connection terminal for supply voltage, for pin assignment see section 9.13.2 “Connection terminal for
Supply Voltage/CAN Bus”, page 89.
