Service Manual
Operating Lights marLED® E3, E9, E9i, E15, battery and
marLED® E3 on ceiling tube Ø 110 mm
86 Revision 2
9.12 Mounting and Connecting the surgiCam Daughterboard

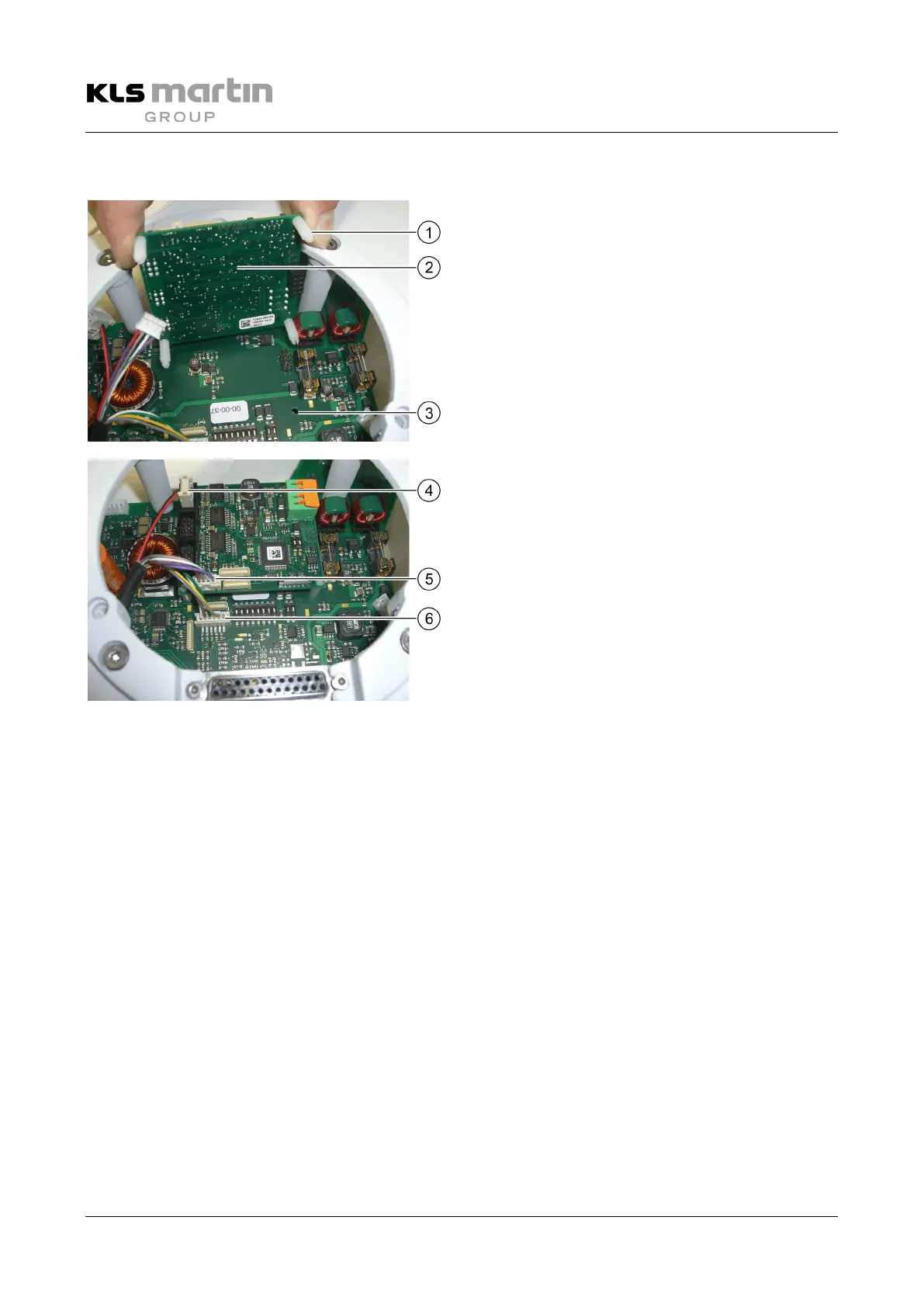

• Insert the daughterboard (2) with its pins (1)
into the openings (3), making sure that the pins
lock into place.
• Connect the plugs (4, 5, 6) as shown.
