KLS Martin group marLED E3 - Removing the Light Head from the Spring Arm

Service Manual
Operating Lights marLED® E3, E9, E9i, E15, battery and
marLED® E3 on ceiling tube Ø 110 mm
72 Revision 2

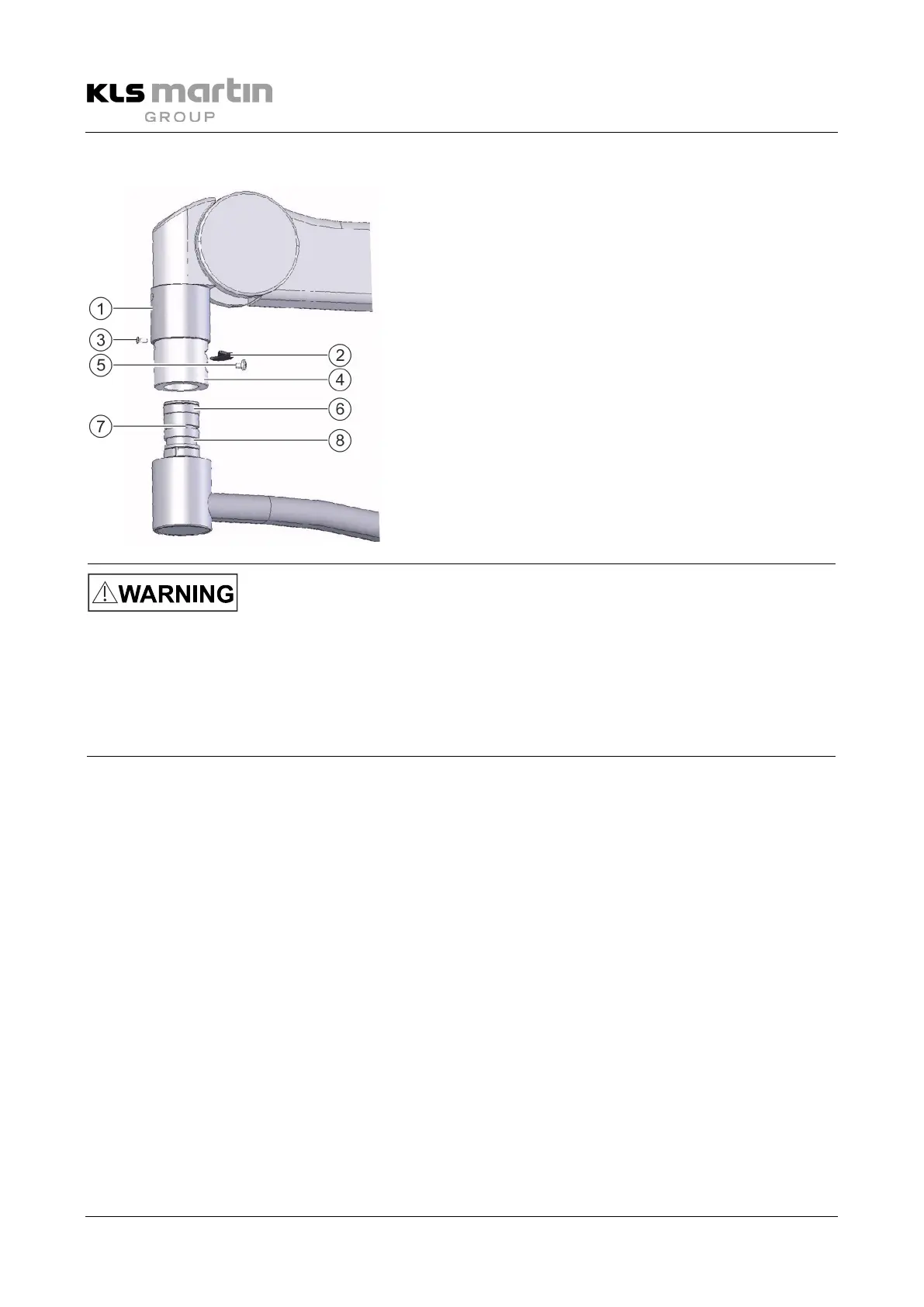

9.1.2 Removing the Light Head from the Spring Arm
1
Safety sleeve
2
Locking segment
3
Redundant locking screw, M4x5 mm oval head screw
without washer (acc. to DIN 7985)
4
Spring arm socket
5
Fixing screw
6
Neck of cardanic system
7
Groove for locking segment
8
Groove for redundant locking screw (3)
Danger of injury when dismo
unting the light head!
The spring arm is subject to high spring forces. If you do
not set the spring arm to its highest position
before removing the light head, the arm will snap up violently and may cause severe injury in the process.
•
Before removal of the light head, adjust the height limitation of the spring arm, see section 9.1.1
“Adjusting the Height Stop on AC2000”, page 71.
• Remove fixing screw (5), then slide safety sleeve (1) upwards.
• Remove the redundant locking screw (3).
• Take firm hold of the light, because it will become disconnected in the next step.
• Using a narrow flat-tip screwdriver, remove the locking segment (2) from the slot.
• Remove the light head with its cardanic suspension bracket from the spring arm.
