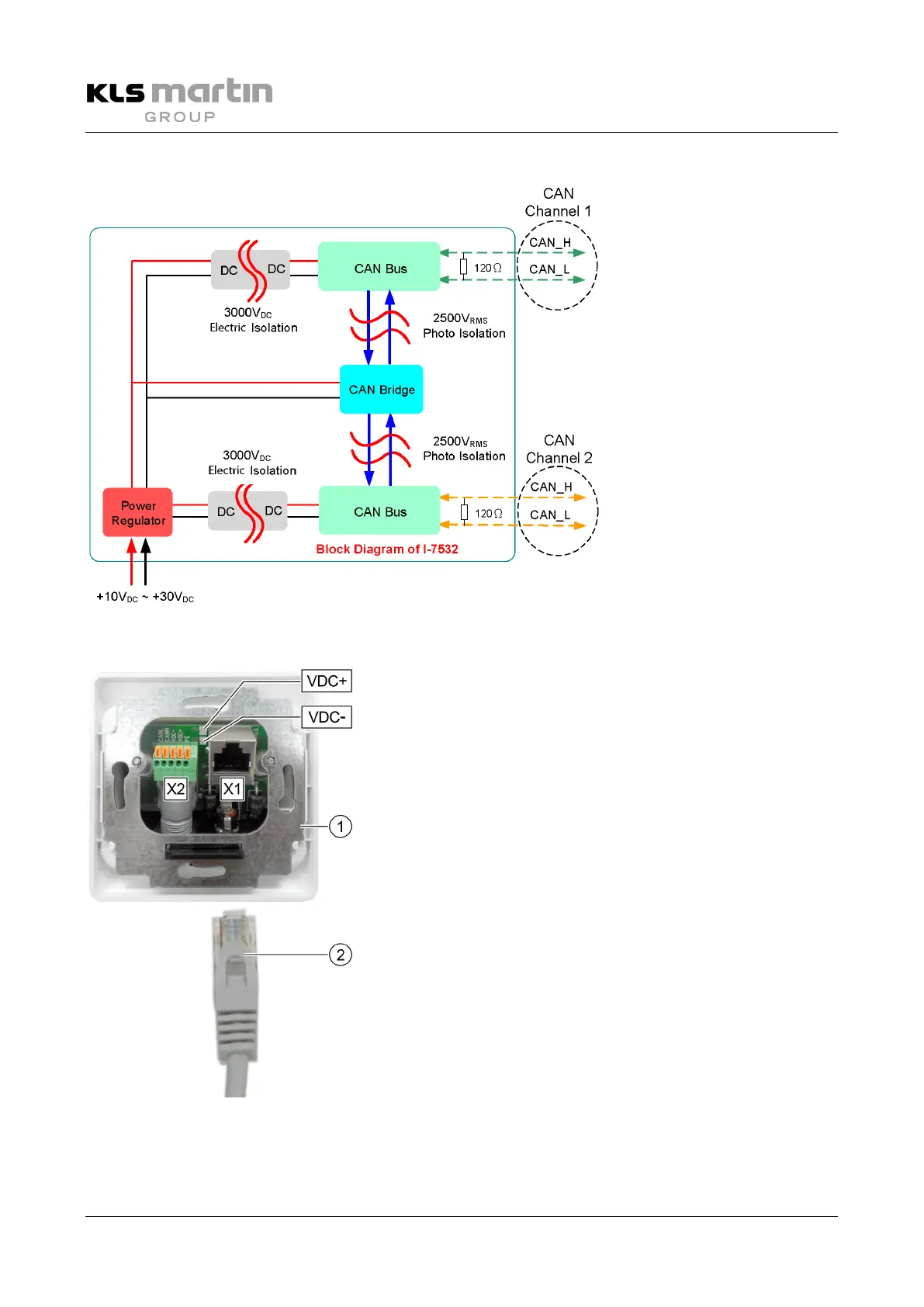

6.1.15 Coupler Block Diagram
6.1.16 Wall Box Connections (Rear)
The marTouch® control unit is shipped complete with
a RJ45 cable (15 m) and a wall box (1).
• Plug the RJ45 plug (2) of the 15-m cable coming
from the CAN board into the RJ45 socket X1 of the
wall box (1).
– This completes the wall box cabling process.
If you need to remove the RJ45 plug:
• Connect the cable to the X2 terminal block of the
wall box (1). For enlarged image, see Fig. 6-1.
• The supply voltage is available at 2 measuring
points (VDC+, VDC-).
