Service Manual
Operating Lights marLED® E3, E9, E9i, E15, battery and
marLED® E3 on ceiling tube Ø 110 mm
Revision 2 75
9.3 Service Plug
This plug is used to jumper (short-circuit) functions (incl. safety functions) after removing the sensoGrip.

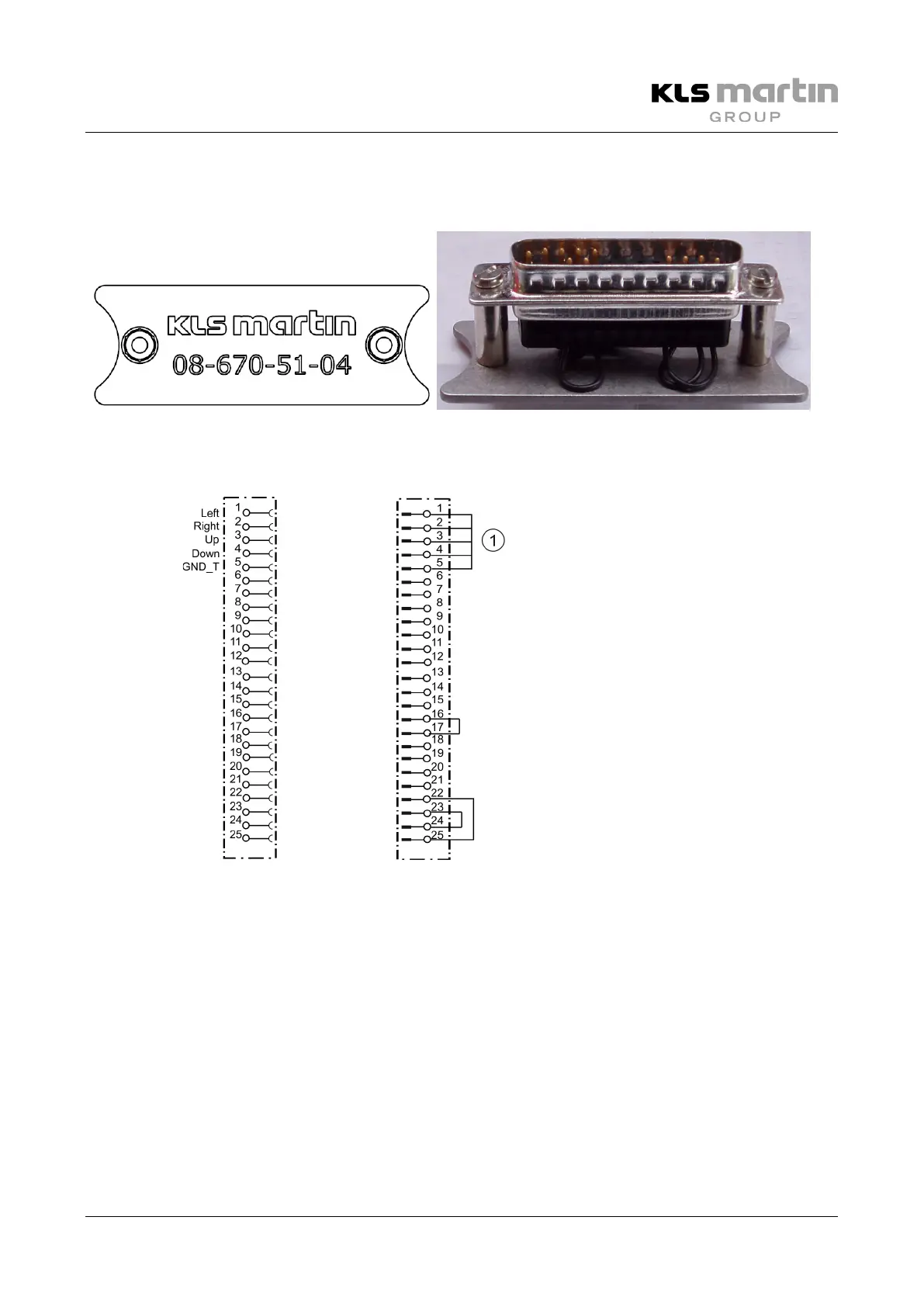

Fig. 9-1: Underside and side view
D-Sub socket, 25-pole Service plug with jumpered contacts
1 Micro switches
Fig. 9-2: Pin assignment in service plug
