KLS Martin group marLED E3 - Camera System surgiCam HD Overview

Service Manual
Operating Lights marLED® E3, E9, E9i, E15, battery and
marLED® E3 on ceiling tube Ø 110 mm
48 Revision 2

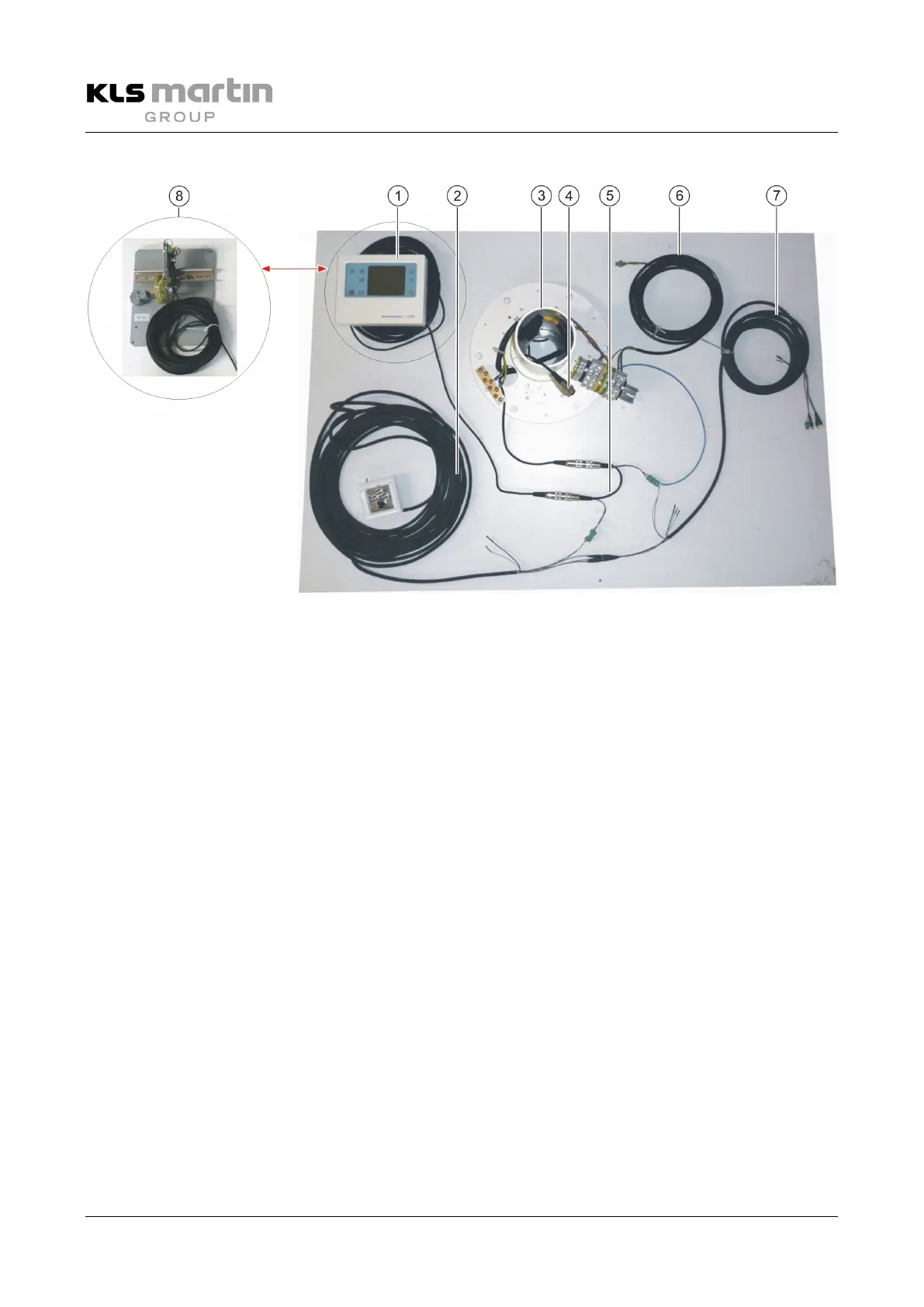

6.3.1 Overview of Camera System surgiCam HD, Cable and Connection Options
1, 8
Wall control panel; alternatively: COM interface for RS232 control
2
HD-Y cable with wall box
3
Ceiling tube with clip contacts
4
CAN bus circular plug to camera
5
Adapter cable on ceiling tube for CAN bus connection
6
Power supply cable to tracking/spring arm interface
7
Video and control cable to tracking/spring arm interface
