9.13.3 Connection for D-Sub Plug of sensoGrip

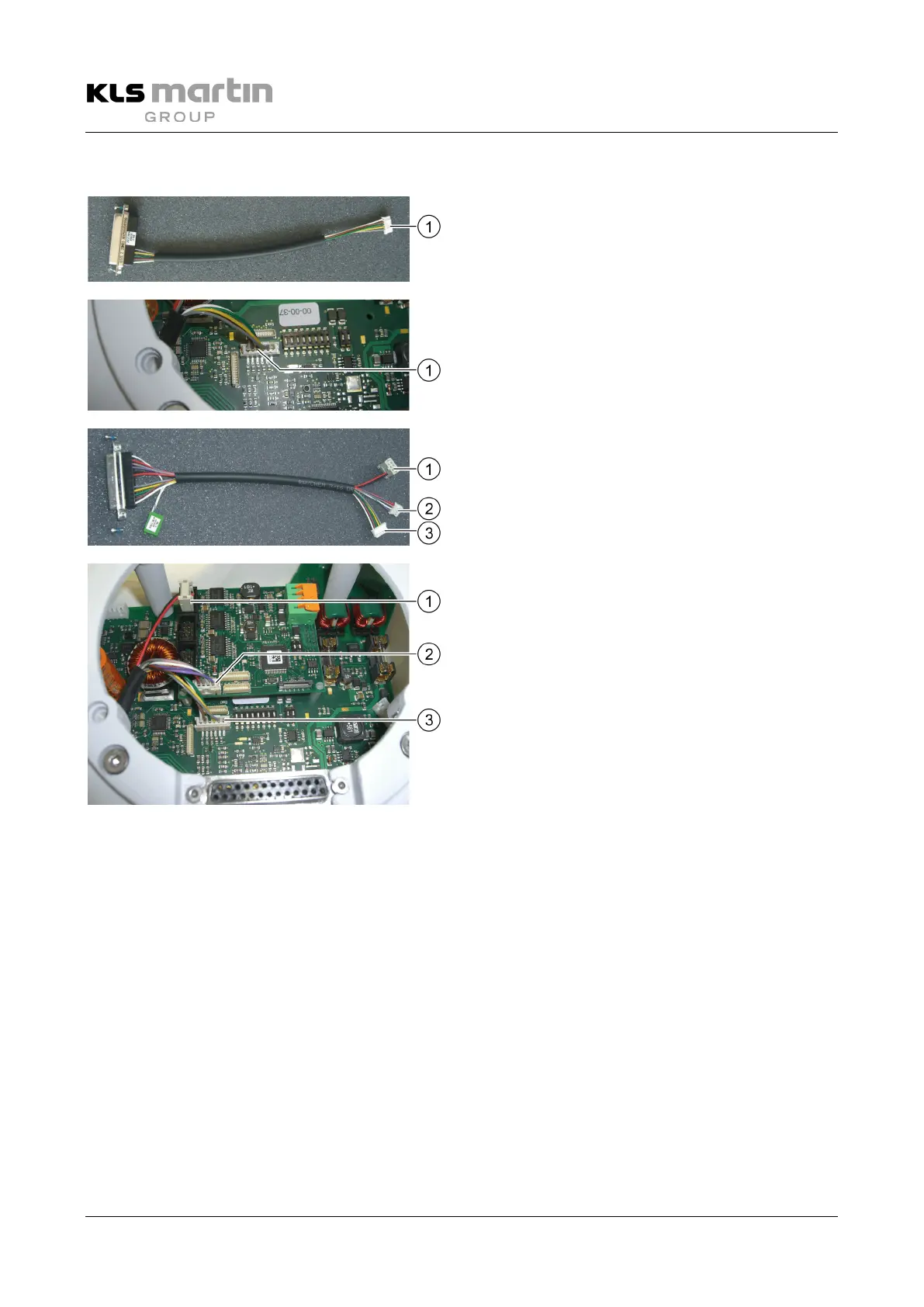

“Standard” cable set with connector (1) for connection
to control electronics board.
Connector (1) on control electronics board.
“Camera” cable set with connectors (1, 2, 3).
Connectors (1, 2, 3) on control electronics board and
surgiCam daughterboard.
For information on how to retrofit the surgiCam
daughterboard, see section 9.12 “Mounting and
Connecting the surgiCam Daughterboard”, page 86.
Such retrofit is possible only if the light has 9-pole
wiring.
