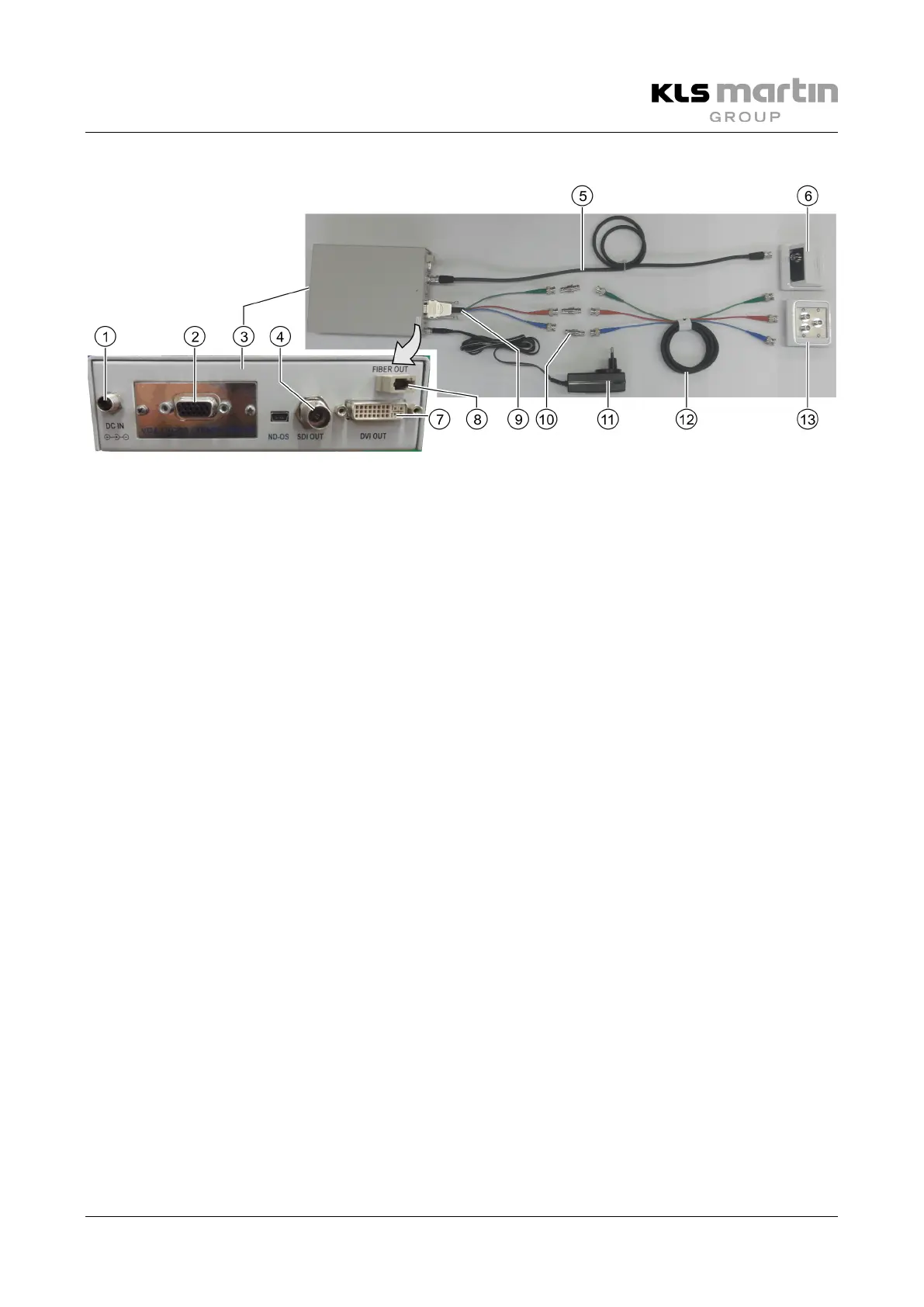

8.1.4 Cabling of the NDS ScaleOR with the Wall Boxes
1
Power supply unit connector
2
VGA IN connector
3
NDS ScaleOR
4
HD-SDI output
5
Video cable connection: HD-SDI, 1xBNC to 1xBNC
6
HD-SDI wall box: 1 x BNC socket
7
DVI output
8
Fiber Out connector
9
VGA connection/adapter: 3xBNC to VGA
10
3 BNC couplers (YPbPr)
11
Power supply unit
12
Video cable: YPbPr, 3xBNC to 3xBNC
13
Wall box: 3 BNC sockets (YPbPr)
The Fiber Out connecting socket is provided on all NDS ScaleOR panels, but it is functionless in some
devices. To check whether this socket has been wired and is thus available for use or not, refer to the serial
number on the underside of the device and the corresponding explanation provided in the NDS manual.
