KLS Martin group marLED E3 - Video Cabling to Monitor and then to Wall Box

Service Manual
Operating Lights marLED® E3, E9, E9i, E15, battery and
marLED® E3 on ceiling tube Ø 110 mm
68 Revision 2

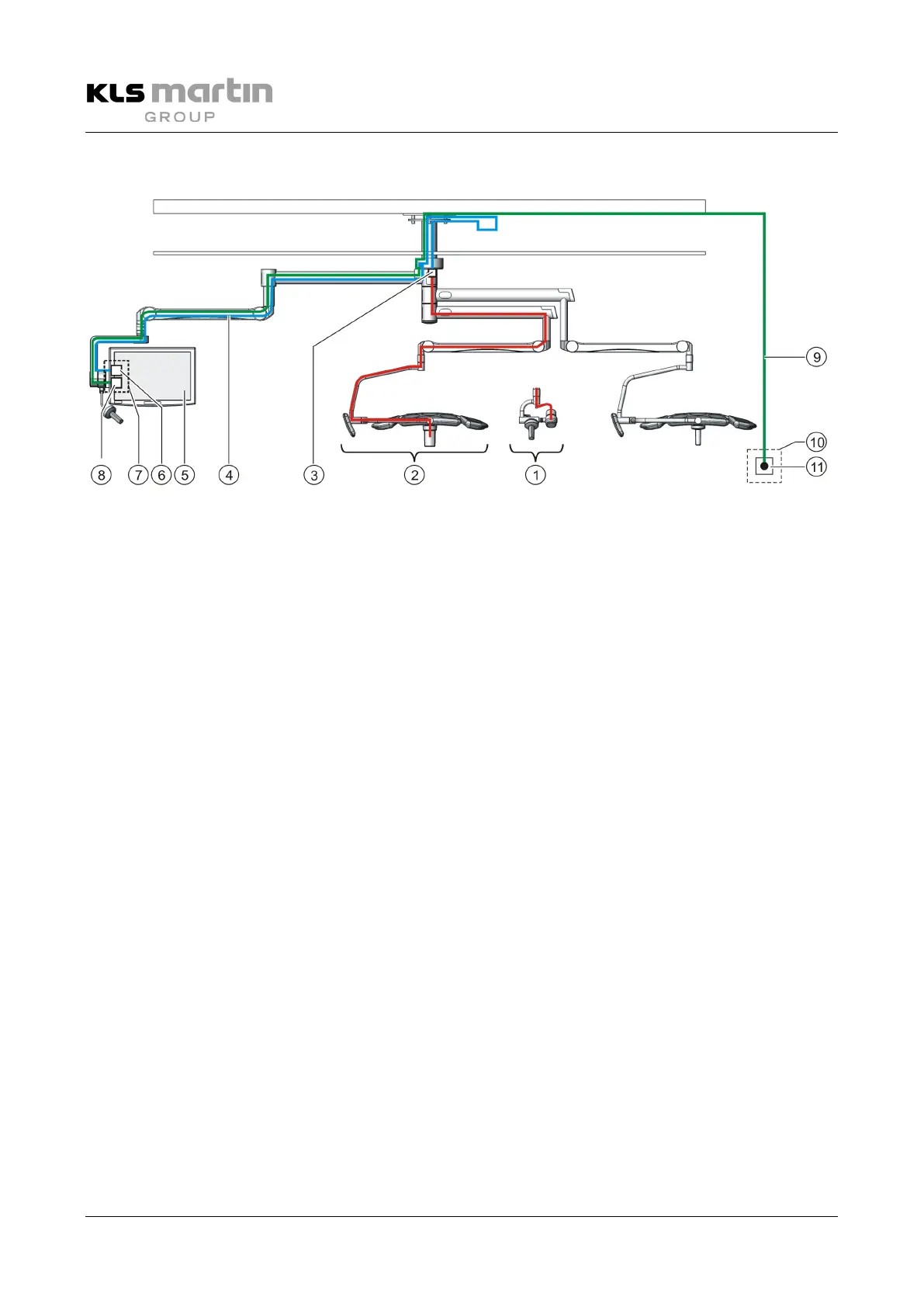

8.1.5 Video Cabling to Monitor and then to Wall Box
1
surgiCam SD/HD on arm, with cable set
2
marLED® V/E series with surgiCam SD/HD installed in handle, with cable set
3
3xmini-coax
4
Video cable: YPbPr, 3xmini-coax to 3xBNC
5
Monitor with REDRIVE (NDS)
6
3 BNC sockets (YPbPr)
7
For board cabling, see following table
8
3 BNC sockets (surgiCam HD only)
9
Video cable: YPbPr, 3xBNC to 3xBNC
10
For wall box cabling, see section 8.1.2 “Video Cabling to Wall Box”, page 65
11
Wall box: 3xBNC sockets
