Service Manual
Operating Lights marLED® E3, E9, E9i, E15, battery and
marLED® E3 on ceiling tube Ø 110 mm
96 Revision 2

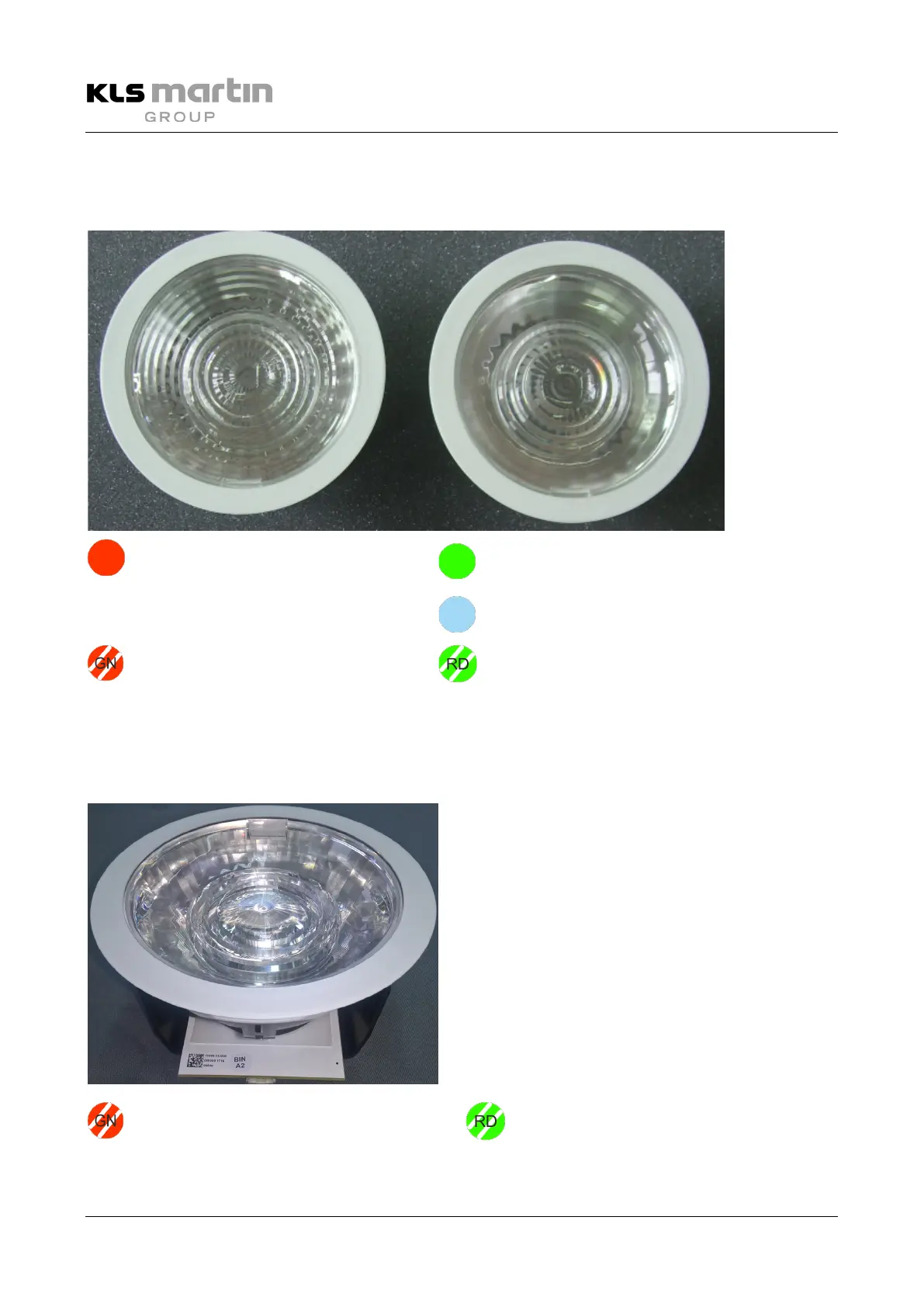

9.16 Installing the Light Engines
9.16.1 Light Engine Variants
Appearance large light field up to HW 39
Appearance narrow light field and
Appearance medium-sized light field up to HW 39
Appearance large light field from HW 40
Appearance narrow light field from HW 40
Light engines for large light fields have a highly
Light engines for small and medium-sized light fields
have a less-structured surface.
Light Engines for small and medium-sized light field from HW 40
Appearance large light field from HW 40
Appearance narrow light field from HW 40
From HW 40, the Light Engine board is printed fully white.
