Service Manual
Operating Lights marLED® E3, E9, E9i, E15, battery and
marLED® E3 on ceiling tube Ø 110 mm
Revision 2 97

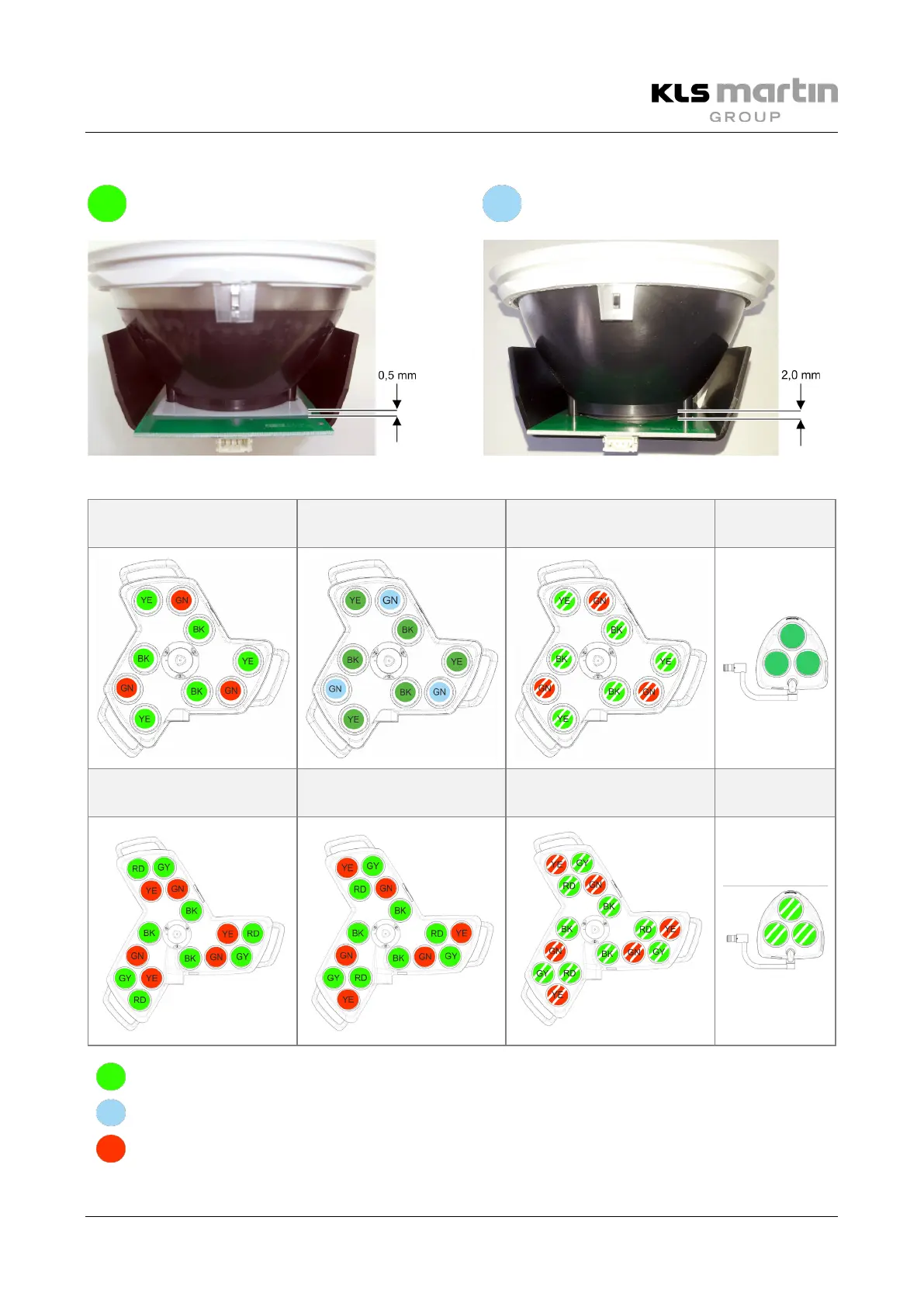

Distinction of Light Engines for narrow and medium-sized light field up to HW 39
Narrow light field:
rectangular spacer film, thickness = 0.5 mm
Medium-sized light field:
Black spacer ring, thickness = 2.0 mm
Up to HW 39, the Light Engine board is printed green.
marLED® E9 up to HW 40
marLED® E9i, SW 08 up to
HW/SW 40
marLED® E9i from HW 40
marLED® E3 up
to HW 09
marLED® E15 up to HW 02 marLED® E15 from HW 03 marLED® E15 from HW 40
marLED® E3
from HW 10
narrow light field
Light engines matched to socket housing colors, see section 11.2.5 “Cable
Harness from Control Electronics Board to Light Engine of marLED® E9(i)”,
page 113
medium-sized light field
large light field
