KLS Martin group marLED E3 - Central Bearing Shaft;Tracking Arm;Spring Arm Wiring; Central Bearing Shaft (Slip Rings)

Service Manual
Operating Lights marLED® E3, E9, E9i, E15, battery and
marLED® E3 on ceiling tube Ø 110 mm
Revision 2 53
7 Central Bearing Shaft/Tracking Arm/Spring Arm Wiring
7.1 Central Bearing Shaft (Slip Rings)
7.1.1 Replacing the Contact Block
The contact block must be replaced in the event of:
• tracking arm replacement
• system conversion
• slip-ring connection wire breakage
• slip ring replacement
Installing the contact block using the mounting tool supplied!
•
Make sure that the orange tongues (1) of the contact carrier are well positioned on the corresponding
yellow slip rings (3).
•
Use the mounting tool (2, REF 08-666-26-04).

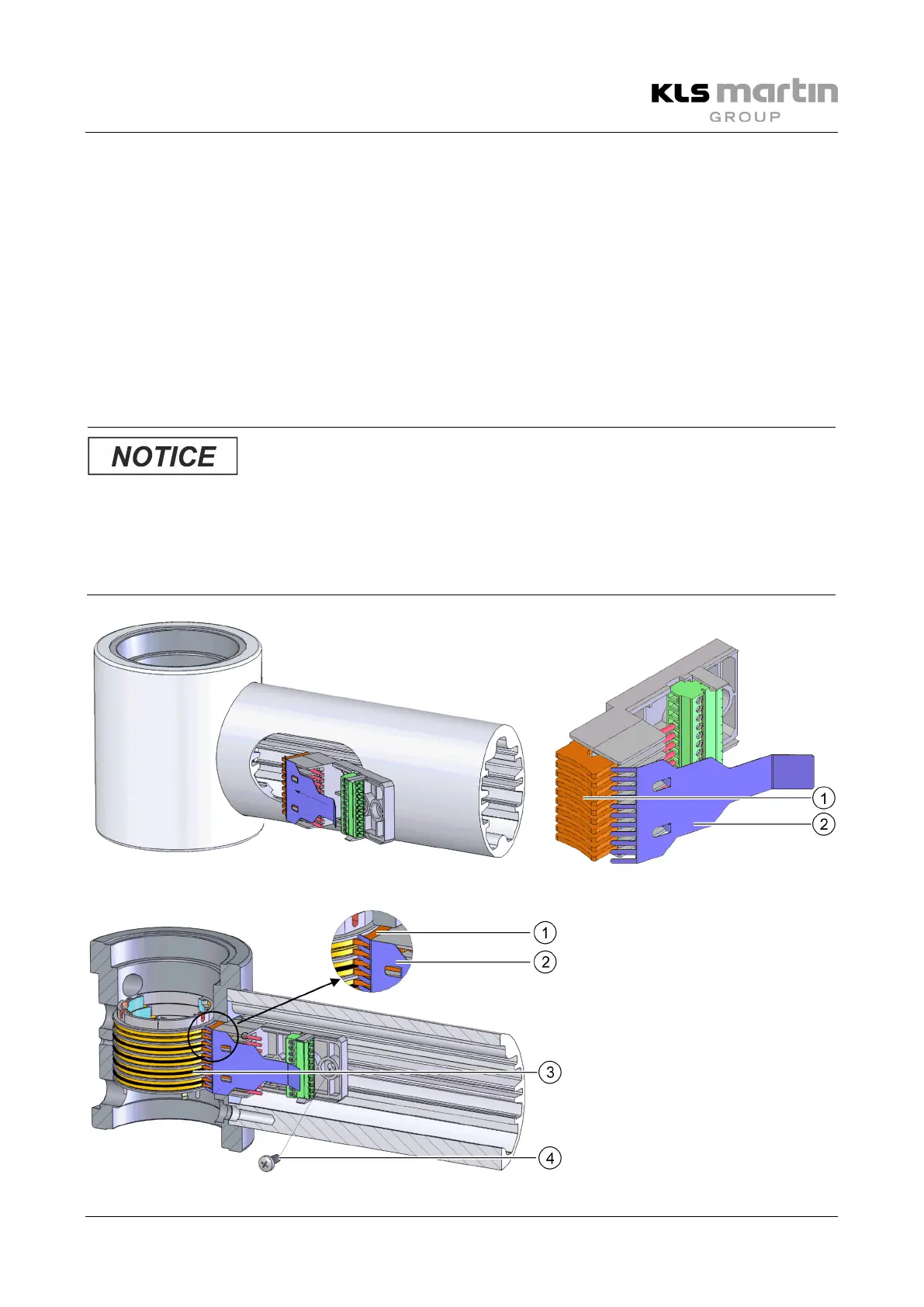

Fig. 7-1: Contact block on tracking arm
1
Contact tongues on contact carrier
2
Mounting tool
3
Slip rings
4 Cross-recessed head screw for
contact block fixation
• Reassemble the contact block
and the spring arm one-to-one.
