KLS Martin group marLED E3 - Video Cabling to Monitor

Service Manual
Operating Lights marLED® E3, E9, E9i, E15, battery and
marLED® E3 on ceiling tube Ø 110 mm
64 Revision 2

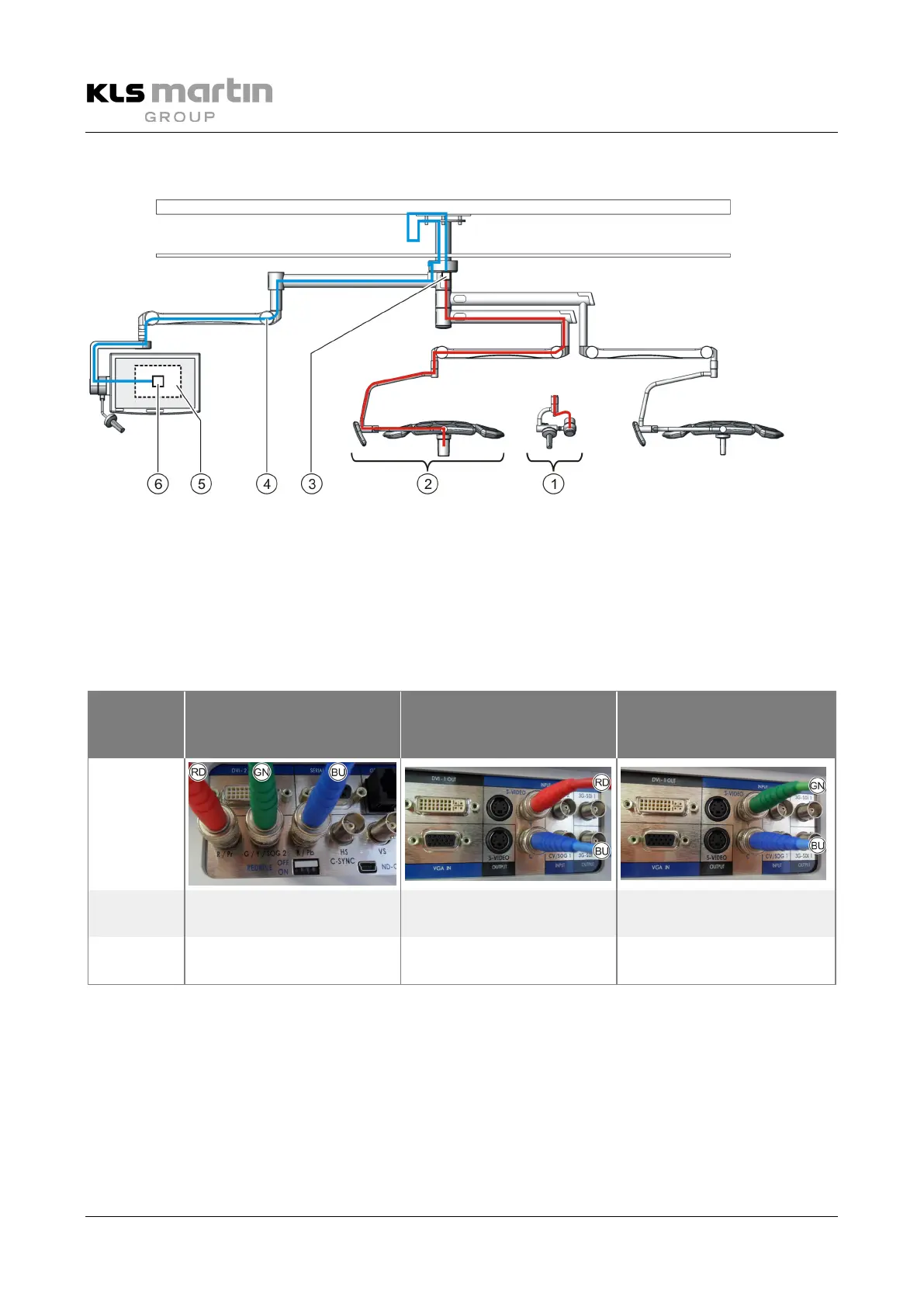

8.1.1 Video Cabling to Monitor
1
surgiCam SD/HD on arm, with cable set
2
marLED® V/E series with surgiCam SD/HD installed in handle, with cable set
3
3xmini-coax
4
Video cable, 7.5 m: YPbPr, 3x mini-coax to 3x BNC
5
For monitor cabling, see following table
6
3xBNC sockets
Description for NDS monitors
Cabling
surgiCam HD
- in handle
- on arm
surgiCam SD
- in handle
surgiCam SD
- on arm
Monitor (5)
connections
Monitor
input
RD=Pr/GN=Y/BU=Pb RD=Y/GN=–/BU=C RD=–/GN=Y/BU=C
Additional
settings
REDRIVE (NDS) DIP switch OFF Green BNC plug not connected Red BNC plug not connected
