9.2 Light Head Overview

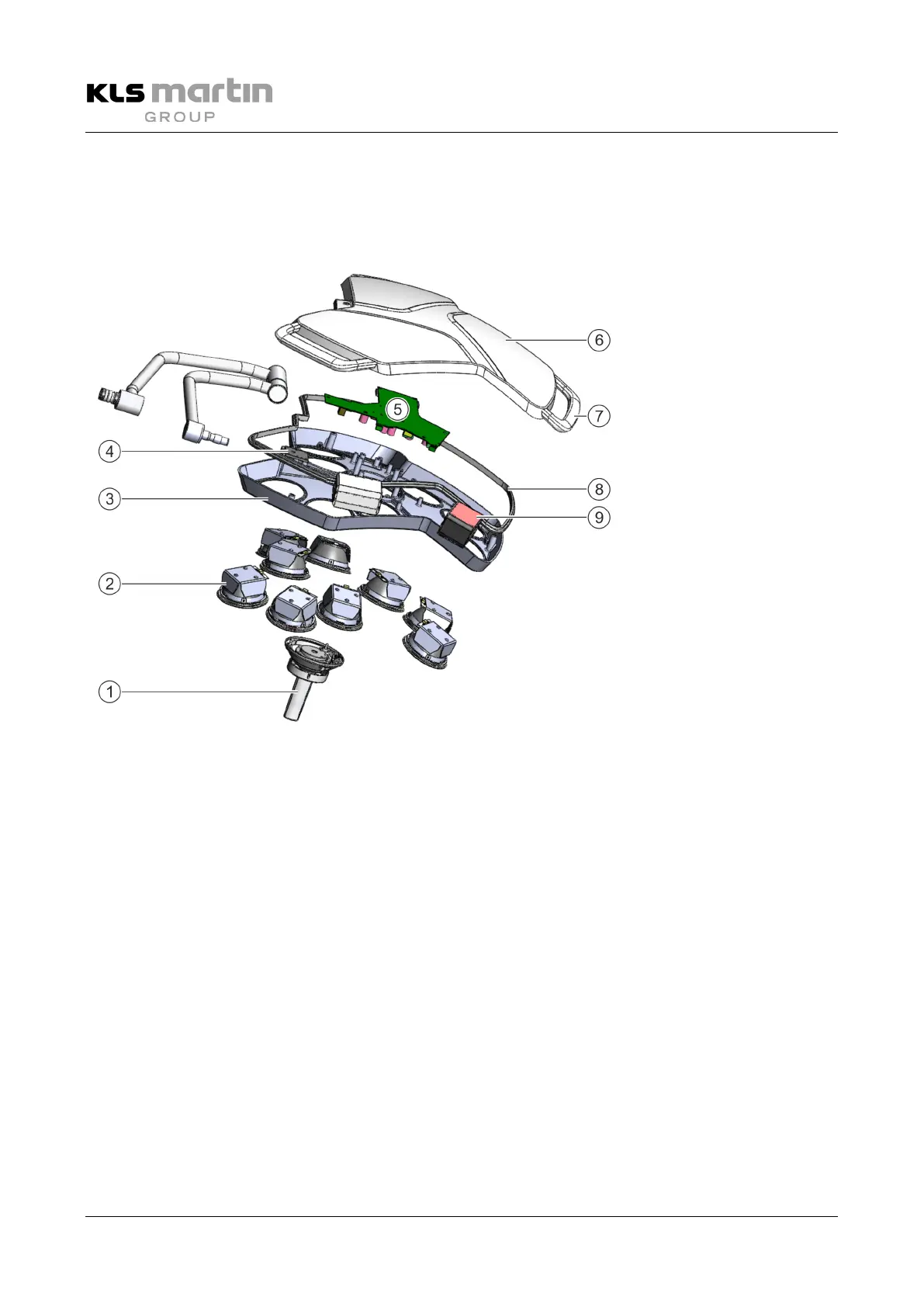

Overview of marLED® E3 light head: see Service Manual for operating light marLED® E3.
marLED® E9(i), option battery
1
Handle assembly
2
Light Engine
3
Bottom part of housing
4
Bearing block
5
Control Electronics Board
6
Cover
7
Handle
8
Gasket
9
Battery pack, optional
