Operating Lights marLED® E3, E9, E9i, E15, battery and
marLED® E3 on ceiling tube Ø 110 mm
84 Revision 2

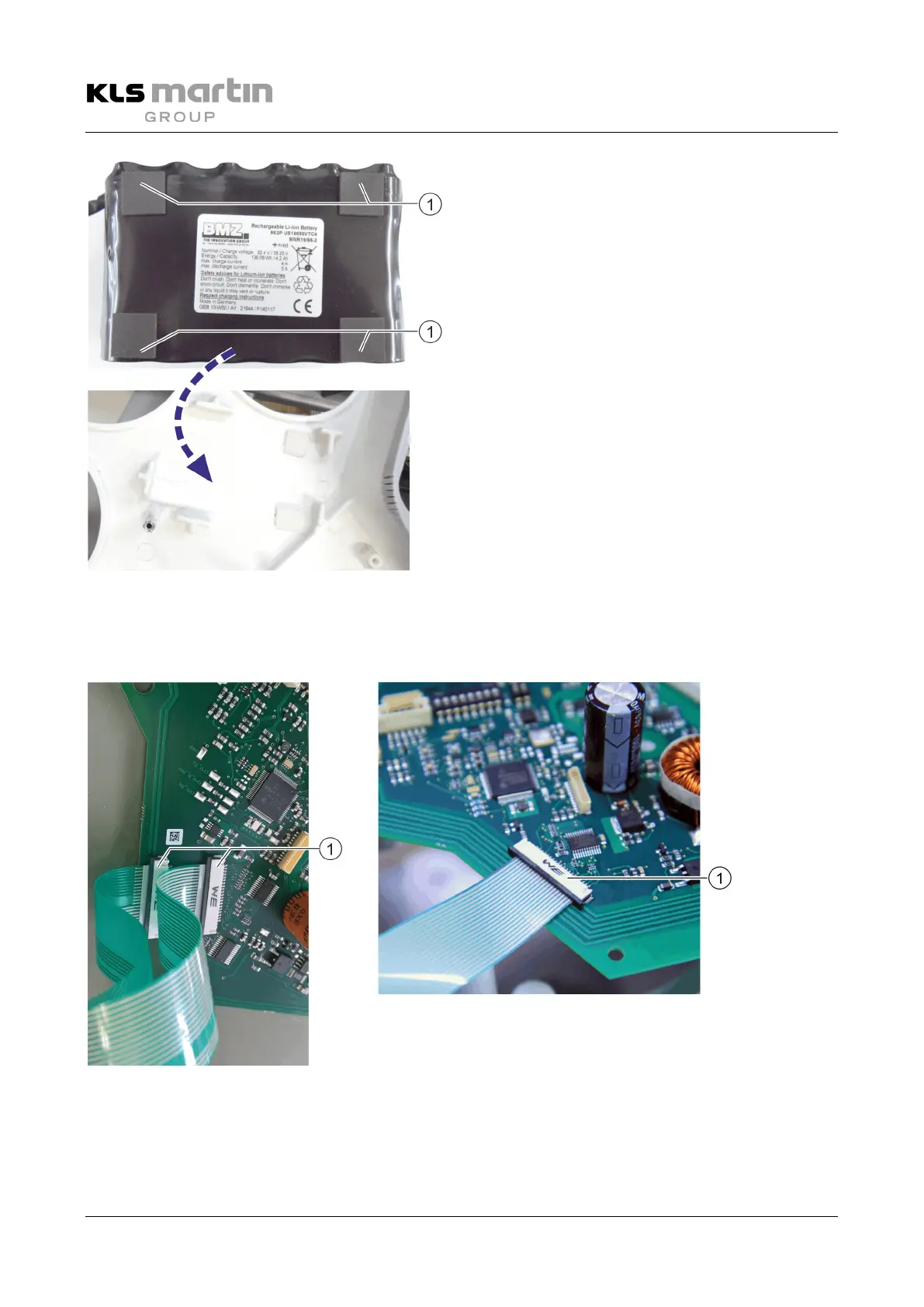

• Attach the 4 adhesive strips (1) to the
supporting surfaces of the battery packs.
• Place the battery packs into the retaining
frames provided in the bottom shell of the
housing.
• Wait with connecting the battery cables until
the light head has been closed again, see
section 9.6 “Connecting the Battery Cable
(marLED® E battery)”, page 77.
9.11 Replacing the Control Panel Foil
from HW 32
up to HW 31
• Open the light housing, see section 9.8 “Opening the Light Housing”, page 79.
The connection(s) (1) for the control panel foil are/is located at the upper corner of the board of the control
electronics.
