Service Manual
Operating Lights marLED® E3, E9, E9i, E15, battery and
marLED® E3 on ceiling tube Ø 110 mm
Revision 2 89

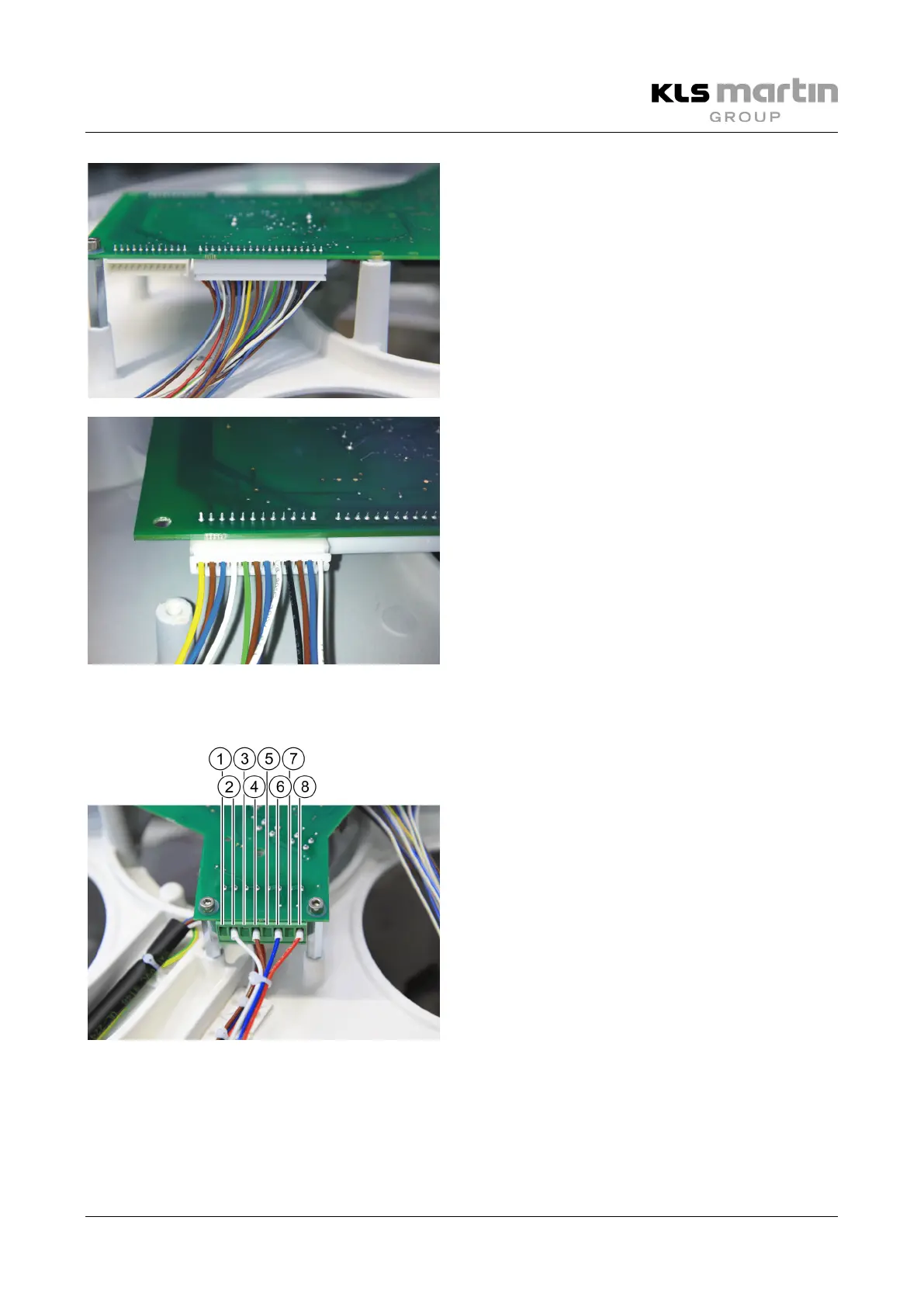

Light engine connector of marLED® E15
Light engine connector of marLED® E9
9.13.2 Connection terminal for Supply Voltage/CAN Bus
Connection terminal supply voltage/CAN
Pin
Color
Signal/Connection
2
WH
CAN H
4
BN
CAN L
6
BU
GND, CAN GND
8
RD
VDC+ 18–36 VDC TRMS
