KLS Martin group marLED E3 - Video Cabling to Wall Box

Service Manual
Operating Lights marLED® E3, E9, E9i, E15, battery and
marLED® E3 on ceiling tube Ø 110 mm
Revision 2 65

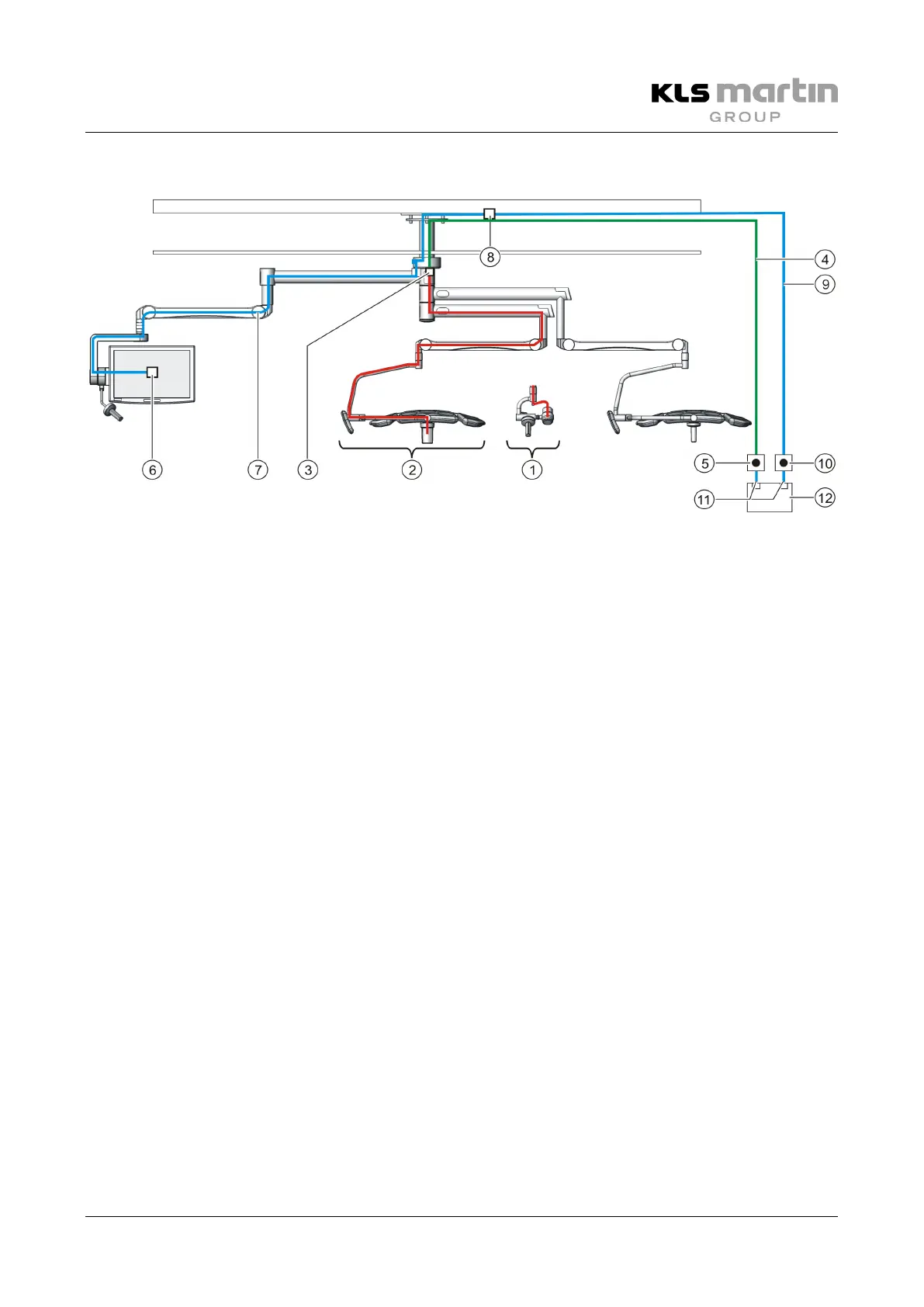

8.1.2 Video Cabling to Wall Box
1 surgiCam SD/HD on arm, with cable set
2
marLED® V/E series with surgiCam SD/HD installed in handle, with cable set
3
3xmini-coax
4 Video cable: YPbPr, 3x mini-coax to 3x BNC
5
Wall box: 3xBNC sockets, see section 8.1.3 “Cabling of the Wall Box surgiCam”, page 66
HD-SDI video signal routing to monitor (optional)
6
HD-SDI BNC socket on monitor
7 Video cable: HD-SDI, 1x BNC to 1x BNC
8
BNC connection
9
Video cable: HD-SDI, 1x BNC to 1x BNC
10 HD-SDI wall box: 1xBNC socket
11
For NDS ScaleOR cabling,
see section 8.1.4 “Cabling of the NDS ScaleOR with the Wall Boxes”, page 67
12
NDS ScaleOR HD-SDI signal converter
