Service Manual
Operating Lights marLED® E3, E9, E9i, E15, battery and
marLED® E3 on ceiling tube Ø 110 mm
Revision 2 99

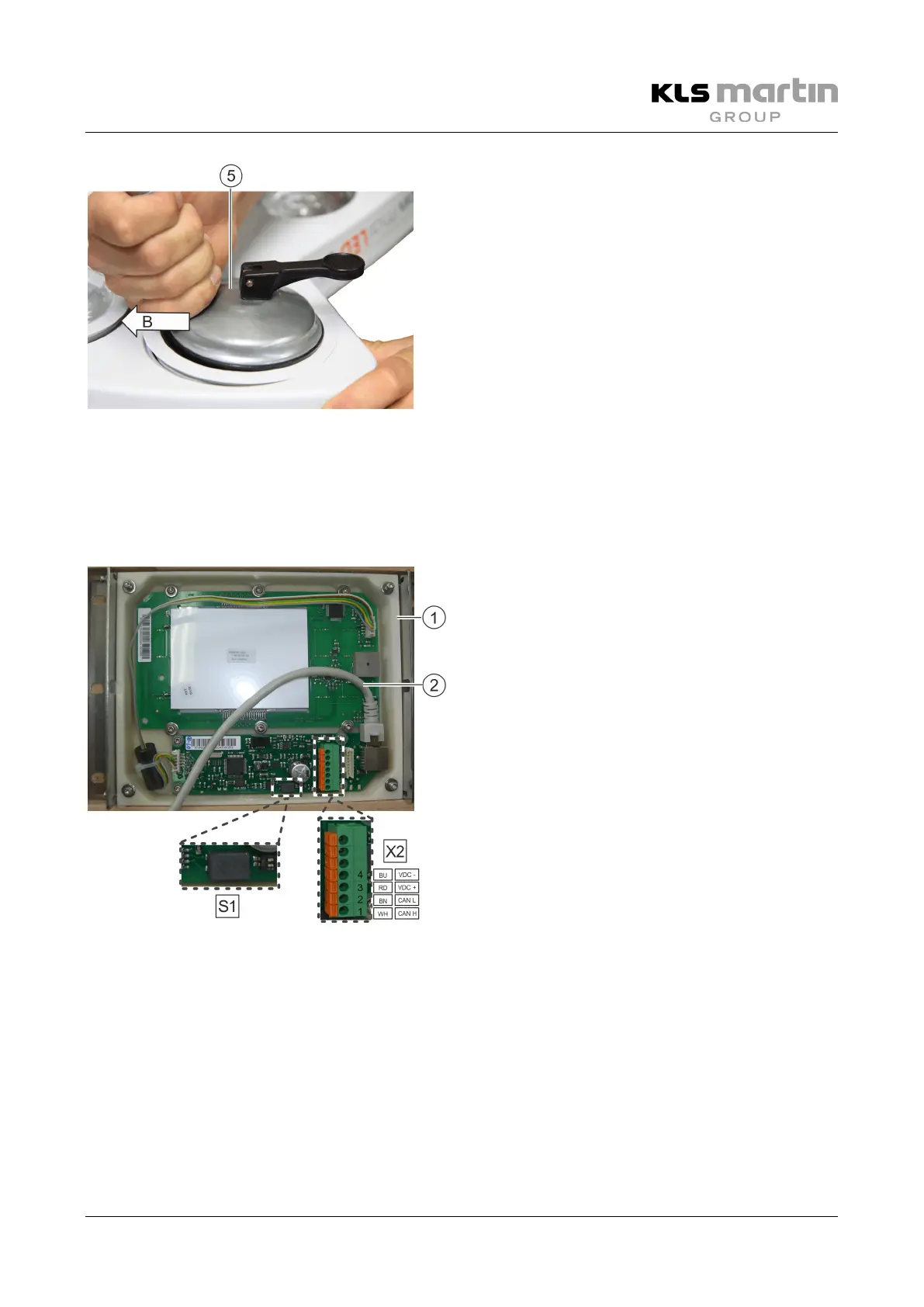

• Push the cover glass (5) into the opening in
direction (B) until it snaps into place.
• Check the seal of the cover glass for correct fit.
This completes the light engine mounting process.
10 Wall Control Panel
10.1 Connecting a Wall Control Panel from HW 37
The wall control panel from HW 40 is equipped
with an RJ45 connection.
