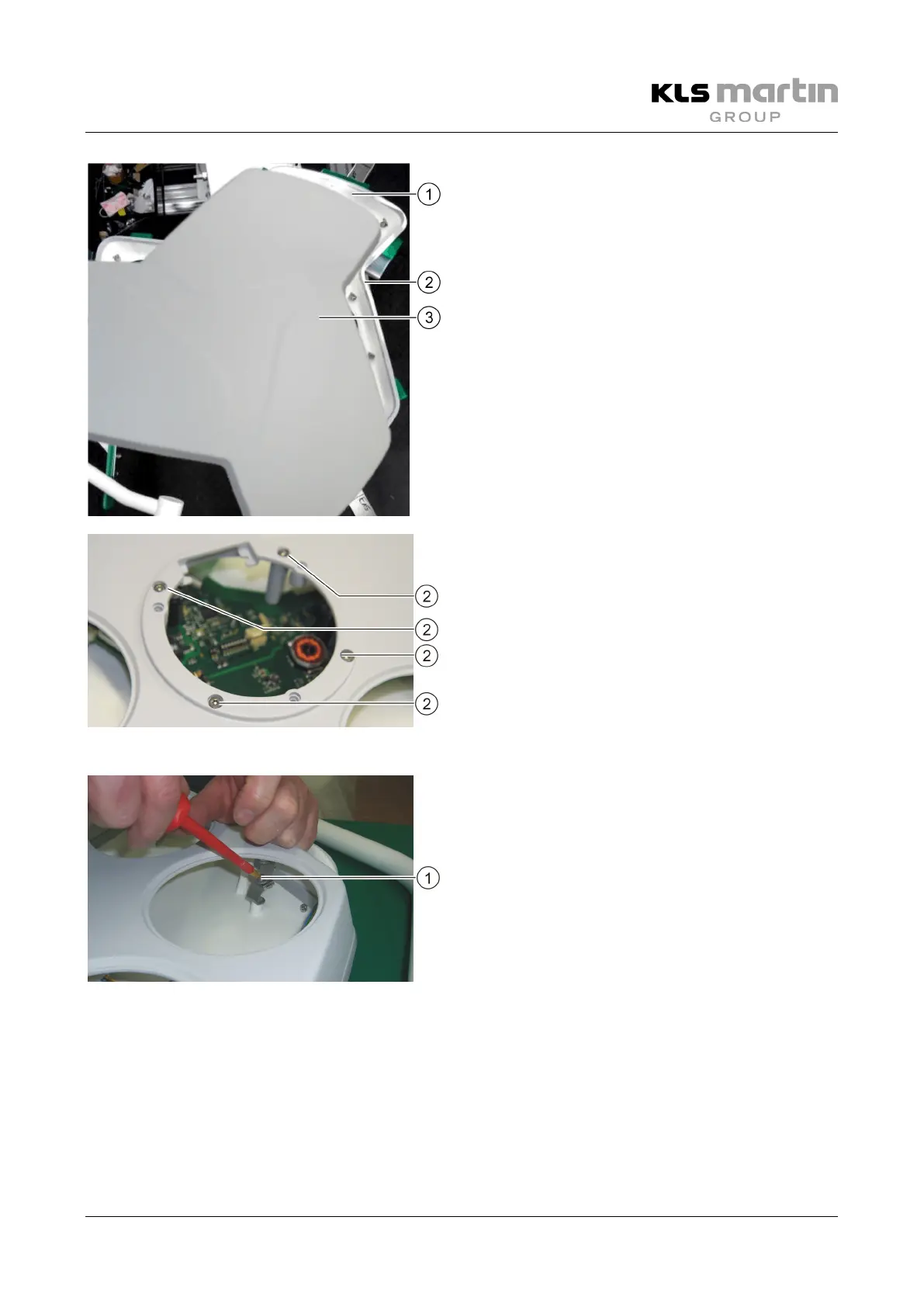

• Make sure that the cables will not get pinched
when installing the cover.
• Verify that the gasket (2) attaches well all
around the bottom part (1) of the housing.
• Put cover (3) in place on the bottom part (1) of
the housing.
• Turn the light head upside down.
• Insert the central screws (2).
• Turn the lugs so that the screws can be easily
accessed with the screwdriver.
• Insert and tighten the screws (1) of the light
housing (1).
• Install all light engines, see section 9.16
“Installing the Light Engines”, page 96.
