Operating Lights marLED® E3, E9, E9i, E15, battery and
marLED® E3 on ceiling tube Ø 110 mm
Revision 2 149
3. Checking the tracking arm system
Tools/aids
Caliper gauge, flat-tip screwdriver, cross-tip screwdriver, hexagon socket (Allen) wrench, contact spray,
grease (e.g. Renolit AS), threadlocker (e.g. DELO-ML® 5249)
a) Checking and securing the fixing screws

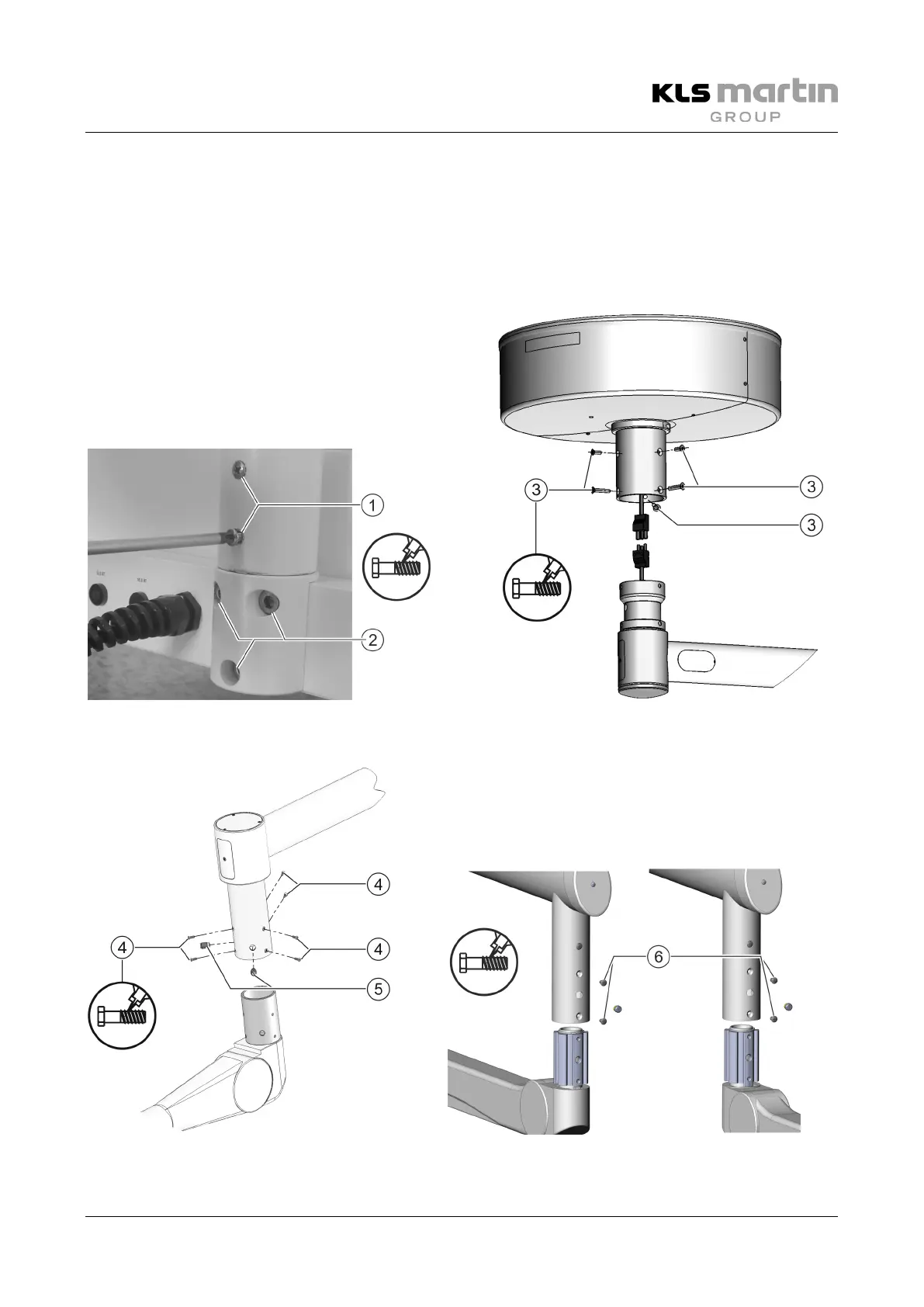

Fig. 13-1: Stand tube
Fig. 13-2: Ceiling tube
Fig. 13-3: Onda Space/Onda Space LC/AC3000
Fig. 13-4: AC2000
