Service Manual
Operating Lights marLED® E3, E9, E9i, E15, battery and
marLED® E3 on ceiling tube Ø 110 mm
60 Revision 2

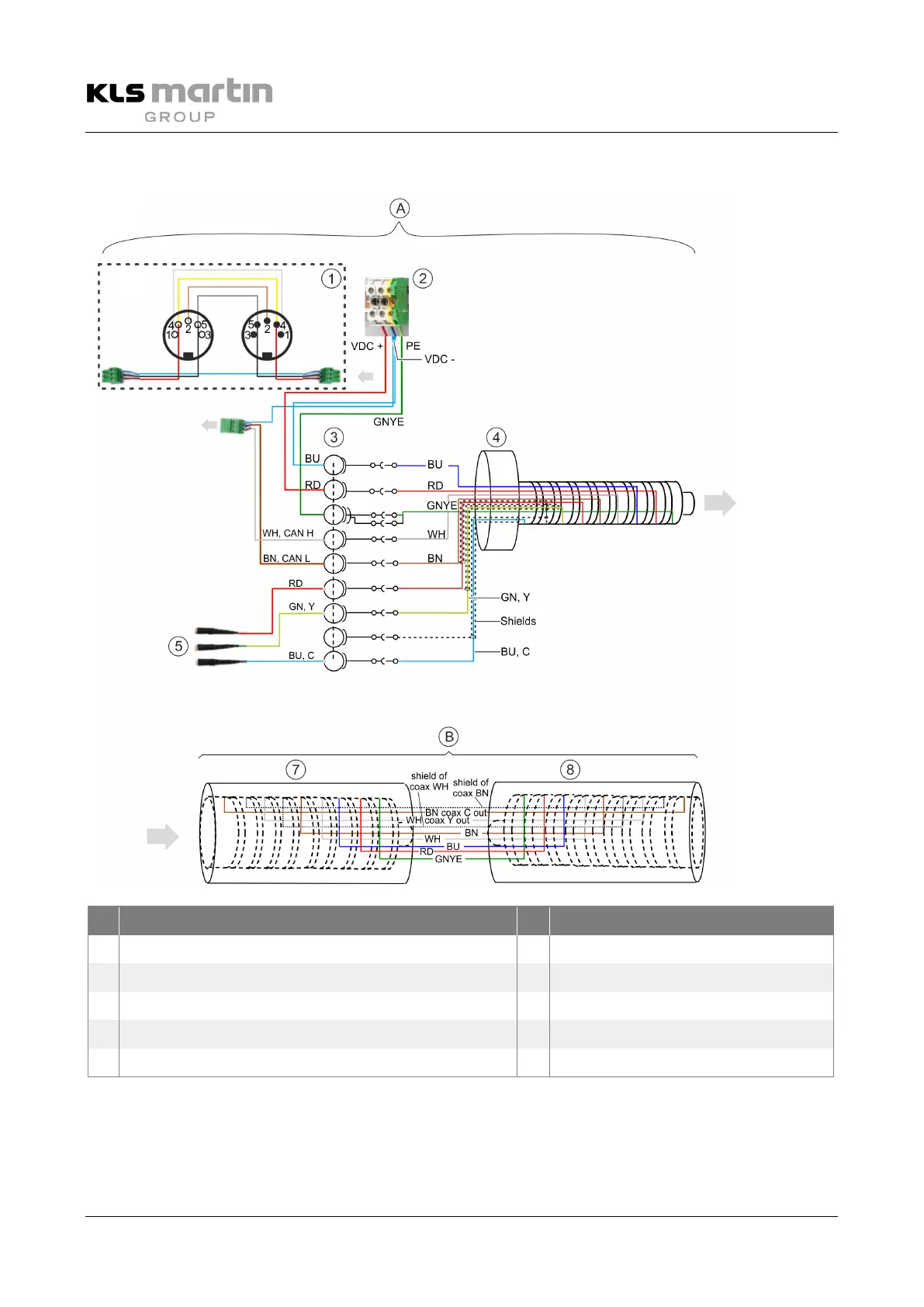

Interim status up to HW 30 – HD wired with surgiCam HD or surgiCam SD
A Ceiling tube, tracking arm B Spring arm
1 Adapter cable on ceiling tube 7 Slip-ring socket to tracking arm
2 Terminal block on ceiling tube 8 Slip-ring socket to light head
3 Slip-ring plug-and-socket connection in tracking arm
4 Slip-ring socket to spring arm
5 3x coupler for video signals
