Koden MDC-7010 - 2.9 Change transmission pulse width (SP;LP)

MDC-7000/7900 Series Chapter 2 Radar Basic Operation
0093169010-10
2-13

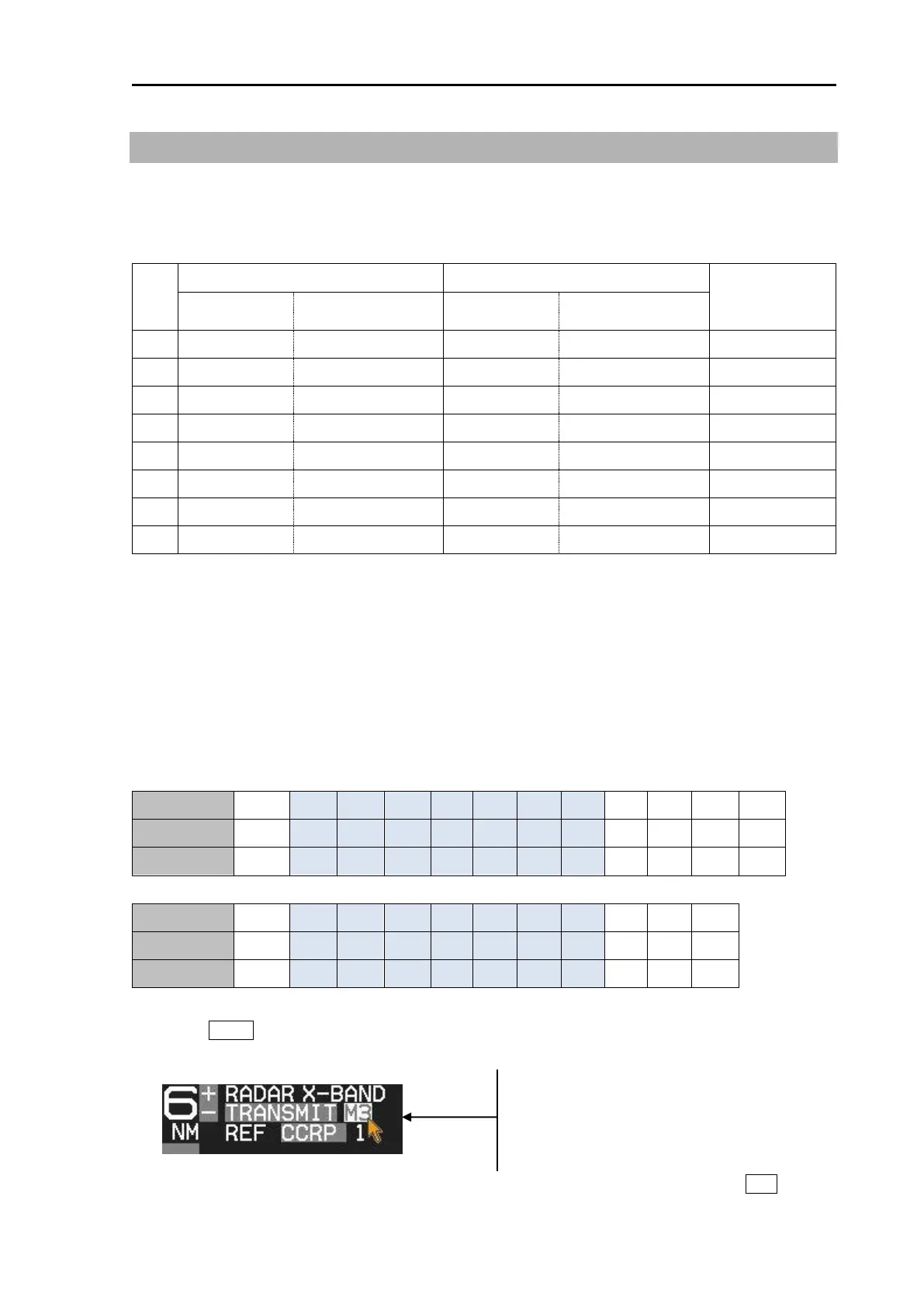

2.9 Change transmission pulse width (SP/LP)
This radar provides a function capable of achieving suitable target detection by manually changing the
transmission pulse width.
Eight different pulse widths are available.
6kW/12kW
25kW
IF Band width
Pulse width
Pulse repetition
frequency
Pulse width
Pulse repetition
frequency
S1
0.08μs
2500Hz
0.08μs
2000Hz
15MHz
S2
0.08μs
2500Hz
0.08μs
2000Hz
15MHz
M1
0.25μs
2000Hz
0.3μs
1300Hz
15MHz
M2
0.25μs
2000Hz
0.3μs
1300Hz
3MHz
M3
0.5μs
1000Hz
0.6μs
800Hz
3MHz
L1
0.7μs
700Hz
0.8μs
600Hz
3MHz
L2
1.0μs
500Hz
1.2μs
470Hz
3MHz
L3
1.0μs
450Hz
1.2μs
400Hz
3MHz
The short (narrow) pulse width used in short range has high resolution and is effective for dense
targets.
The long (wide) pulse width used in long range has high gain (sensitivity) and is effective for detecting
small targets.
Two different pulse widths are set by default in the following ranges, 0.75NM, 1.5NM, 3NM and 6NM.
Ranges 0.25NM and below, and 12NM and above are setup with same pulse width in SP and LP.
Note: Refer to 2.29 Pulse width to set pulse width.
6kW/12kW
Range(NM)
0.125
0.25
0.5
0.75
1.5
3
6
12
24
32
48
64
SP mode
S1
S1
S1
S1
S2
M1
M3
L2
L2
L2
L2
L3
LP mode
S1
S1
S1
S2
M1
M3
L1
L2
L2
L2
L2
L3
25kW
Range(NM)
0.125
0.25
0.5
0.75
1.5
3
6
12
24
48
96
SP mode
S1
S1
S1
S1
S2
M1
M3
L2
L2
L2
L3
LP mode
S1
S1
S1
S2
M1
M3
L1
L2
L2
L2
L3
1 Press SP/LP key. Two different pulse widths are toggled by each key press.
Current pulse width is shown at the upper left of the display.
Note: Pulse width can be changed directly at the upper left of the display, with cursor and ENT key.
