Antenna position mark ON or OFF
1 Press MENU key to display “Menu”
Select [DISPLAY] => [ANT POSN] => select [ON] or [OFF], and press ENT key.
Note: Antenna position mark is displayed at transmission on condition.

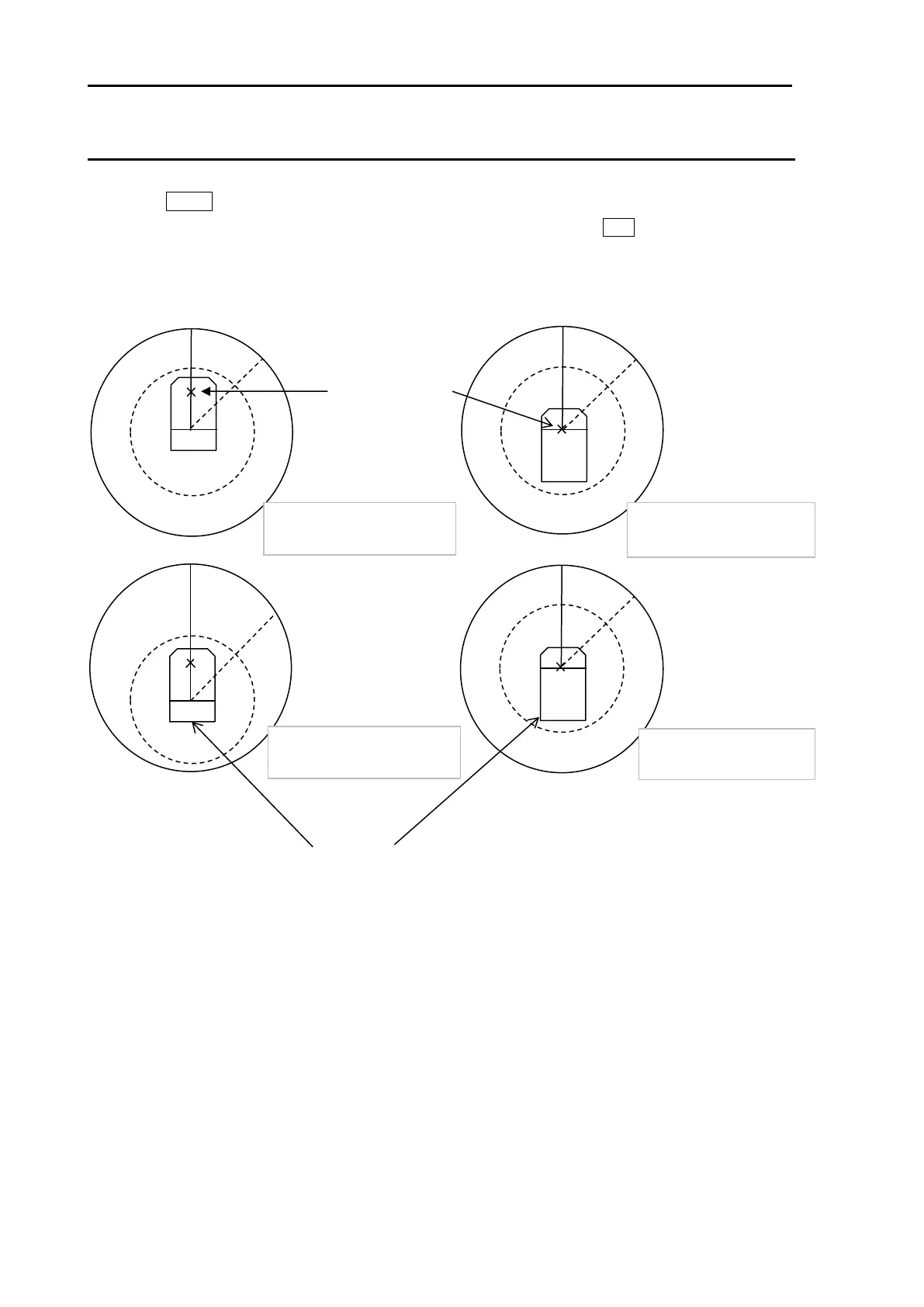

Ref. position: CCRP
Display center: CCRP
Ref. position: ANT
Display center: CCRP
Ref. position: ANT
Display center: ANT
Ref. position: CCRP
Display center: ANT
Antenna
position mark
Ship
outline
(Refer to 2.35 Setup
own ship outline.)
(Refer to 2.34 Setup
own ship outline.
