Koden MDC-7010 - Measurement Distance;Bearing by ERBL

Chapter 2 Radar Basic Operation MDC-7000/7900 Series
0093169010-10
2-30

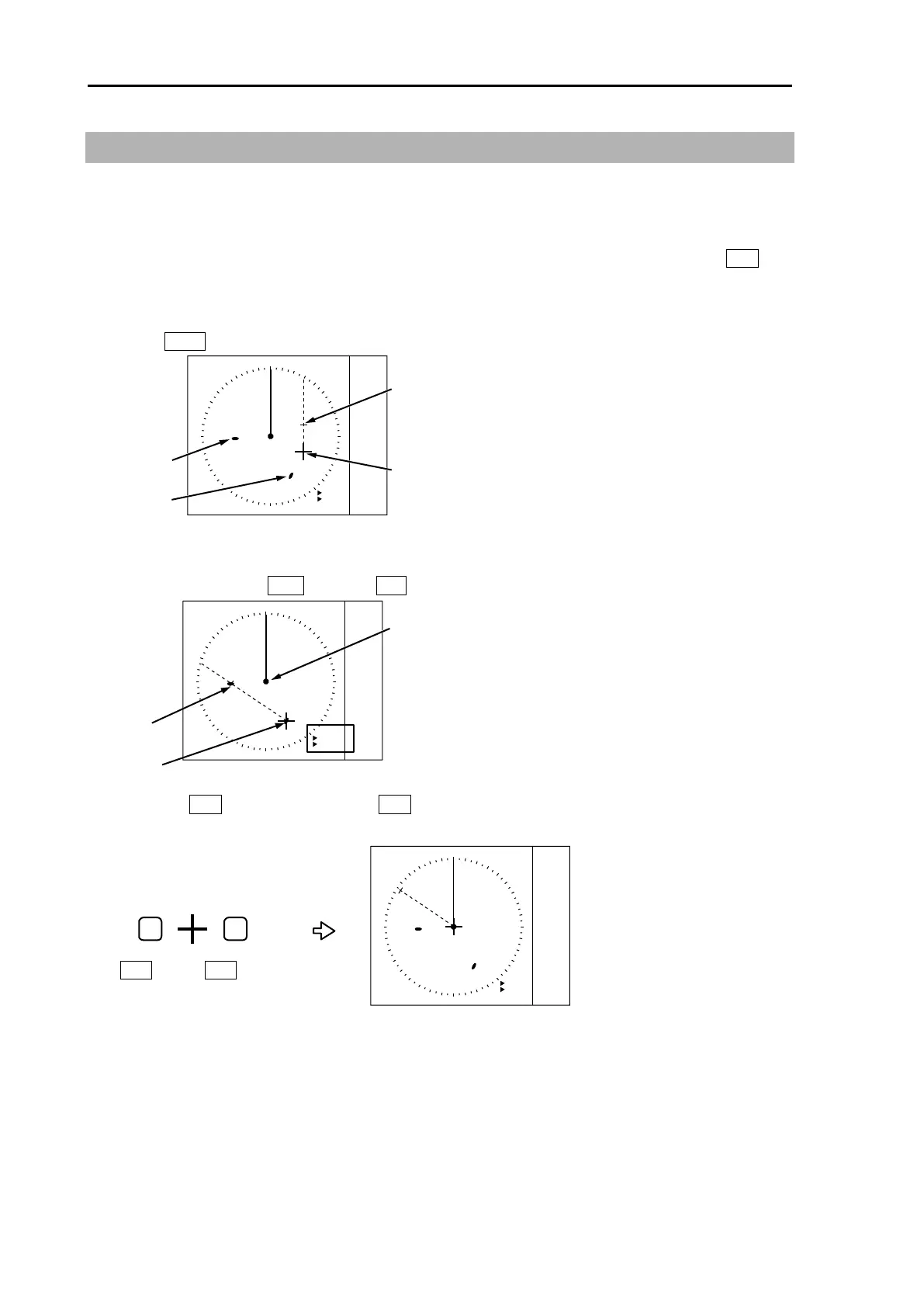

2.16 Measurement distance/bearing by ERBL
The given point of distance and bearing can be measured with the cursor as follows.
Measurement of distance and bearing from reference point can be performed by moving cursor to
reference point position.
[Bearing mode] can be changed directly in the lower right of the display, with trackball and ENT key,
without using menu function.
1 Press ERBL key and ERBL is displayed.
ERBL
000.0
°
1.00NM
ERBL
REL
CURSOR
Target B
Target A
2 By moving cursor to target A, measurement of distance and bearing from target A to target B can
be obtained by using VRM knob and EBL knob.
ERBL
304.2
°
2.82NM
REL
Own ship
3 Pressing ENT key (while pressing OFF key) returns cursor to the reference point position.
Therefore, it is possible to measure the distance/bearing from the reference point position.
ERBL
304.2
°
2.82NM
REL
OFF
OFF key
ENT
ENT key
.
Target A
Target B
