Koden MDC-7010 - For N up (North up Mode)

Chapter 2 Radar Basic Operation MDC-7000/7900 Series
0093169010-10
2-16
000
N
Land
Target 1
Target 2
Heading

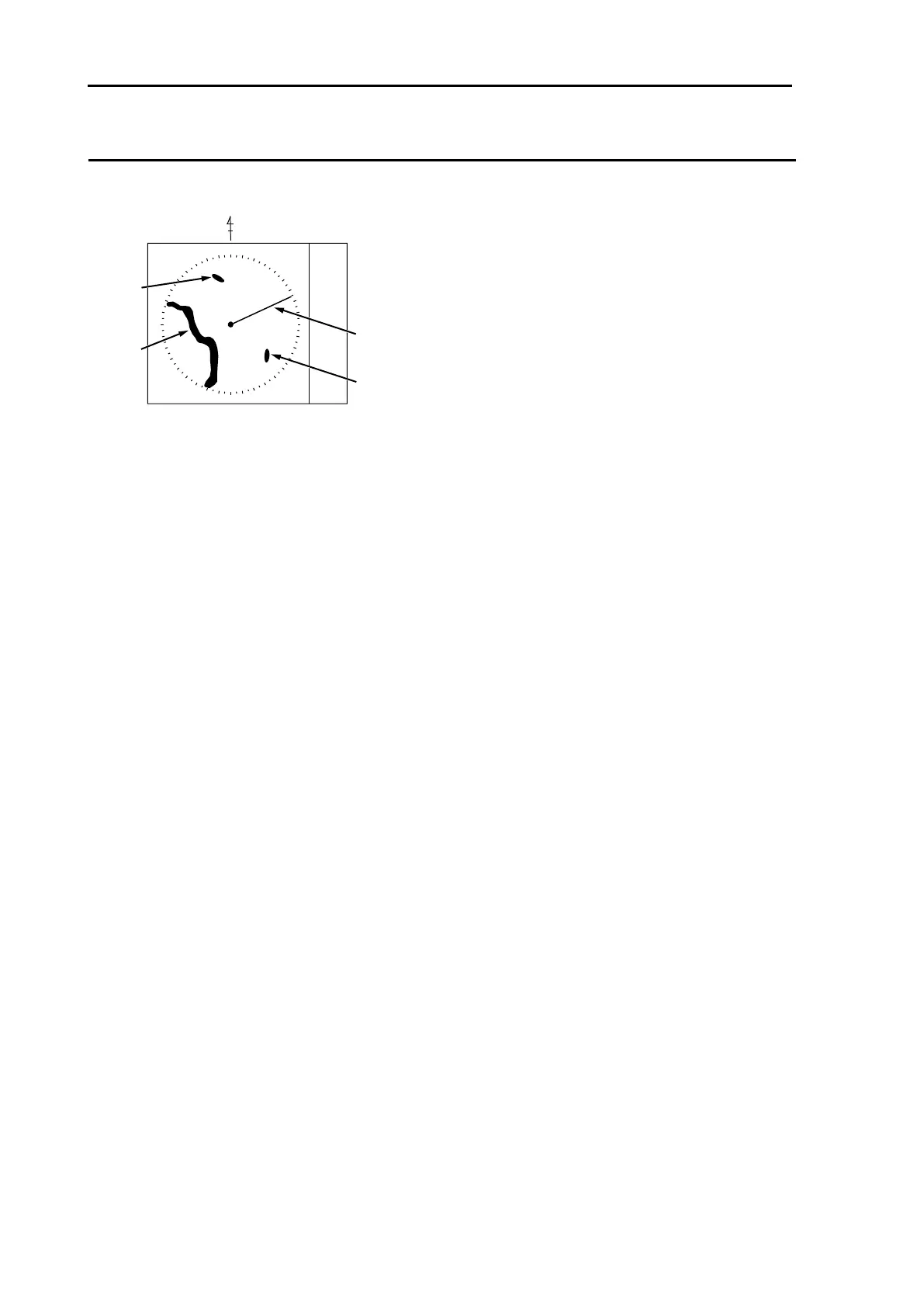

For N UP (North up mode)
This mode always keeps true north at the top of the display.
A north oriented representation makes it easy to reference with a chart.
Note:
• This is an azimuth-stabilized presentation in which north on the bearing scale remains fixed vertically
above the CCRP.
• The heading line points from the CCRP to own ship’s referenced heading on the bearing scale.
• The true bearing of any target on the display is measured from north.
