DUAL MASTER: Connection topology is the same as the above-mentioned INDEPENDENT
(MASTER) and INDEPENDENT (SLAVE), and the control cable is necessary. By this
way, either radar can control the antenna. The radar to which the antenna is
connected is DUAL (MASTER).
DUAL SLAVE: The radar to which the antenna is not connected is DUAL (SLAVE).
CROSS: In this status, there are two radars to which each antenna is connected. In this status, the
antenna that is not connected to its own radar is used.
MONITOR: In this status, the antenna is not connected, and a simulator is connected and used.
Note: When you use inter-switch mode at first time, please set Heading (HL OFFSET), TX DELAY and
ANT CABLE adjustment of each antenna. (Refer to 4.1.2, 4.1.3 and 4.1.5 of Installation manual)
These setting data are memorized in non-volatile memory, and applied automatically when each
antenna is selected.

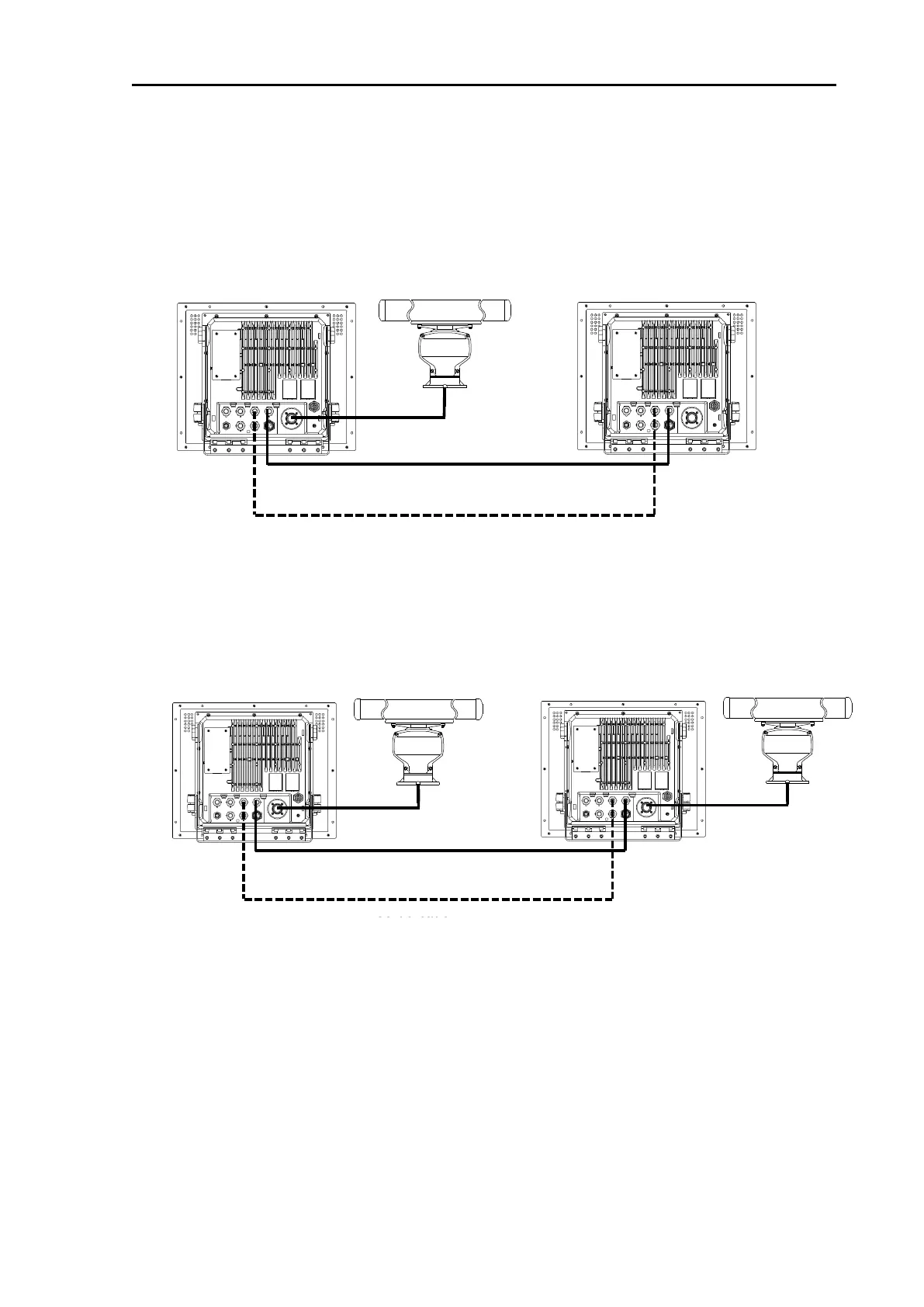

Remote cable
CW-561-**M
DUAL MASTER Control cable DUAL SLAVE
CW-373-**M
Remote cable
CW-561-**M
Control cable
CROSS CW-373-**M
