Chapter 3 Alarm MDC-7000/7900 Series
0093169010-10
3-2

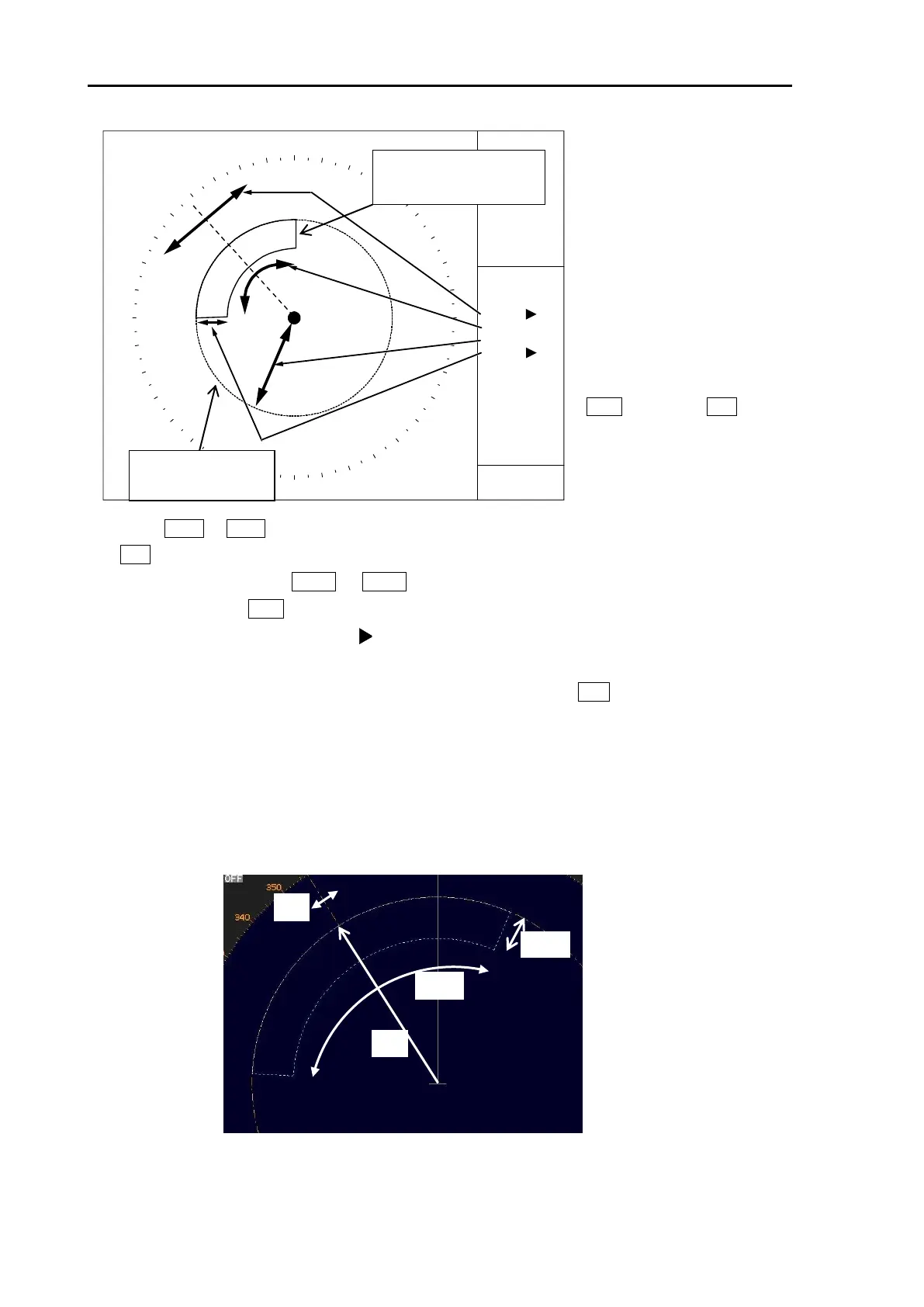

2 Press EBL1 or EBL2 key, and select an item to be set between [BRG REL] and [WIDTH] by using
EBL knob.
In the same way, press VRM1 or VRM2 key, and select an item to be set between [RNG] and
[DEPTH] by using VRM knob.
The selected item is shown with a symbol at the left of numerical indication at the echo alarm in
the menu display.
3 When the setting of the echo alarm area is completed, then press ENT key, orange dashed circle
line will disappear, and echo alarm will be active.
4 There are additional items, [ALARM] => [DETECT LEVEL] => select [1 to 15]
It designates echo strength to determine an alarm sound.
1 means lowest signal echo level, 15 means highest signal echo level.
When the level is set too low, noise may cause false alarm.
Note: [DETECT LEVEL] is applied to the map area alarm function of next section.
Note: If the echo alarm area is set in the whole circumference, [WIDTH] needs to be set the 0.0˚
or 360.0˚.
WIDTH
BRG
RNG
DEPTH
VRM knob and EBL
knob are used for
setup.
BRG
ECHO ALARM
DEPTH
WIDTH
RNG
118°
2NM
45°
6NM
Blue dotted line of
echo alarm area
Orange dashed
circle line
ECHO ALARM IN
