4 Mechanical Accessories
4.1 Mounting Kit for AKMH Motors
IEC mounting kits with 1 shaft center screw and 4 flange screws. Hygienic mounting is pos-
sible only with these screws.
Description Order Code
Mounting Hardware AKMH2, Ax flange / Cx front mounting MTG-KIT-AKMH2-IEC
Mounting Hardware AKMH3, Ax flange / Cx front mounting MTG-KIT-AKMH3-IEC
Mounting Hardware AKMH4, Ax flange / Cx front mounting MTG-KIT-AKMH4-IEC
Mounting Hardware AKMH5, Ax flange / Cx front mounting MTG-KIT-AKMH5-IEC
Mounting Hardware AKMH6, Ax flange / Cx front mounting MTG-KIT-AKMH6-IEC
NEMA mounting kits are described in the US selection guide, available from the Kollmorgen
website www.kollmorgen.com).
4.2 Suspension Unit for AKM motors
DANGER
Suspended load. Risk of death if load falls. Never step under the load,
while the motor is raised!
You must read the instructions manual for the suspension unit ZPMZ 120/292. Observe the
"safety instructions" and "use as directed" hints before starting transportation work.

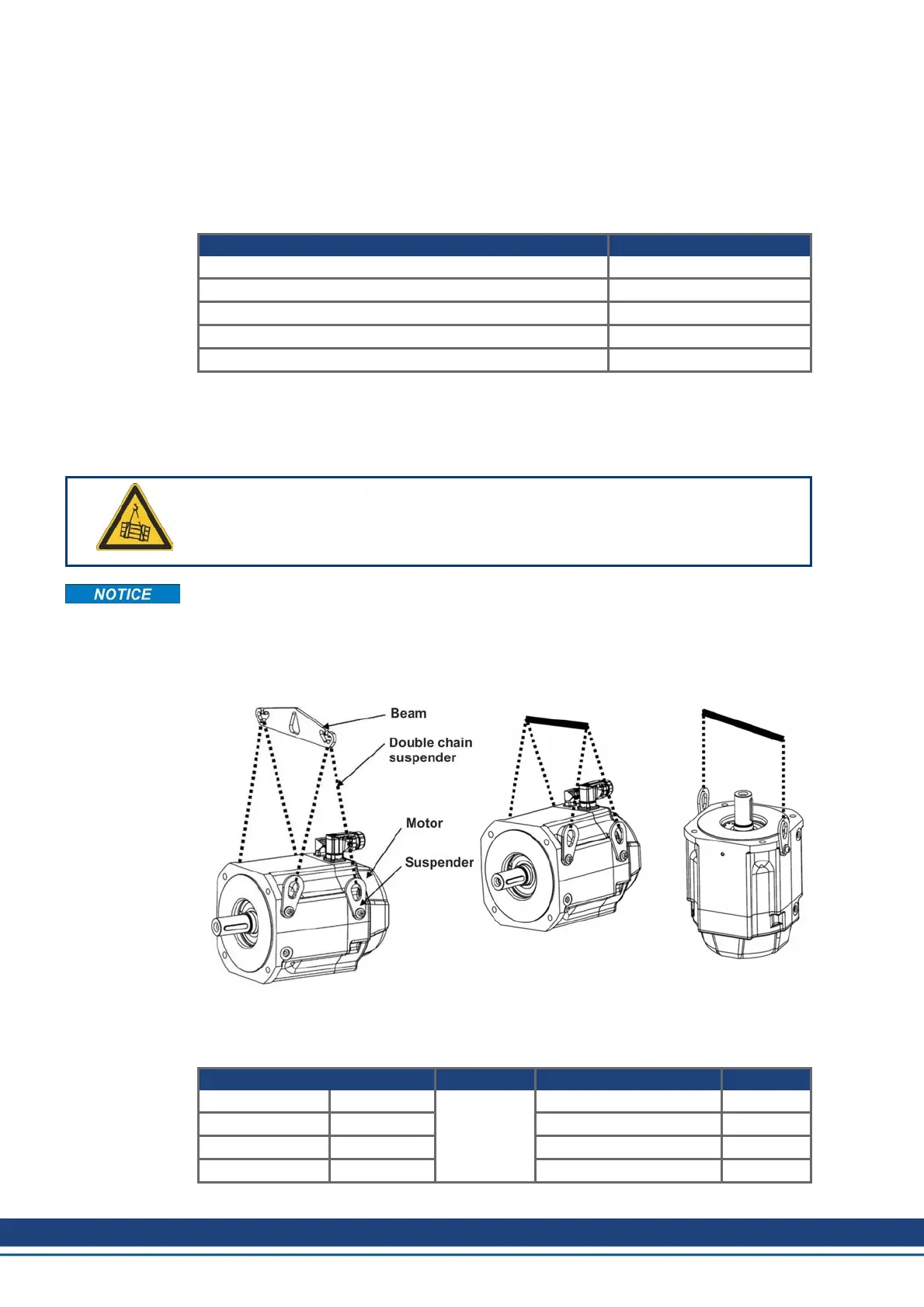

The Suspension Unit ZPMZ 120/292 is designed for suspended handling exclusively of
motors (i.e., without attached units such as gearboxes, clutches, etc.) with a maximum
weight of 120 kg and maximum nominal span of the extreme suspension hooks of 292 mm.
The suspended unit consists of a Beam, suspended off the crane hook and two double-run
chain suspenders. The motor may be borne on two or four runs of the chain suspender.
The suspenders (number depends on the motor type) are delivered with the motor.
Technical Data
Lifting capacity 120 kg Weight 0,83 kg
Nominal span 292 mm Number of cycles a year 20.000
Lug width 44,7 mm Average load 60 %
Lug height 51 mm Order code FA00092
