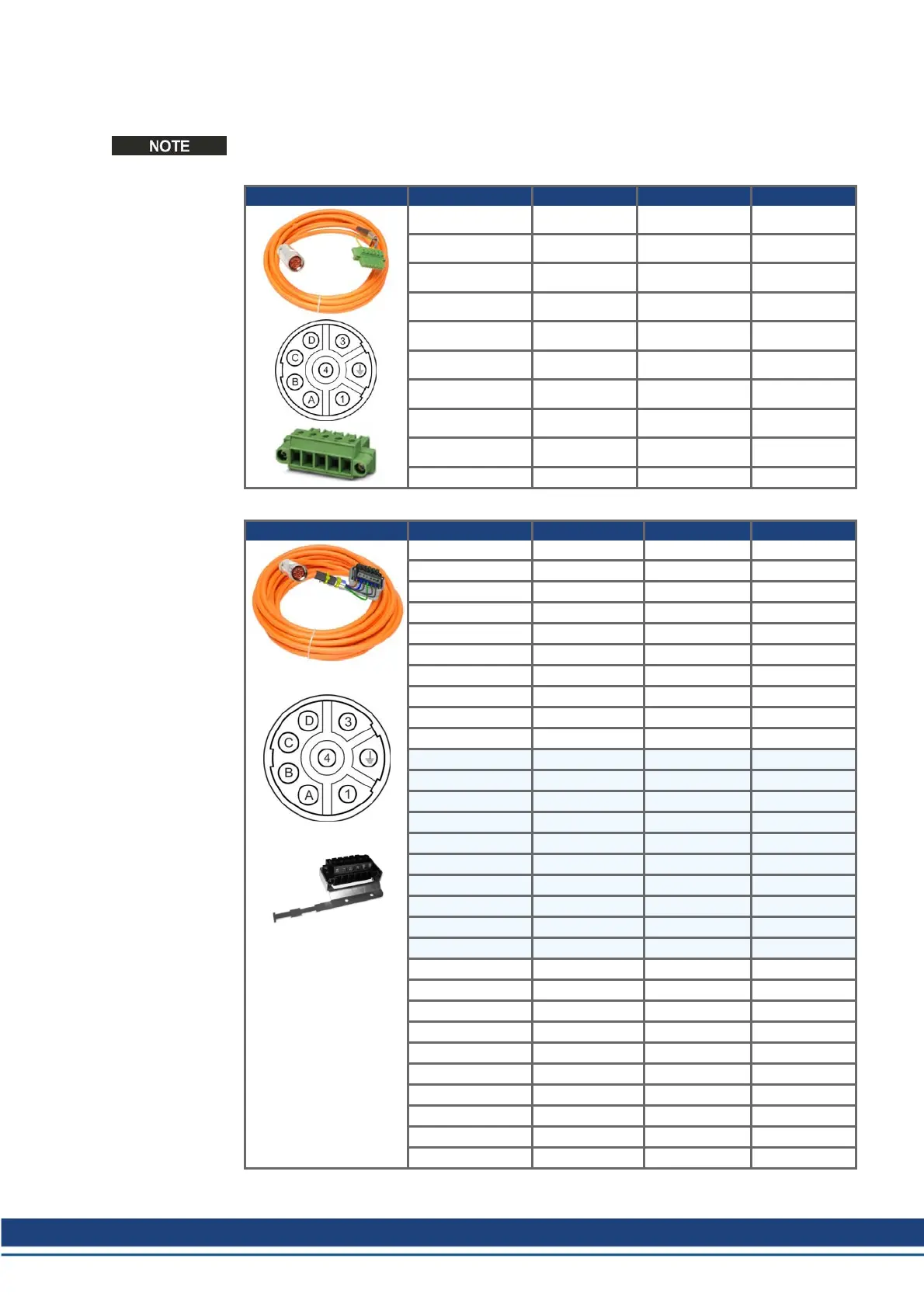

11.11.2.4 Order codes motor cables for S701-712
Column Max. Current: according to EN60204, table 6, installation type B2.
With shield clamp for amplifier's end, motor connector size 1, 6 poles, up to 22A
Article Cable Type Max. Current Order Code
Motor cable 5m (4x1) 10.1 DE-107473
Motor cable 10m (4x1) 10.1 DE-107474
Motor cable 15m (4x1) 10.1 DE-107475
Motor cable 20m (4x1) 10.1 DE-107476
Motor cable 25m (4x1) 10.1 DE-107477
Motor cable 5m (4x1+(2x0.75)) 10.1 / 8.5 DE-107479
Motor cable 10m (4x1+(2x0.75)) 10.1 / 8.5 DE-107480
Motor cable 15m (4x1+(2x0.75)) 10.1 / 8.5 DE-107481
Motor cable 20m (4x1+(2x0.75)) 10.1 / 8.5 DE-107482
Motor cable 25m (4x1+(2x0.75)) 10.1 / 8.5 DE-107483
With shield plate at amplifier's end, motor connector size 1, 6 poles, up to 22A
Article Cable Type Max. Current Order Code
Motor cable 5m (4x1.5) 13.1 DE-200456
Motor cable 10m (4x1.5) 13.1 DE-200457
Motor cable 15m (4x1.5) 13.1 DE-200458
Motor cable 20m (4x1.5) 13.1 DE-200459
Motor cable 25m (4x1.5) 13.1 DE-200460
Motor cable 5m (4x1.5+(2x0.75)) 13.1 / 8.5 DE-200462
Motor cable 10m (4x1.5+(2x0.75)) 13.1 / 8.5 DE-200463
Motor cable 15m (4x1.5+(2x0.75)) 13.1 / 8.5 DE-200464
Motor cable 20m (4x1.5+(2x0.75)) 13.1 / 8.5 DE-200465
Motor cable 25m (4x1.5+(2x0.75)) 13.1 / 8.5 DE-200466
Motor cable 5m (4x2.5) 17.4 DE-200468
Motor cable 10m (4x2.5) 17.4 DE-200469
Motor cable 15m (4x2.5) 17.4 DE-200470
Motor cable 20m (4x2.5) 17.4 DE-200471
Motor cable 25m (4x2.5) 17.4 DE-200472
Motor cable 5m (4x2.5+(2x1)) 17.4 / 10.1 DE-200474
Motor cable 10m (4x2.5+(2x1)) 17.4 / 10.1 DE-200475
Motor cable 15m (4x2.5+(2x1)) 17.4 / 10.1 DE-200476
Motor cable 20m (4x2.5+(2x1)) 17.4 / 10.1 DE-200477
Motor cable 25m (4x2.5+(2x1)) 17.4 / 10.1 DE-200478
Motor cable 5m (4x4) 23 DE-200618
Motor cable 10m (4x4) 23 DE-200619
Motor cable 15m (4x4) 23 DE-200620
Motor cable 20m (4x4) 23 DE-200621
Motor cable 25m (4x4) 23 DE-200622
Motor cable 5m (4x4+(2x1)) 23 / 10.1 DE-200623
Motor cable 10m (4x4+(2x1)) 23 / 10.1 DE-200624
Motor cable 15m (4x4+(2x1)) 23 / 10.1 DE-200625
Motor cable 20m (4x4+(2x1)) 23 / 10.1 DE-200626
Motor cable 25m (4x4+(2x1)) 23 / 10.1 DE-200627
Accessories Europe | 11 Cables
Kollmorgen | December 2014 69
