Accessories Europe | 11 Cables
11.4 Power Voltage Supply, external brake resistor, DC bus link
The connectors used (40 A and higher fixed terminals) are included in the scope of supply of
the servo amplifier. If necessary, the connectors are coded and printed with the cor-
responding terminal designation. The table indicates the type of cable required for each inten-
ded purpose.
We do not deliver configured cables for this interface.
You must always observe the specifications in respect of cable cross-sections contained in
the instructions manual for the servo amplifier you are using in your application. Fit suitable
wire end ferrules or plug connectors to stripped conductors. A connection diagram appears in
the servo amplifier instructions manual.
11.4.1 Mating connector (part of delivery)
Mains supply 1 Mains supply 2 DC-link bus Brake resistor
Amplifier # Order Code # Order Code # Order Code # Order Code
S300-230V X0 DE-105856 - - X8 DE-107556 X8 DE-107556
S300-400V X0 DE-107557 - - X8 DE-107558 X8 DE-107558
S400 X0 DE-102583 - - X0 DE-102583 X0 DE-102583
S601...620 X0A DE-92258 X0B DE-92259 X7 DE-90064 X8 DE-90065
S701...724 X0 DE-200451 - - X8 DE-200452 X8 DE-200452
AKD-
x00306/00606*
X3 CON-
AKDX3A-SL
- - X3 CON-
AKDX3A-SL
X3 CON-
AKDX3A-SL
AKD-x01206* X3 CON-
AKDX3B-SL
- - X3 CON-
AKDX3B-SL
X3 CON-
AKDX3B-SL
AKD-
x02406/0xx07*
X4 CON-
AKDX4-SL
- - X3 CON-
AKDX3C-SL
X3 CON-
AKDX3C-SL
AKD-C01007 X12 Connector Kit
➜ p. 23
- - X14 Connector Kit
➜ p. 23
X14 Connector Kit
➜ p. 23
*= x means variants -B, -P, -T and -M
11.4.2 Mating connector (optional)
Mains supply DC-link bus / Brake resistor
Amplifier # Order Code # Order Code
S701...724 X0Y DE-200851 X8Y&X4Amini DE-201942
S701...724 XOF DE-200955 X8F DE-200956
AKD-x02406/0xx07 X3Y CON-AKDX3C-SL-Y
With Y-connectors you can daisy-chain supply voltage or DC-bus link to several amplifiers.
For details see instructions manual of the servo amplifier. The F-connectors are for fast wir-
ing (no screws).

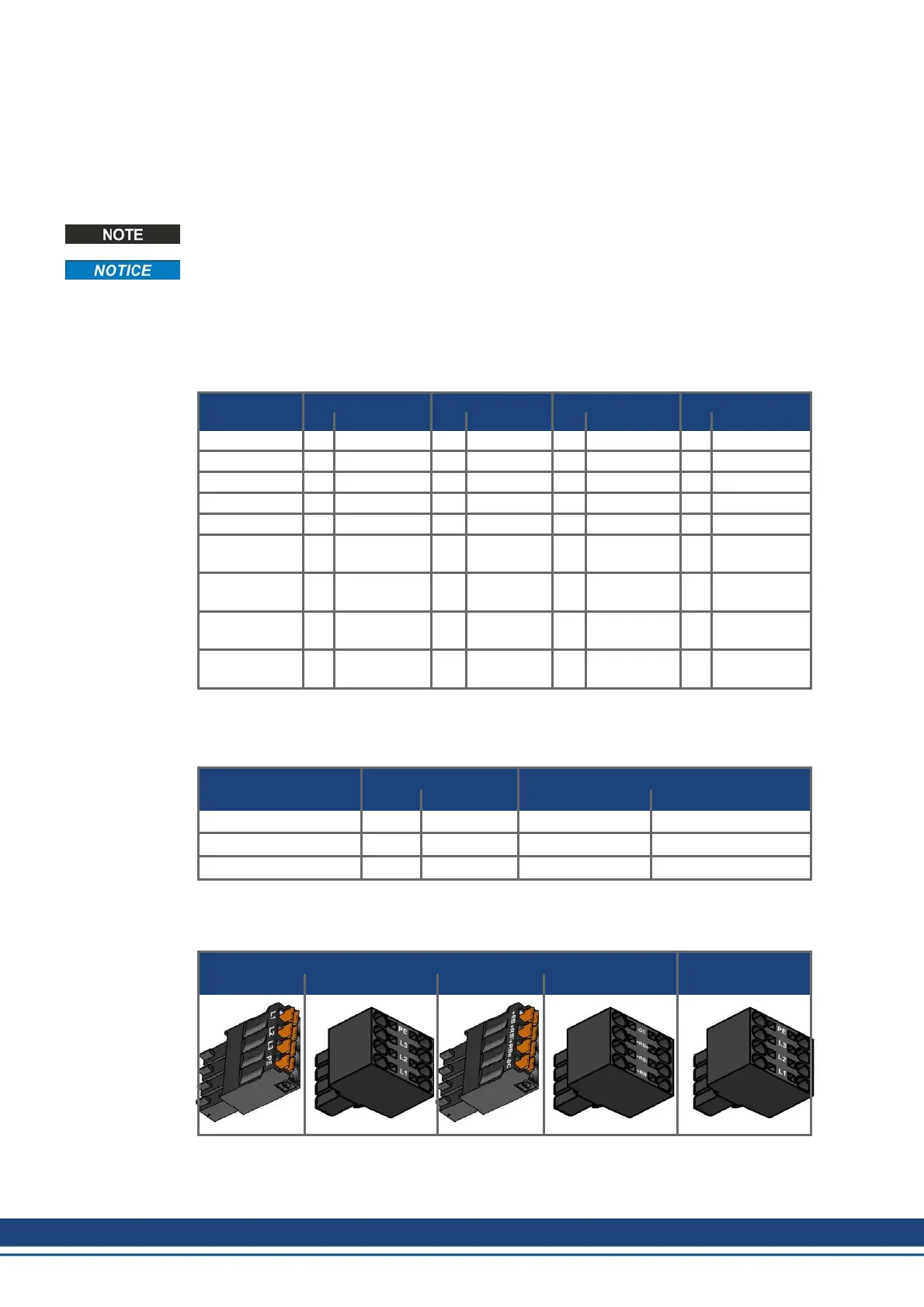

S700 AKD
X0F X0Y X8F X8Y (&X4Amini) X3Y
48 Kollmorgen | December 2014
