4.3 Fan Kit for AKM7 motors

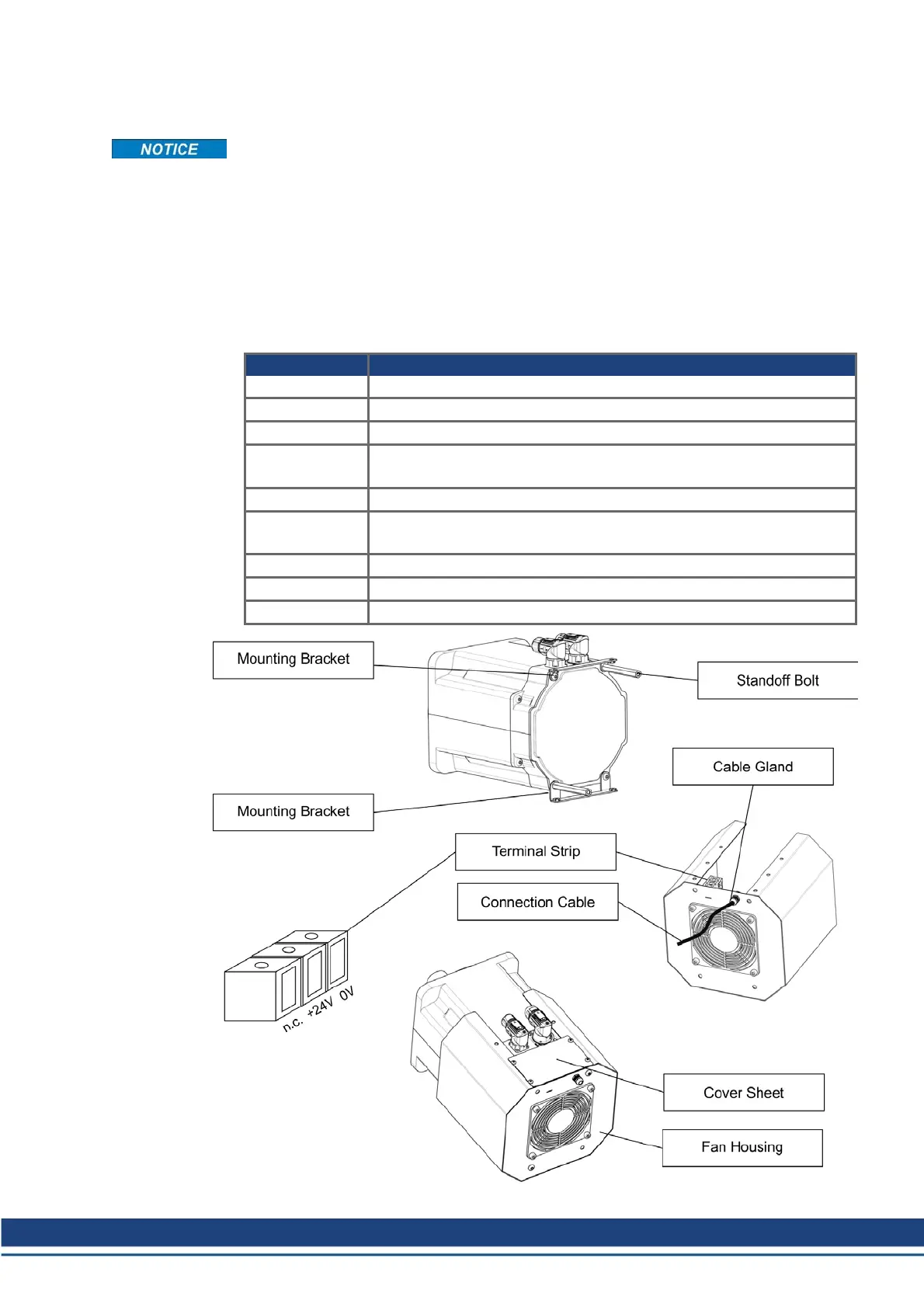

Observe the mounting instructions delivered with the fan kit. The fan housing can be moun-
ted either with both the supplied brackets and spacers or with the brackets only. The choice
of mounting method depends on the application. If strong vibrations are expected, you should
use both brackets and spacers. Motors with integrated brakes require the longs spacers.
Mounting the fan kit enlarges the motor by approximately 65 mm. The detailed final dimen-
sions of AKM7 motors with mounted fan kit can be found in the instructions manual of the
AKM motor series. Ventilation of AKM7 motors allow increased current of the motors. This
higher current usually requires larger wiring cross section compared to not ventilated motors.
The necessary data for current and wiring cross section can be found in the technical data
section of the AKM instructions manual.
Technical Data
Supply voltage 24 VDC
Supply current 270 mA
Electrical power 6.5 W
Surface Coated with polyester powder coating in matt black, not resistant
against solvents
Protection class IP 20
Connection Cable gland 10 mm, cable diameter 4 mm to 6 mm, recommended cable
3x0.75 mm² (not part of delivery)
Terminals 0.33 mm² to 4 mm²
Weight 2.52 kg
Order code AKM7-FAN
