Accessories Europe | 4 Mechanical Accessories
4.4 Mechanical accessories for AKD-N and AKD-C
You must read the AKD-N/AKD-C installation manuals. Observe the safety instructions
given there before commencing mounting/installation work.

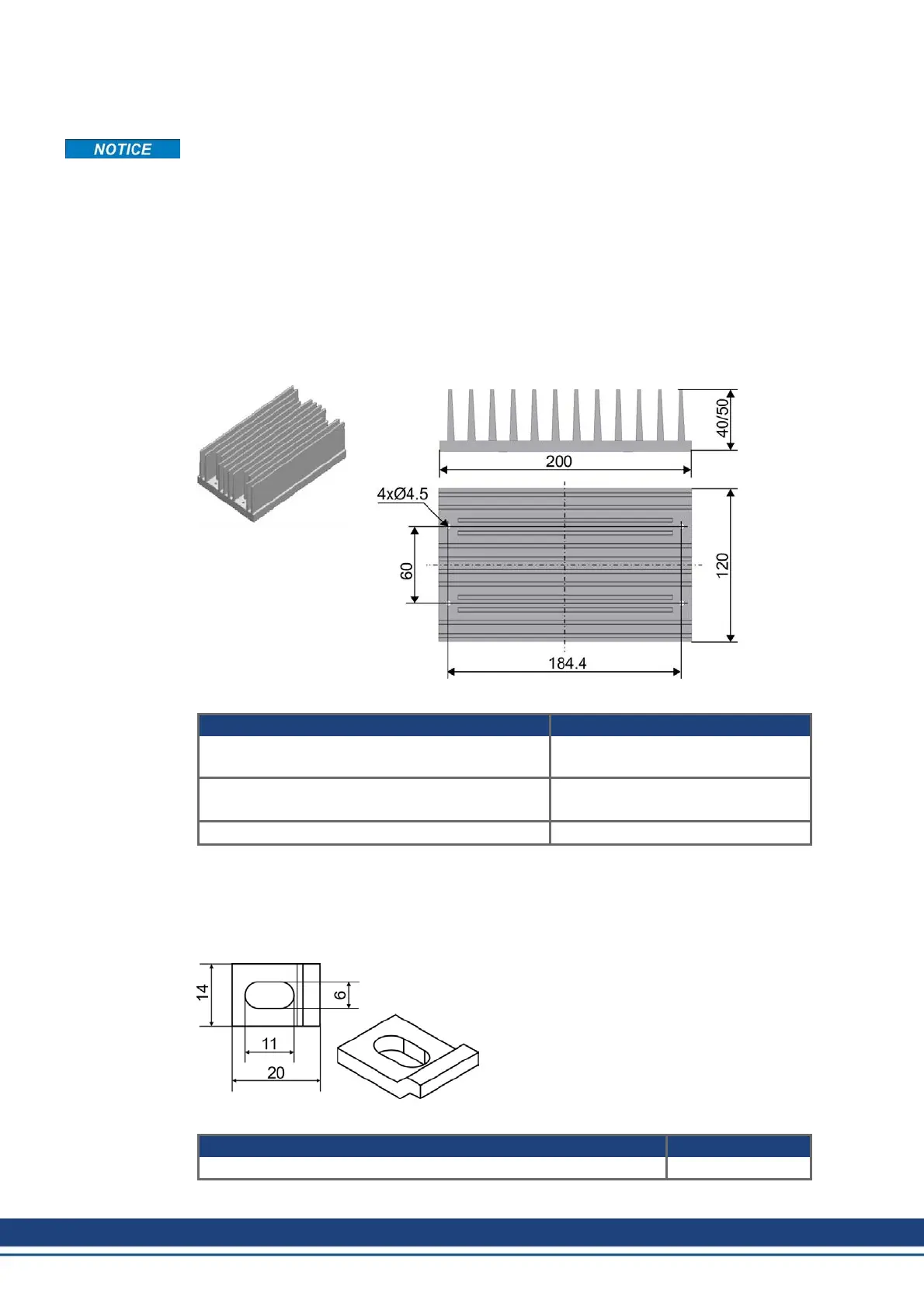

4.4.1 Heat Sink for AKD-N
When mounting AKD-N to the machinery, temperature management is important to ensure
maximum performance of the drive system. In case of medium or bad cooling situation (as
described in the AKD-N Installation Manual), you can mount a heat sink to the AKD-N.
Heat flow is optimized by a heat conducting film, which must be placed between heat sink
and AKD-N.
Mounting holes in the heat sink and winding holes in the AKD-N are prepared for M4x16
hexagon socket screws to ISO 4762. Use a 3 mm T-handle Allen key for mounting.
Order Codes
Article Order codes
Heat sink Kit 40 mm with Heat conducting film and
4 screws M4x16
AKD-N 3,6 HEATSINK KIT 40MM
Heat sink Kit 50 mm with Heat conducting film and
4 screws M4x16
AKD-N 3,6 HEATSINK KIT 50MM
Heat conducting film 849-373000-04
4.4.2 Mounting clamps for AKD-N
The AKD-N servo amplifier is mounted to the machine with special mounting clamps. The
delivery package contains 4 clamps. In case of lost or damaged clamps, you can order a set
of four clamps.
Order Codes
Article Order codes
AKD-N Mounting Clamps Set, 4 clamps AKD-N-M/C-Set
22 Kollmorgen | December 2014
