Accessories Europe | 11 Cables
11.10 Hybrid cables

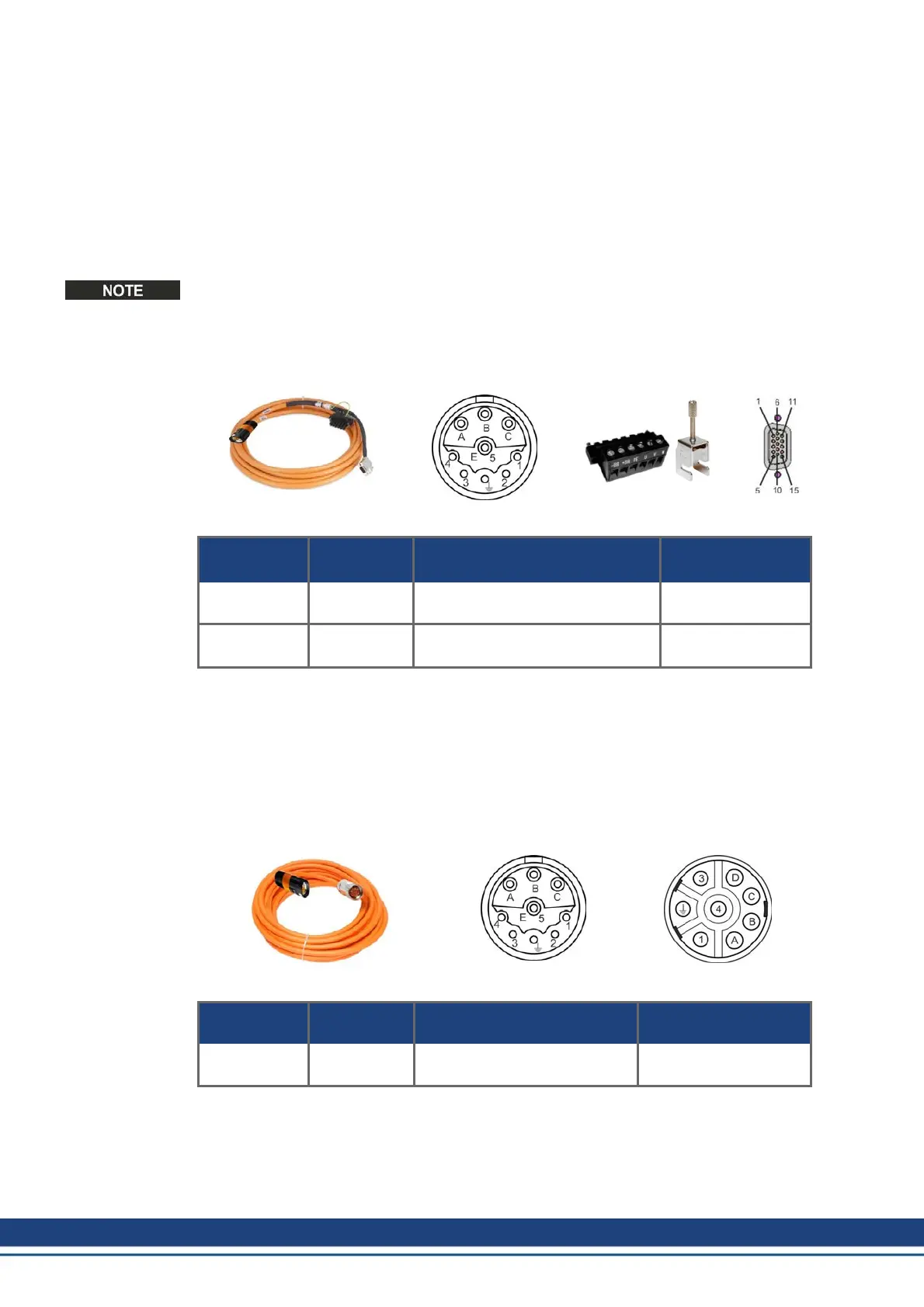

11.10.1 AKD to AKM1 Motor (i-tec connector)
You should use the configured Kollmorgen cables.
For AKD-B/P/T/M, with shield clamp, i-tec motor connector
AKD-B/P/T/M series servo amplifiers have a 15 pole high density SubD female connector to
connect the feedback and a terminal connector for power wiring.
For SFD3 connection to AKD-B/P/T/M, the feedback connector on the servo amplifier end
contains electronics.
Usable for AKM1 (connector option D, feedback options C- and CA). Define the required
length in clear text (steps of 1 m). Maximum cable length 25 m.
Servo
amplifier
(4x1+(2x0.34)
+(2x0.75))
Usable to connect Order code
AKD-B/P/T/M SFD AKD-x00306 & x00606* and AKM1
(connector D, feedback C-)
CCS1A3-010-vvv-00
AKD-B/P/T/M SFD3 &
Brake
AKD-x & x* and AKM1 (connector
D, feedback CA)
CCJ1A3-010-vvv-00
*= x means variants -B, -P, -T and -M
For AKD-N, i-tec motor connector
AKD-N series servo amplifiers have an 8 pole round connector to connect both motor power
and feedback.
Usable for AKM1 (connector option D, feedback option CA).
Maximum cable length 5 m. Length definition: xx=meters, yy=centimeters.
0.2, 0.3, ... , 1.0 (steps 0.1m up to 1m)
1.25, 1.5, ... , 2.0 (steps 0.25m up to 2m).
Servo
amplifier
(4x1+(2x0.34)
+(2x0.75))
Usable to connect Order code
AKD-N SFD3 &
Brake
AKD-N and AKM1 (connector D,
feedback CA)
CCJNA3-010-xxmyy-00
62 Kollmorgen | December 2014
