11.12.1.2 Resolver cable for AKD

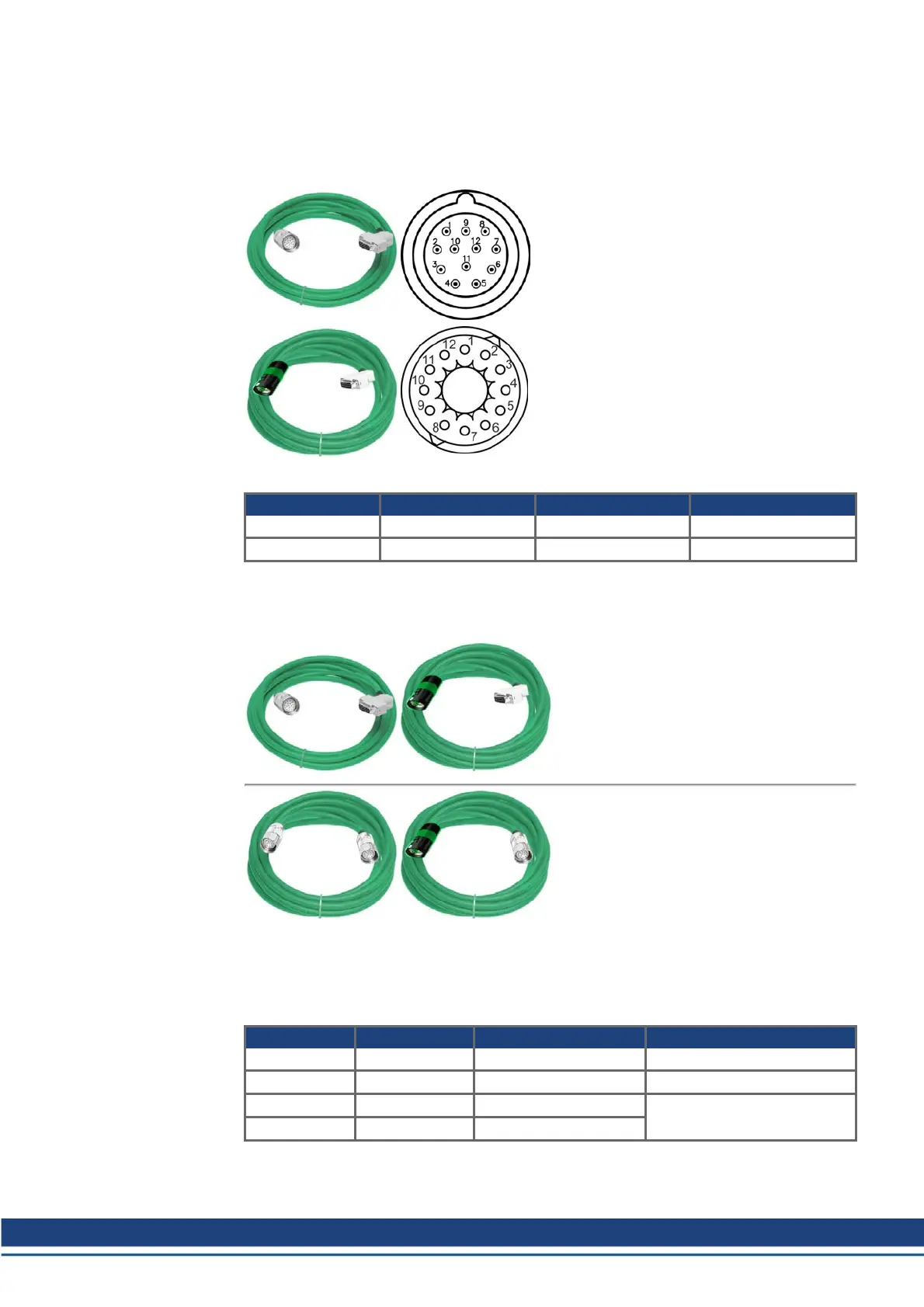

All our standard motors feature the same 12-pin connector (IP65) for the resolver connection.
This connector is also used for the connections from the motor’s thermal protection contact
to the servo amplifier. The AKM1 motor optionally supports a y-tec connctor.
The AKD-B/P/T/M series servo amplifiers
have a 15 pole high density Sub-D female con-
nector for the connection of a resolver and the
thermal protection contact. On the mo tor end
two connectors are available: standard Koll-
morgen IP65 or y-tec connector for AKM1.
Length definition: vvv=meters.
Maximum cable length 100 m.
The cable shield is connected to the AKD-
B/P/T/M via the connector housing.
The motor feedback should be connected with
pre-assembled cables from Kollmorgen.
Order codes for resolver cables, pre-assembled
Amplifier (4x(2x0.25)) Order code Length
AKD-B/P/T/M Resolver Cable IP65 CFR0A1-002-vvv-00 Steps of 1m up to 100m
AKD-B/P/T/M Resolver Cable y-tec CFR0A3-002-vvv-00 Steps of 1m up to 100m
Define the required length in clear text.
11.12.2 SFD cables for AKD
The AKD-B/P/T/M series servo amplifiers
have a 15 pole high density Sub-D female
connector for the connection of an SFD feed-
back. Length definition: vvv=meters. Max-
imum cable length 50 m.
The cable shield is connected to the AKD-
B/P/T/M via the connector housing.
The AKD-N series servo amplifiers have a
round connector to connect an SFD feed-
back. On the motor end two connectors are
available: standard Kollmorgen IP65 or y-tec
connector for AKM1. Length definition:
xx=meters, yy=centimeters. Maximum cable
length 5 m.
The cable shield is connected to the AKD-N
via the connector housing.
The motor feedback should be connected with pre-assembled cables from Kollmorgen.
Order codes for SFD cables, pre-assembled
Amplifier (2x(2x0.25)) Order code Length
AKD-B/P/T/M SFD Cable IP65 CFS0A1-002-vvv-00 Steps of 1 m up to 50 m
AKD-B/P/T/M SFD Cable y-tec CFS0A3-002-vvv-00 Steps of 1 m up to 50 m
AKD-N-DF/DS SFD Cable IP65 CFSNA1-002-xxmyy-00 0.1m steps from 0.2m to 1m,
0.25m steps from 1.25m to 5mAKD-N-DF/DS SFD Cable y-tec CFSNA3-002-xxmyy-00
Define the required length in clear text.
