Accessories Europe | 11 Cables
11.11.4.2 Preparing cables for S601...620
The motor is connected to the S601...620 by a Power Combicon connector (➜ p. 77). You
can order the connector kit from Kollmorgen (connector, housing, shield plate, rubber bushes,
installation material) with the order code DE-90066.
Please take note that the connector can accept a maximum conductor cross-section of
4mm².

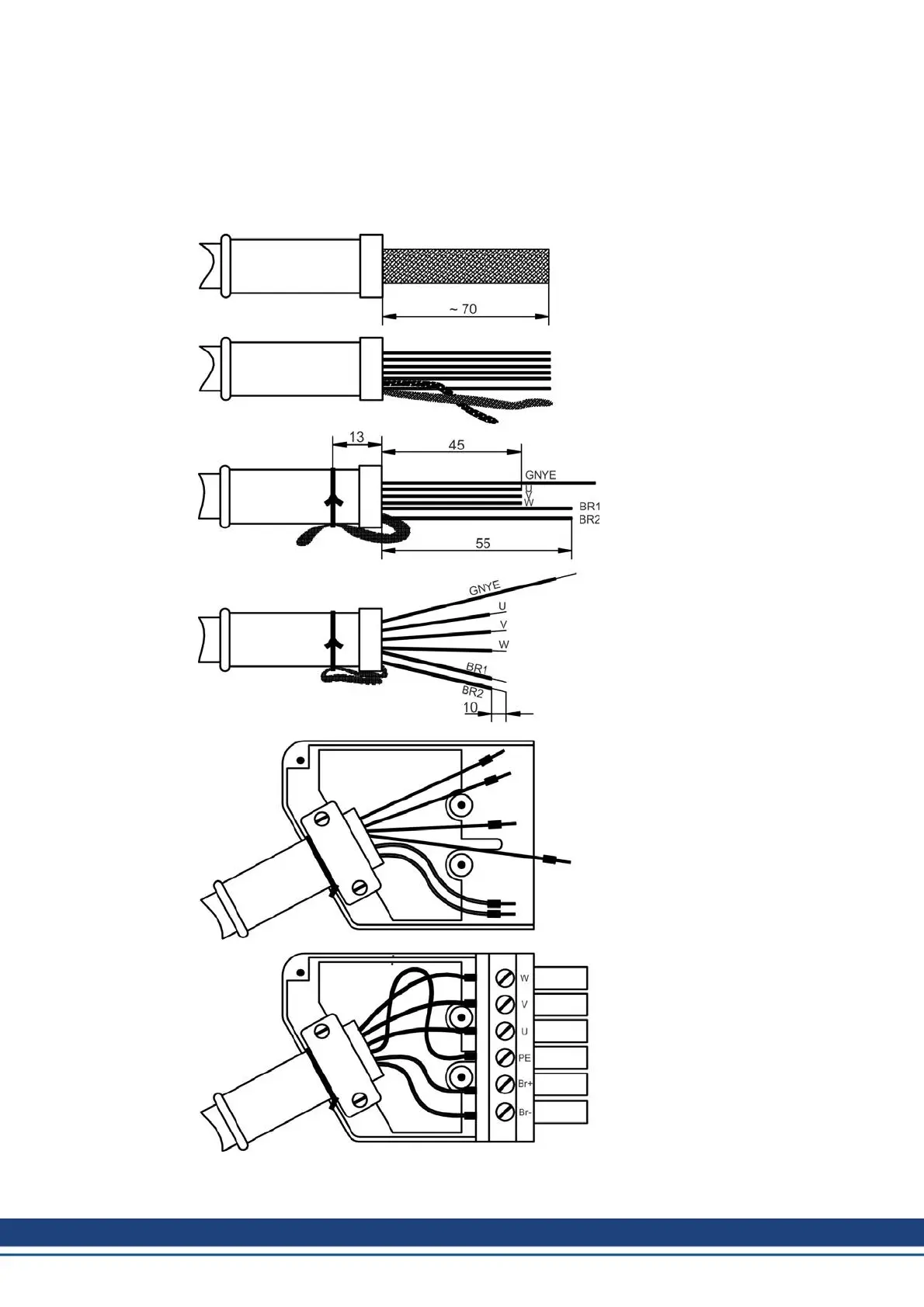

First push the rubber sleeve
onto the cable, and then strip
off about 70 mm of the outer
covering, without damaging
the shielding.
Carefully separate the shield-
ing braid from the cores.
Twist the shielding braid into a
pigtail and tie it to the sleeve
with the wire. Shorten the
brake cores to 55 mm and the
power cores to 45 mm.
Fold back the overhanging
length of the shielding pigtail
to face forwards. Strip off the
ends of the cores for about 10
mm. This length can vary,
depending on the type of boot-
lace ferrule that is used.
Apply bootlace ferrules to the
conductors. Place the shield
plate in the bottom half of the
connector housing. Place the
cable in the strain relief, so
that the folded shielding pig-
tail lies on the shield plate, but
the tie-wire is not clamped
inside.
Tighten up the screws, without
crushing the cable.
Place the connector in the
housing. Take care that the
tongue of the shield plate sits
in the PE clamp. Wire up the
connector according to the wir-
ing diagram in the instructions
manual, and tighten up the
clamping screws. Take care
that the insulation is not
trapped underneath. Close
the housing.
78 Kollmorgen | December 2014
