Accessories Europe | 11 Cables
11.6.4 Preparing cables
For simplicity, the instructions for preparation only show the section with the cores that have
to be shielded and twisted pairs.

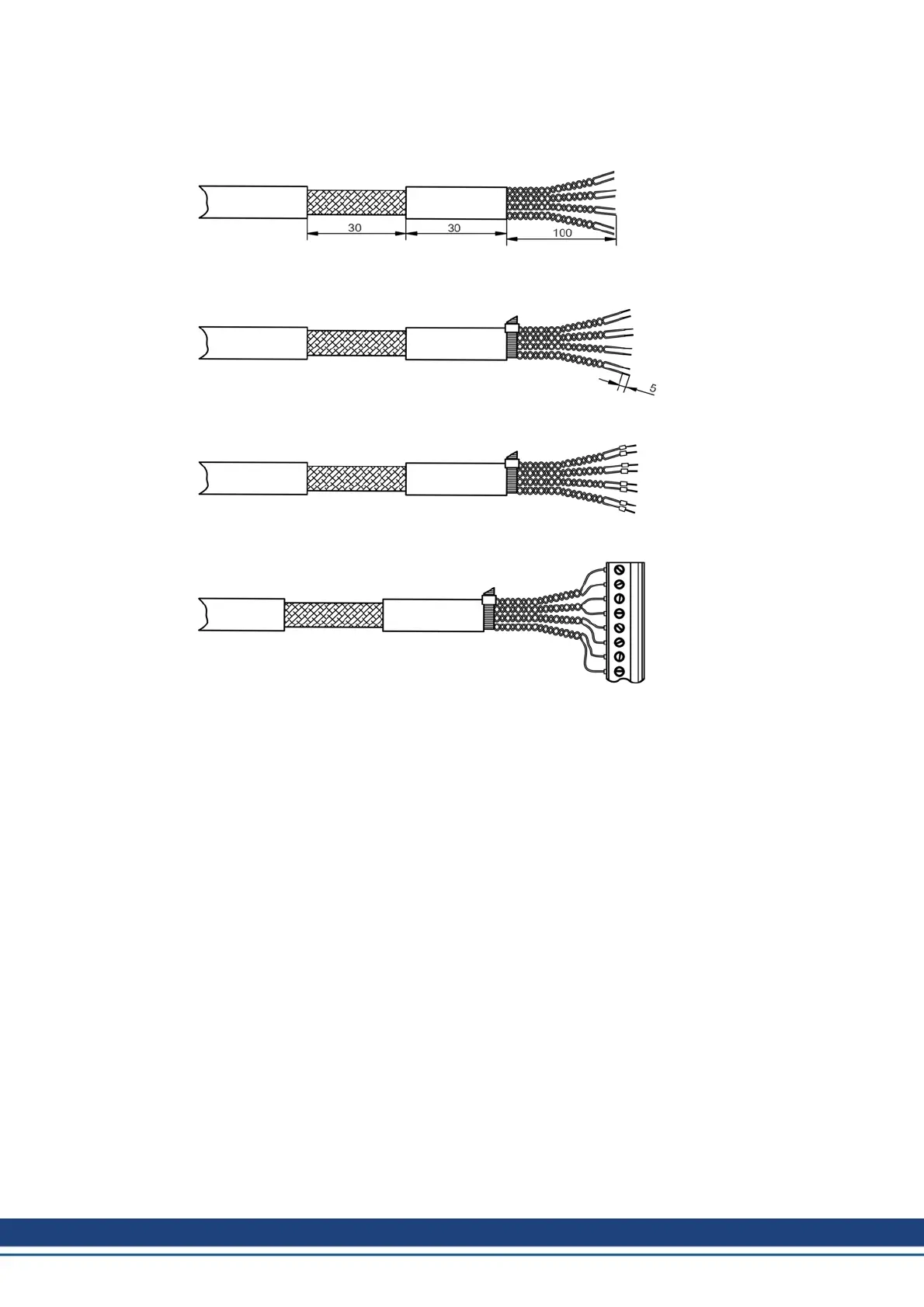

Remove the outer cov-
ering and the shielding
braid over a length of
about 100 mm.
Remove another sec-
tion of the outer cov-
ering, about 30mm
long, without damaging
the shielding braid.
Secure the cores where
they emerge, with a
cable tie. Strip off the
insulation from the
cores for a length of
about 5 mm, without
damaging the copper
strands. This length can
vary, according to the
type of bootlace ferrule
that is used.
Fit appropriate bootlace
ferrules or terminal pins
to the bared ends of the
cores.
Wire up the screw terminals of the connector according to the wiring diagram (see also the
instructions manual for the servo amplifier). Tighten the screws and take care that the insu-
lation is not trapped in the terminals.
56 Kollmorgen | December 2014
