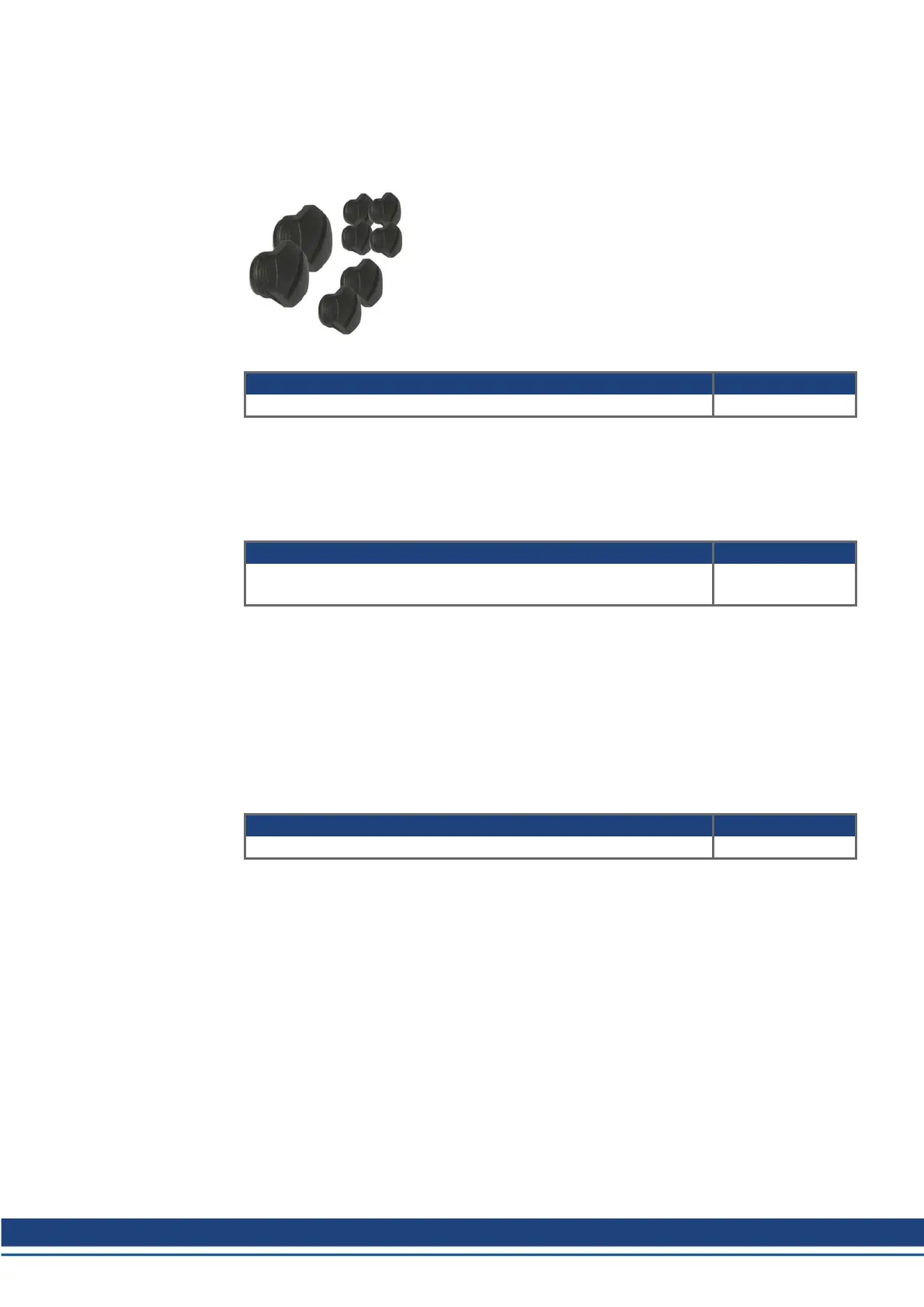

4.4.3 Sealing plugs for AKD-N connectors
The sealing plugs in the delivery package are screwed to unused AKD-N connectors to
ensure the IP class for the machine environment. In case of lost plugs, you can order a set
with 3 different plug sizes.
Order Code
Article Order Codes
AKD-N Sealing Plug Set, 4xM12, 2xM23, 2xM17 AKD-N-S/P-Set
4.4.4 Connector Kit for AKD-C
Mating connectors X12, X13, X14, X15, and X17 are part of delivery. If a mating connector is
lost or damaged, you can order the AKD-C Connector Kit.
Order Code
Article Order Codes
AKD-N Connector Kit, included mating connectors X12, X13, X14,
X15, and X17
AKD-C-CONKIT
4.4.5 Cabinet connector coupling for AKD-C/N
The connector coupling must be built into the outer wall of a cabinet. The connector coupling
connects power and signal lines as well as shielding of the hybrid cables and ensures the
long-term sealed transition between cabinet environment (IP54) and machine environment
(IP65/67).
Inside the cabinet the CCNCN1 cable (➜ p. 65) to AKD-C can be plugged in, outside the
cabinet the CCNNN1 cable (➜ p. 65) to AKD-N can be plugged in.
Order Codes
Article Order Codes
Hybrid Connector Coupling AKD-C/AKD-N AKD-CN-Coupling*
*in process
Accessories Europe | 4 Mechanical Accessories
Kollmorgen | December 2014 23
