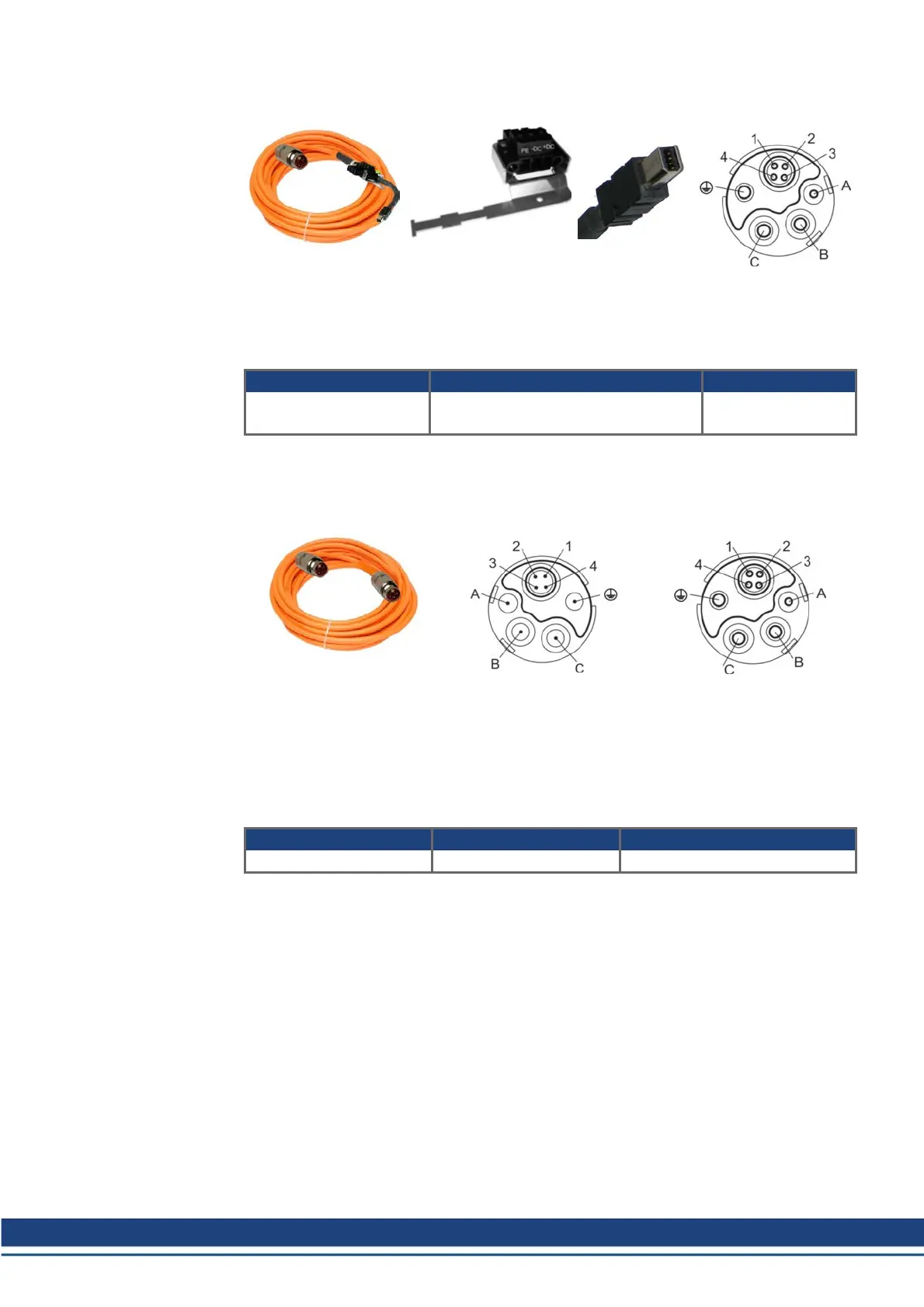

11.10.3 AKD-C to AKD-N in the decentralized drive system
Length definition: xx=meters, yy=centimeters.
Define cable lengths: 3 m, 6 m, 12 m, 24 m, 36 m, 40 m
Maximum cable length 40 m.
You should use the configured Kollmorgen cables.
(3x2.5+(2x0.25)+(2x0.25)) Usable to connect Order code
Hybrid Cable Central power supply AKD-C to AKD-N CCNCN1-025-
xxmyy-00
For replacement issues you can order a connector kit for X20A or X21A with order code
CON-AKD-CX20/21A-SL with one connector and one metal shroud.
11.10.4 AKD-N to AKD-N in the decentralized drive system
Length definition: xx=meters, yy=centimeters.
Steps:
l 0.25 m steps from 0.25 m to 2 m,
l 0.5 m steps from 2.5 m bis 25 m
l Maximum cable length 25 m.
You should use the configured Kollmorgen cables.
(3x2.5+(2x0.25)+(2x0.25)) Usable to connect Order code
Hybrid Cable AKD-N to AKD-N CCNNN1-025-xxmyy-00
Accessories Europe | 11 Cables
Kollmorgen | December 2014 65
