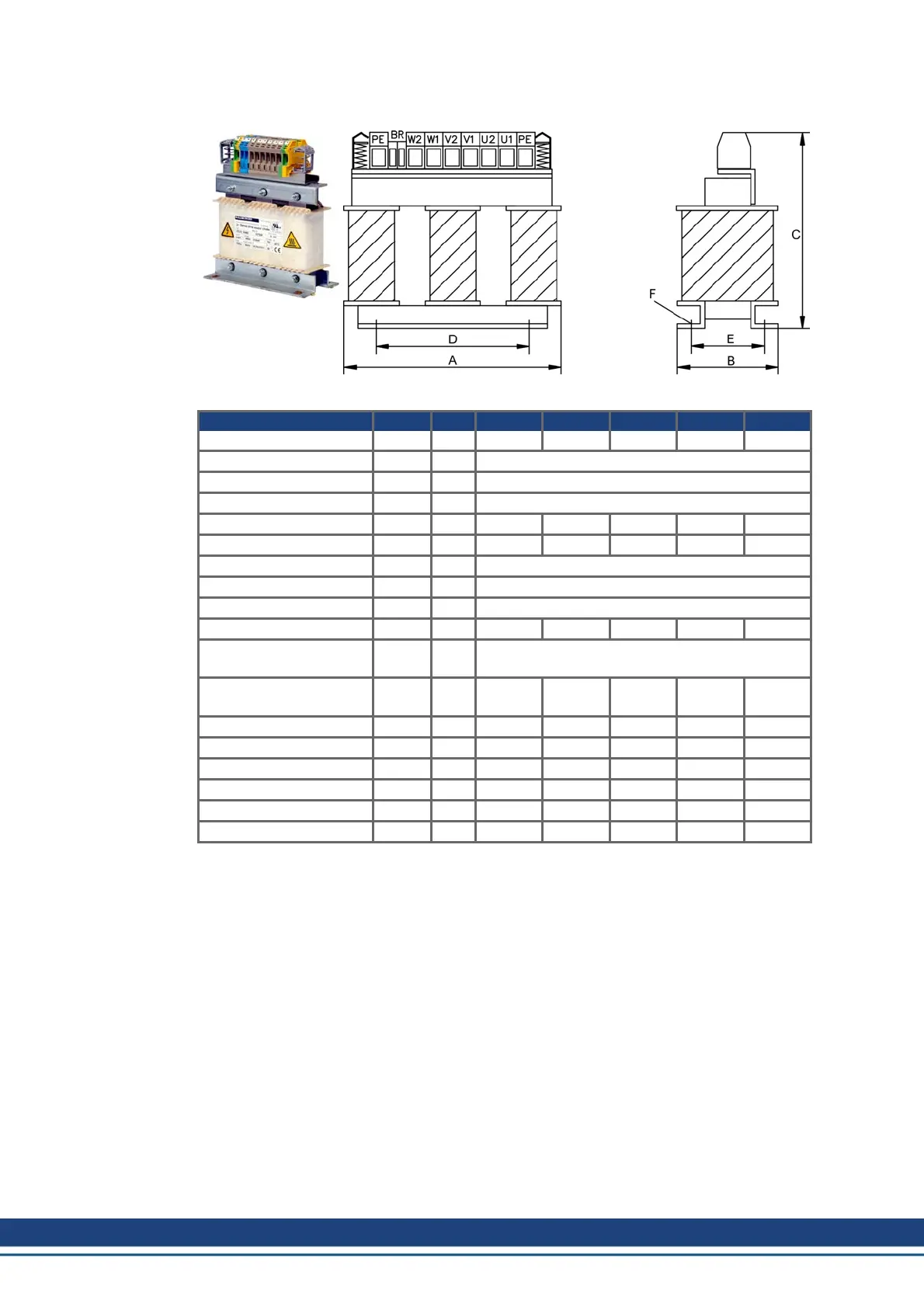

10.5 Motor choke 3YLN-xx
Technical Data:
Rated Data Sym DIM 3YLN-06 3YLN-10 3YLN-14 3YLN-20 3YLN-24
Rated current I0rms A 6 10 14 20 24
Rated voltage Unom V 480
Rated frequency fnom Hz 0 to 150
Max. frequency fmax kHz 8
Inductivity L µH 900 900 900 450 450
Power loss P W 12 14.5 19.4 22.3 23.2
Protection class - - IP00
Temperature class - - F
Operation class - - S1
Weight G kg 4.5 5.5 10 10 10
Cable diameter
(Shield clamp)
- mm 4 to 13.5
Wiring cross section max.
(Terminals)
- mm² 10 10 16 16 16
Width A mm 155 155 190 190 190
Depth B mm 90 105 125 125 125
Height C mm 195 195 230 230 230
Mounting hole distance D mm 130 130 170 170 170
Mounting hole distance E mm 56.5 71.5 78 78 78
Mounting screws F - 4xM6 4xM6 4xM6 4xM6 4xM6
