9.3 Type assignment and order codes
Servo amplifier KCM Module Servo amplifier KCM Module
S300 all Modules S640, S670 not allowed
S400 all Modules S748, S772 not allowed
S601 to S620 all Modules AKD-x00306...02406* not allowed
S701 to S724 all Modules AKD-x04807 not allowed
AKD-x00307...02407* all Modules AKD-C01007 all Modules
*= x means variants -B, -P, -T and -M
Order codes
Type/Order Code Remarks
KCM-S200-0000 Energy Saving Module, 1.6 kWs
KCM-P200-0000 Power Module, 2 kWs
KCM-E200-0000 Expansion Module 2 kWs
KCM-E400-0000 Expansion Module 4 kWs

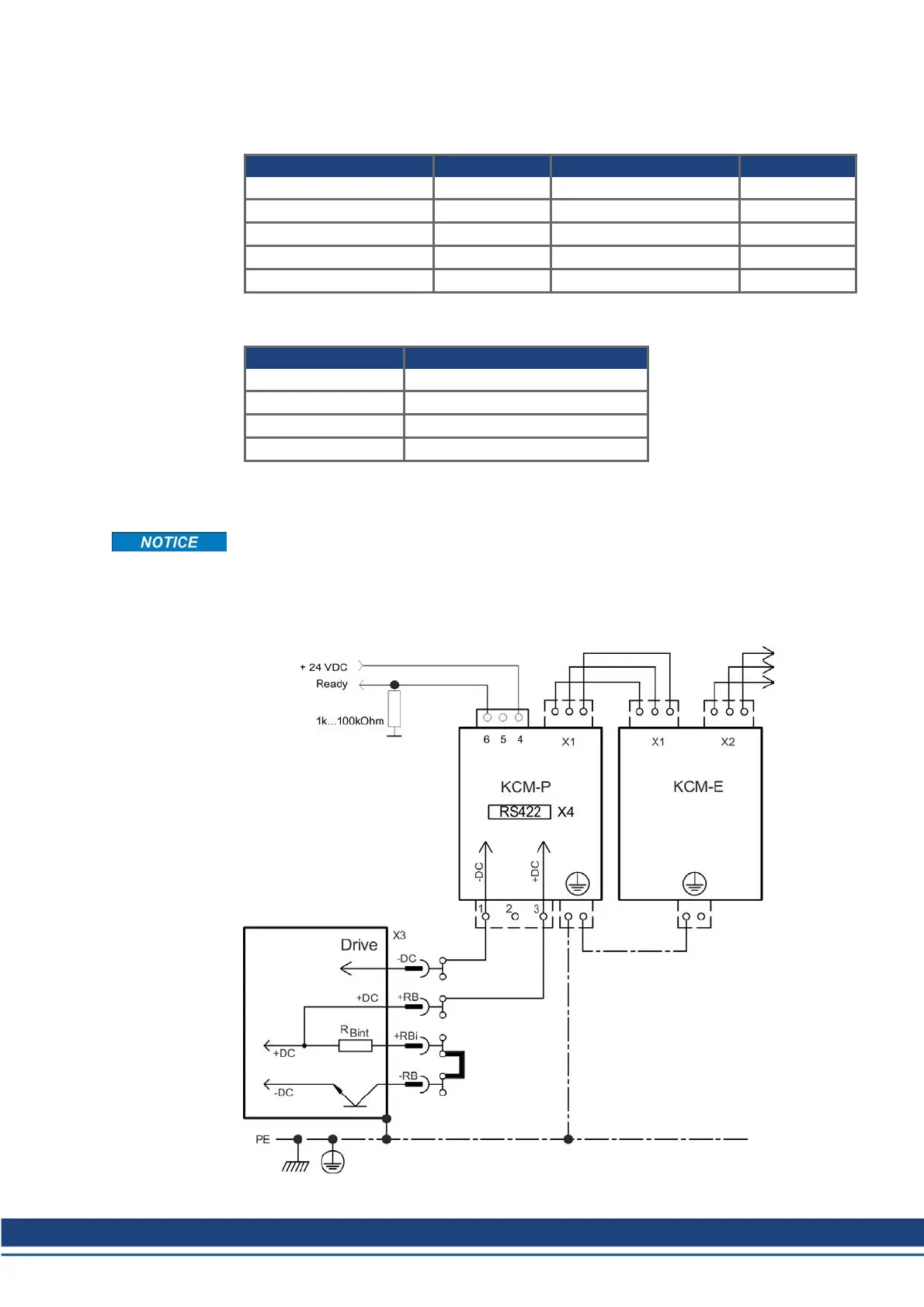

9.4 Example installation with AKD-P, KCM-P and KCM-E
Maximum cable length between AKD and KCM: 500 mm. The DC+ and DC- lines should
always be twisted, maximum cross section is 6 mm².
RS422 interface X4 allows data exchange controlled by a terminal software of your choice.
Interface setting: 115200 Baud, 8 Data Bits, 1 Stop Bit, No Parity&Flow Control. The X4 mat-
ing connector is in the package. The ready signal reports the ready to operate (high level).
More information is given in the KCM Instructions Manual.
Accessories Europe | 9 Capacitor Modules
Kollmorgen | December 2014 39
