11.11.4.3 Preparing cables for S701...724
The motor is connected to the S701...724 by a Power Combicon connector (➜ p. 77). You
can order the connector kit from Kollmorgen (connector, housing, shield plate, rubber
bushes, installation material) with the order code DE-200453. Please take note that the con-
nector can accept a maximum conductor cross-section of 6 mm².

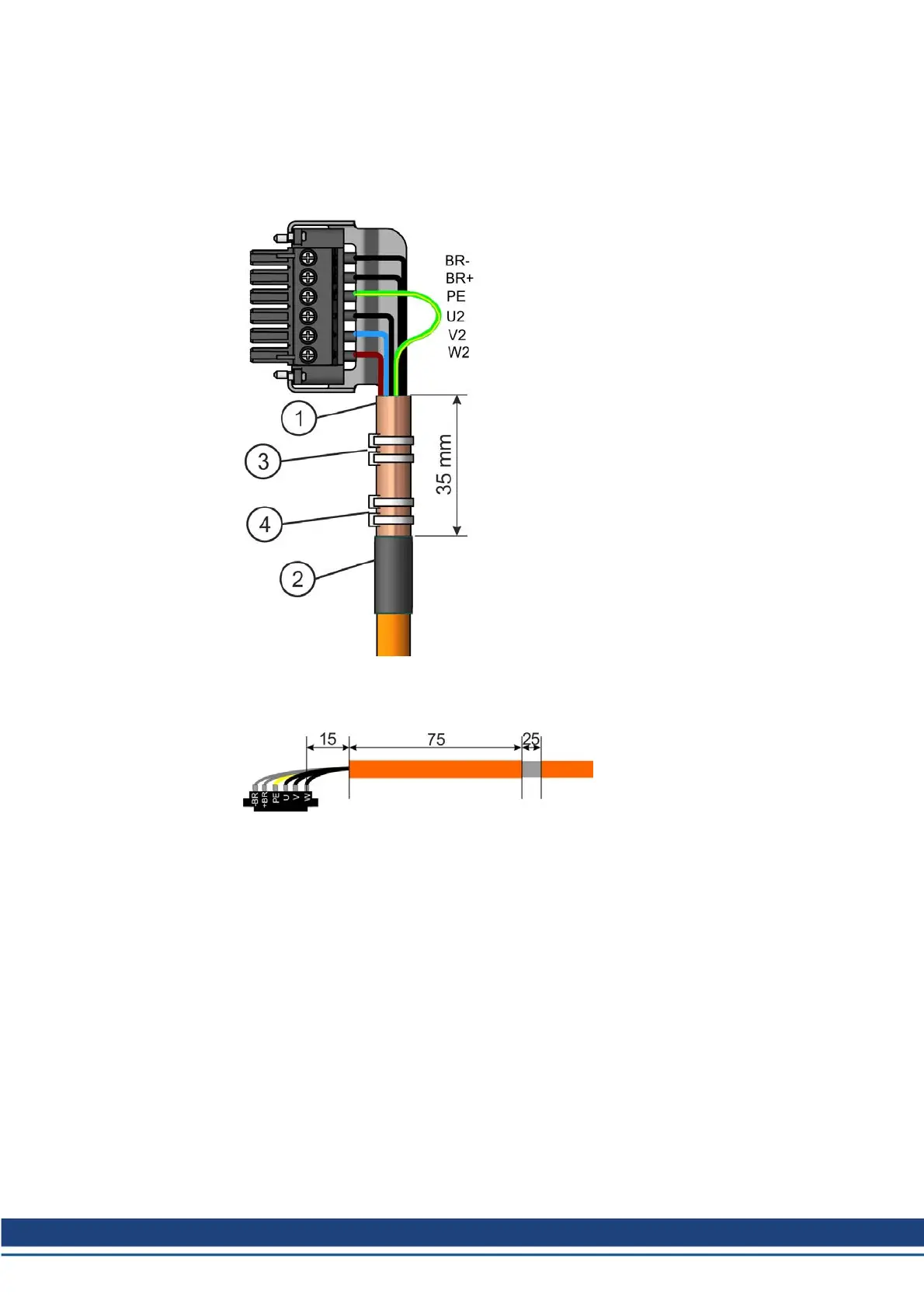

Strip the external cable sheath to a length of approx.
120 mm, taking care not to damage the braided
shield. Push the braided shield (1) back over the
cable and secure with a rubber sleeve (2) or shrink
sleeve.
Shorten all the wires apart from the protective earth
(PE) wire (green/yellow) by about 20 mm so that the
PE wire is now the longest wire. Strip all wires and fit
wire end ferrules.
Secure the braided shield of the cable to the shroud
with a cable tie or a hose clamp (3) and use a
second tie (4) to fasten the cable.
Wire the connector as shown in the connection dia-
gram. Plug in the connector to the socket on the front
of the S701...724.
Screw the connector in place. This ensures that
there is conductive contact over a large surface area
between the braided shield and the front panel.
11.11.4.4 Preparing cables for AKD-x00306/x00606
The motor is connected to the AKD-x00306/x00606 with a connector (➜ p. 77). Please take
note that the connector can accept a maximum conductor cross-section of 4mm².
Use a shielding clamp (➜ p. 24) to ensure an optimum shield connection to the servo amp-
lifier.
Wire the connector as shown in the connection diagram in the installation manual. Plug in the
connector to the socket on the front of the servo amplifier. Screw the connector in place.
Accessories Europe | 11 Cables
Kollmorgen | December 2014 79
