11.5.3 Preparing cables
The connection is on the front panel of the servo amplifier. A Combicon connector is used,
which is included in the delivery package of the servo amplifiers.

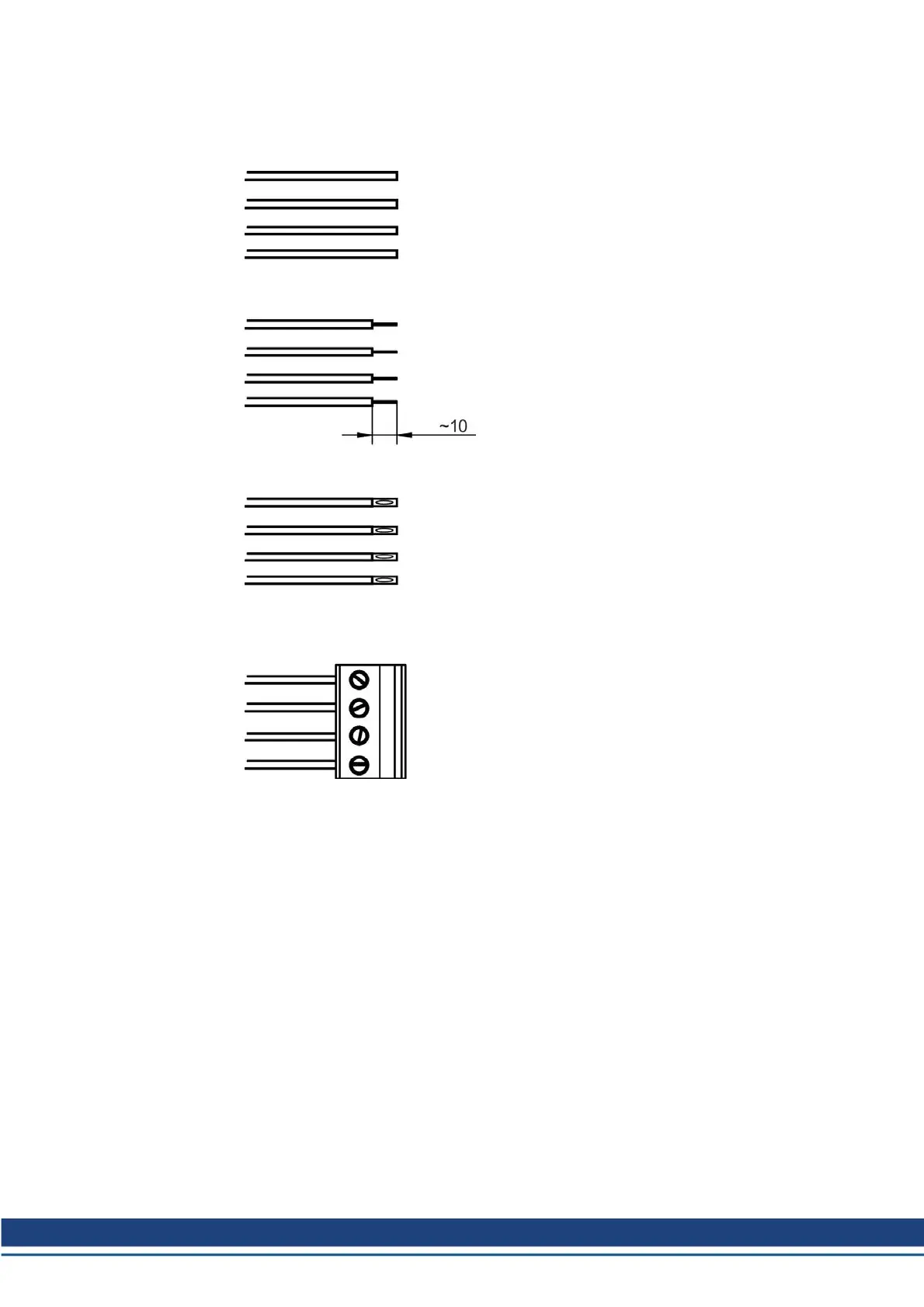

Strip off about 10 mm of the insulation at the ends of the
cores. Take care to avoid damage to the copper strands
while doing this. Depending on the cross-section of the
core and the type of bootlace ferrule that is used, the
length that has to be stripped may vary by several mil-
limeters.
Apply bootlace ferrules to the conductors. As an altern-
ative, you can also use terminal pins.
Connector example S601...620:
Push the ends of the conductors into the connector as far
as they will go. Follow the pin assignment in the instruc-
tions manual. Tighten the screws of the terminals. Take
care that the insulation is not trapped in the terminals.
Accessories Europe | 11 Cables
Kollmorgen | December 2014 53
