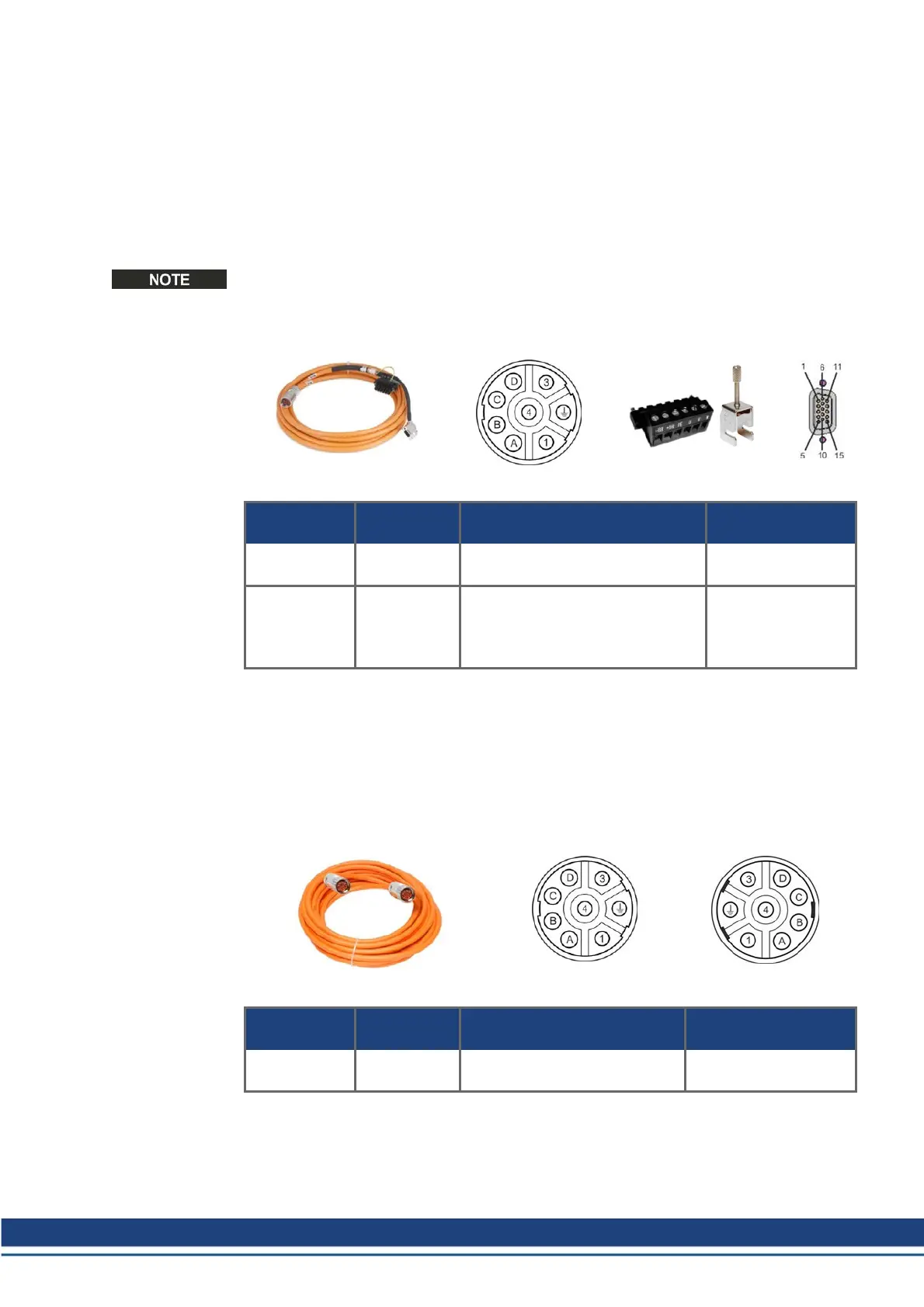

11.10.2 AKD to AKM2-6 (IP65 connector)
You should use the configured Kollmorgen cables.
With shield clamp for AKD-B/P/T/M, motor connector size 1 (up to 22A)
AKD-B/P/T/M series servo amplifiers have a 15 pole high density SubD female connector to
connect the feedback and a terminal connector for power wiring. The hybrid cable is splitted
to power and feedback cables on the servo amplifier end. The cable shield can be connected
to the servo amplifier front with the attached shield clamp.
For DSL and SFD3 connection to AKD-B/P/T/M, the feedback connector on the servo amp-
lifier end contains electronics.
Usable for AKM2 to AKM6 (connector option D, feedback option C-, CA, GE and GF). Define
the required length in clear text (steps of 1 m). Maximum cable length 25 m.
Servo
amplifier
(4x1+(2x0.34)
+(2x0.75))
Usable to connect Order code
AKD-B/P/T/M SFD AKD-x00306 & x00606* and AKM2-
6 (connector D, feedback C-)
CCS1A1-010-vvv-00
AKD-B/P/T/M SFD3/DSL &
Brake
AKD-
x00306,x00606,x00307,x00607*
and AKM2-6 (connector D, feed-
back CA, GE, GF)
CCJ1A1-015-vvv-00
*= x means variants -B, -P, -T and -M
For AKD-N, motor connector size 1 (up to 22A)
AKD-N series servo amplifiers have an 8 pole round connector to connect both motor power
and feedback.
Usable for AKM2 to AKM6 (connector option D, feedback option CA, GE and GF).
Maximum cable length 5 m.Length definition: xx=meters, yy=centimeters.
0.2, 0.3, ... , 1.0 (steps 0.1m up to 1m)
1.25, 1.5, ... , 2.0 (steps 0.25m up to 2m).
Servo
amplifier
(4x1+(2x0.34)
+(2x0.75))
Usable to connect Order code
AKD-N SFD3/DSL &
Brake
AKD-N and AKM2-6 (connector
D, feedback CA, GE, GF)
CCJNA1-015-xxmyy-00
Accessories Europe | 11 Cables
Kollmorgen | December 2014 63
