Accessories Europe | 11 îîCables

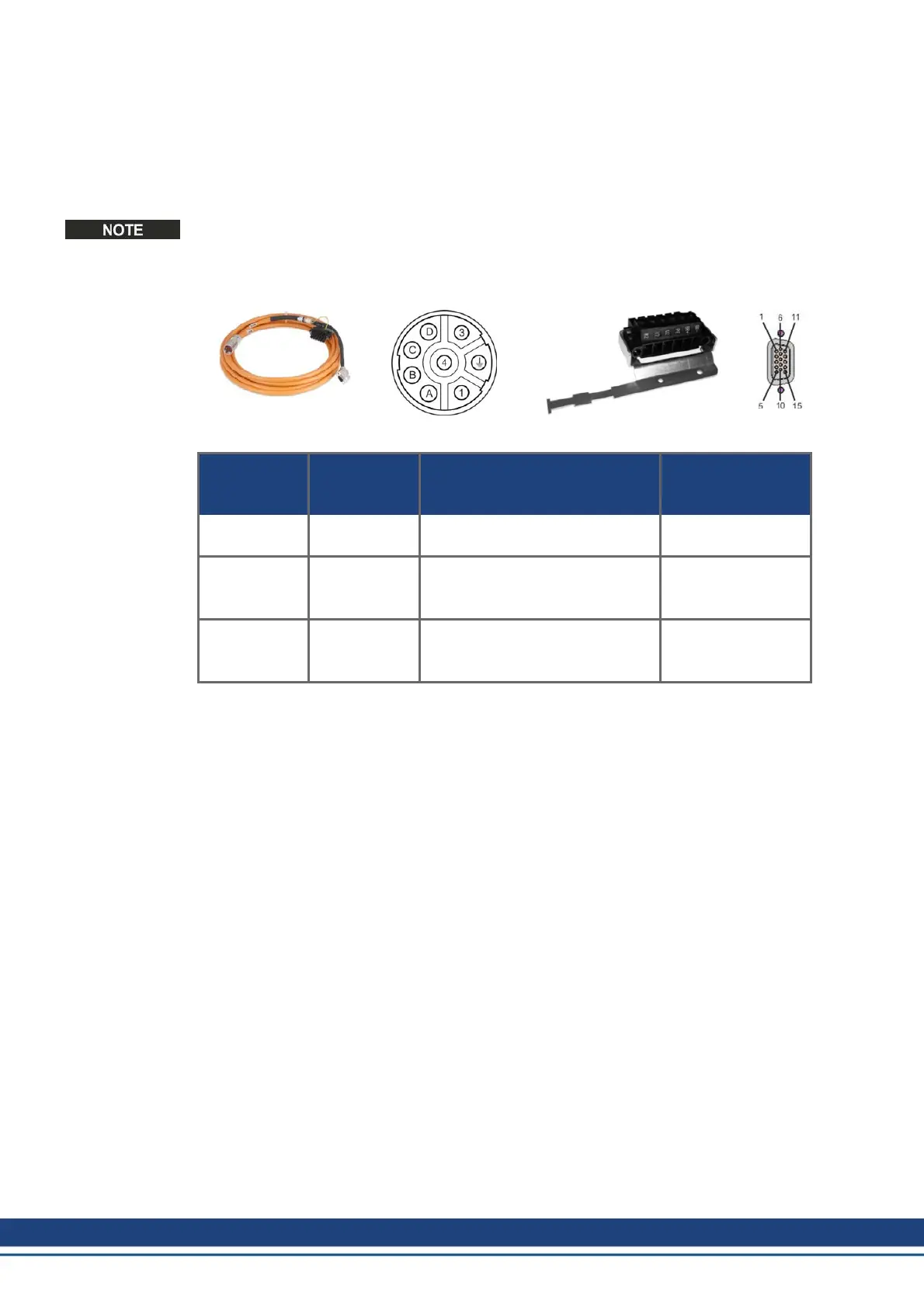

With shield plate for AKD-B/P/T/M, motor connector size 1 (up to 22A)
AKD-B/P/T/M series servo amplifiers have a 15 pole high density SubD female connector to
connect the feedback and a terminal connector for power wiring. The hybrid cable is splitted
to power and feedback cables on the servo amplifier end. The cable shield is automatically
connected to the servo amplifier front with the mounted shield plate.
For DSL and SFD3 connection to AKD-B/P/T/M, the feedback connector on the servo amp-
lifier end contains electronics.
Usable for AKM2 to AKM6 (connector option D, feedback option C-, CA, GE and GF). Define
the required length in clear text (steps of 1 m). Maximum cable length 25 m.
Servo
amplifier
(4x1.5+
(2x0.34)
+(2x0.75))
Usable to connect Order code
AKD-B/P/T/M SFD AKD-x01206* and AKM2-6 (con-
nector D, feedback C-)
CCS2A1-015-vvv-00
AKD-B/P/T/M SFD3 & Brake AKD-x01206 & x00307...x01207*
and AKM2-6 (connector D, feed-
back CA)
CCJ2A1-015-vvv-00
AKD-B/P/T/M DSL & Brake AKD-x01206 & x00307...x01207*
and AKM2-6 (connector D, feed-
back GE/GF)
CCJ2A1-015-vvv-00
*= x means variants -B, -P, -T and -M
64 Kollmorgen | December 2014
