6.4 Mains choke 3L
A number of servo amplifiers can be connected to one and the same mains choke; the rated
current of the mains choke must be greater than or at least equal to the total current of the
connected servo amplifiers.

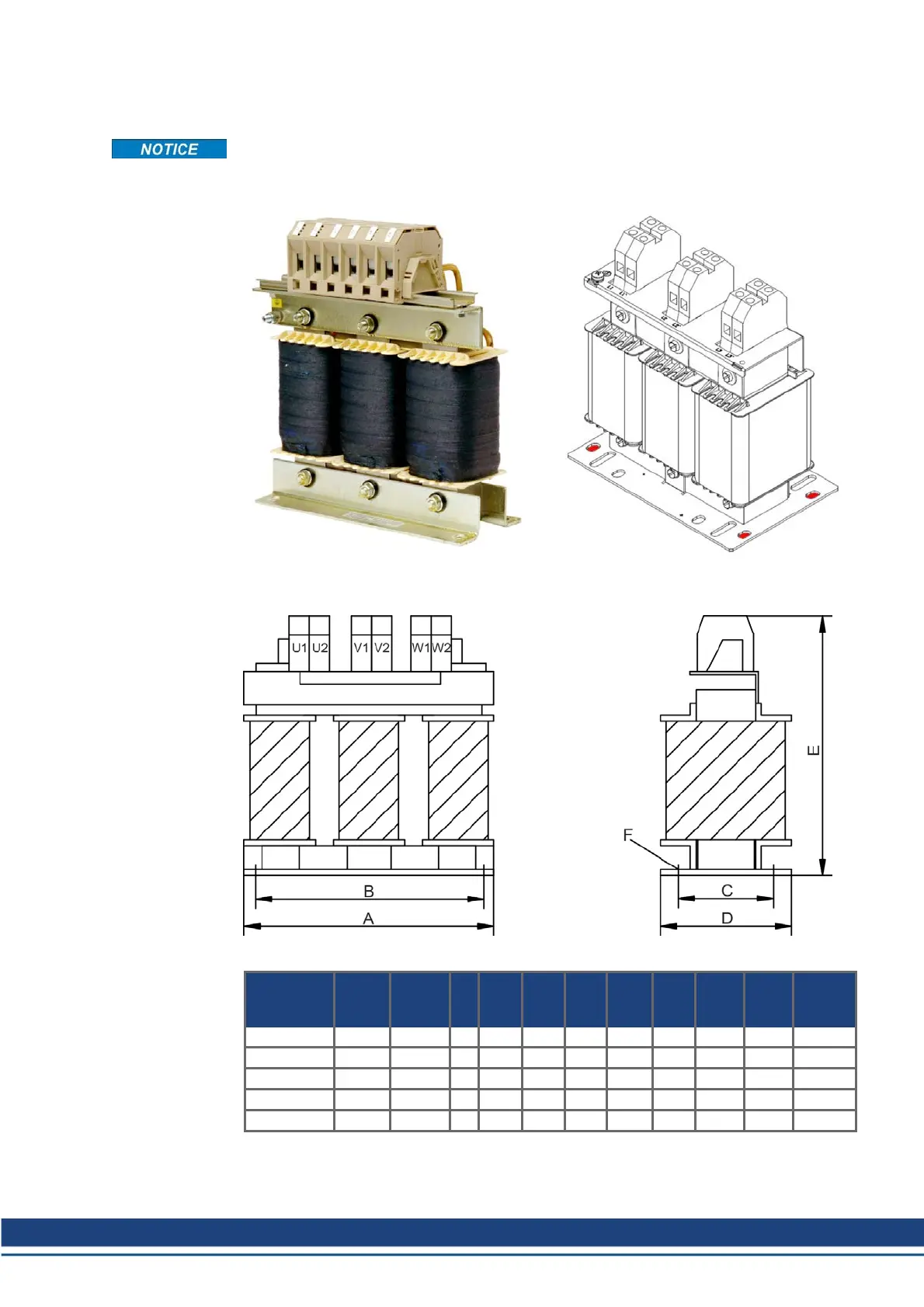

Photo: 3L0,2-160-4, all models
are similar
Technical Data
Inducti-
vity
Nominal
Current
uk A B C D E F Termi-
nals
Weight
Type [mH] [A] [%] [mm] [mm] [mm] [mm] [mm] [mm] [mm²] [kg]
3L 0,5-63-4 0.47 63 4 185 170 77 122 215 8x12 16 9.65
3L 0,4-80-4 0.37 80 4 210 175 85 125 240 8x12 16 12.5
3L 0,2-160-4 0.19 160 4 291 273 116.5 148.5 310 10x18 95 27
3L 0,24-50-2 0.24 50 2 152.5 114.3 88.9 114.3 163 6.5 10 5.9
3L 0,2-75-2 0.20 75 2 185 170 77 122 220 8x12 35 9.9
