7C - 80

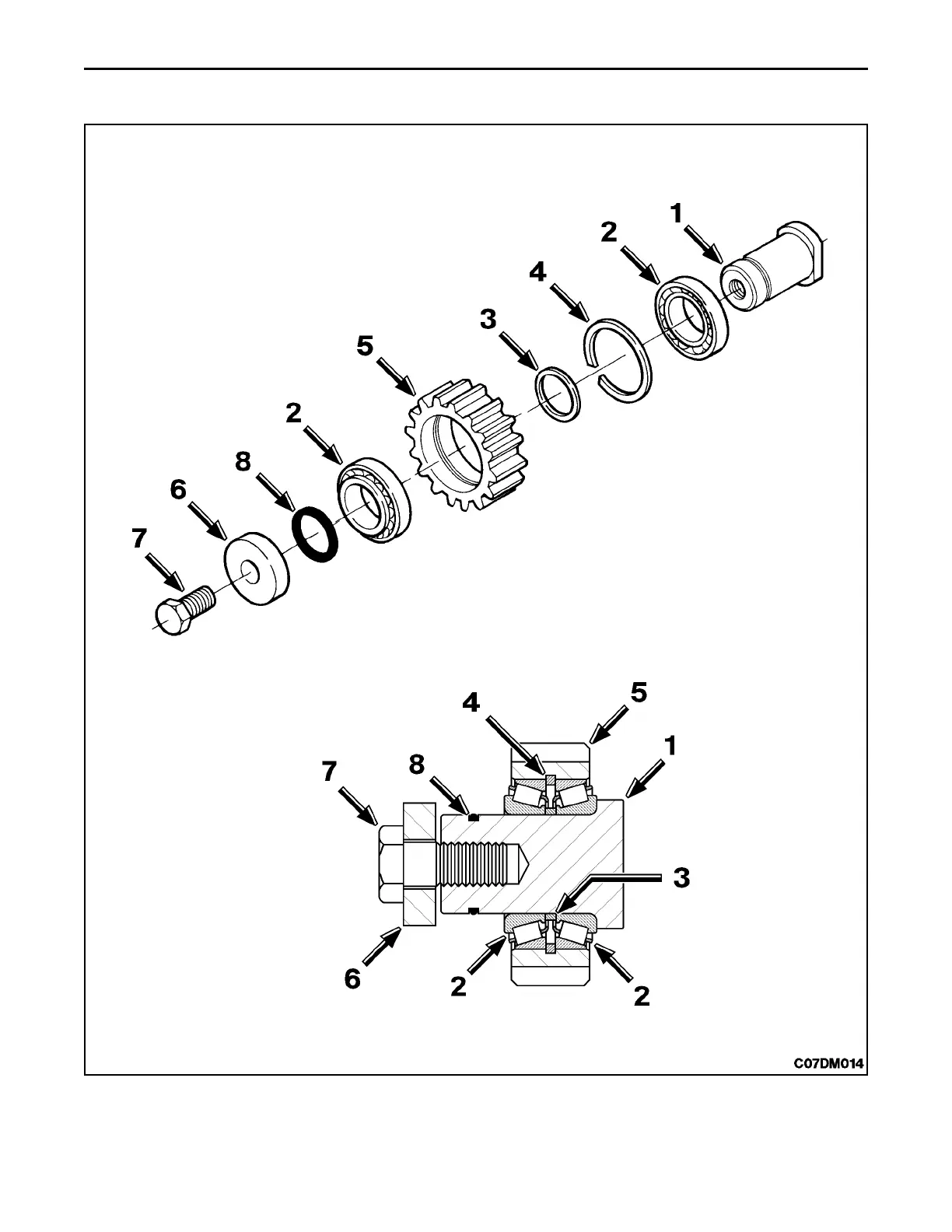

EXPLODED AND CROSS SECTION VIEWS OF REVERSE IDLER SHAFT
TRANSMISSION
REVERSE IDLER SHAFT
GENERAL
1.
Reverse Idler Shaft
2.
Double Bearing
4.
Bearing Cup Spacer
6.
Shaft Retainer
8.
Seal Ring
3.
Cone Spacer
5.
Reverse Idler Gear
7.
Mounting Bolt
218
