Komatsu D39P-1 Shop Manual

17 - 2
D32E-1 OR D38E-1
D32P-1 OR D38P-1
MOUNTED EQUIPMENT C FRAME RUB BARS
MOUNTING

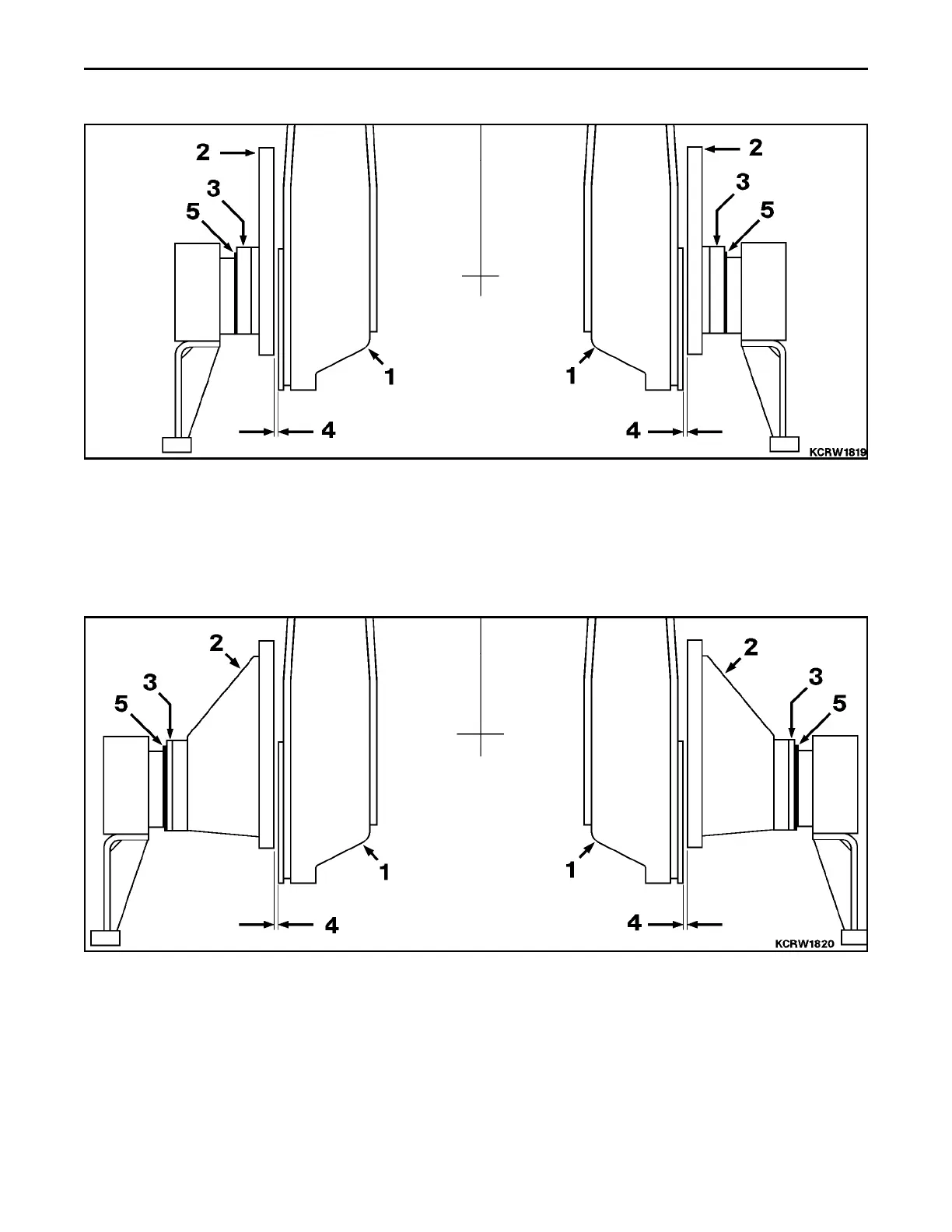

1. C Frame 2. Rub Bar 3. Spacer Plate 4. Nominal Gap 5. Shims
6.35 ±1.5 mm
(0.25 ±0.06 in)
Center C frame (1) on machine. Bolt rub bar (2) and spacer plate (3) without shims. Measure gap (4) between rub bar
and C frame plate along length. Install shims (5) between spacer plate and track frame mounting block to establish a
nominal gap. Torque bolts to 180 NCm (140 lbf ft) ±10%.
2. Rub Bar 3. Spacer Plate 4. Nominal Gap 5. Shims
1. C Frame
6.35 ±1.5 mm
(0.25 ±0.06 in)
Center C frame (1) on machine. Bolt rub bar (2) and spacer plate (3) without shims. Measure gap (4) between rub bar
and C frame plate along length. Install shims (5) between spacer plate and track frame mounting block to establish a
nominal gap. Torque bolts to 180 NCm (140 lbf ft) ±10%.
