FRONT IDLER UNDERCARRIAGE
14 - 11

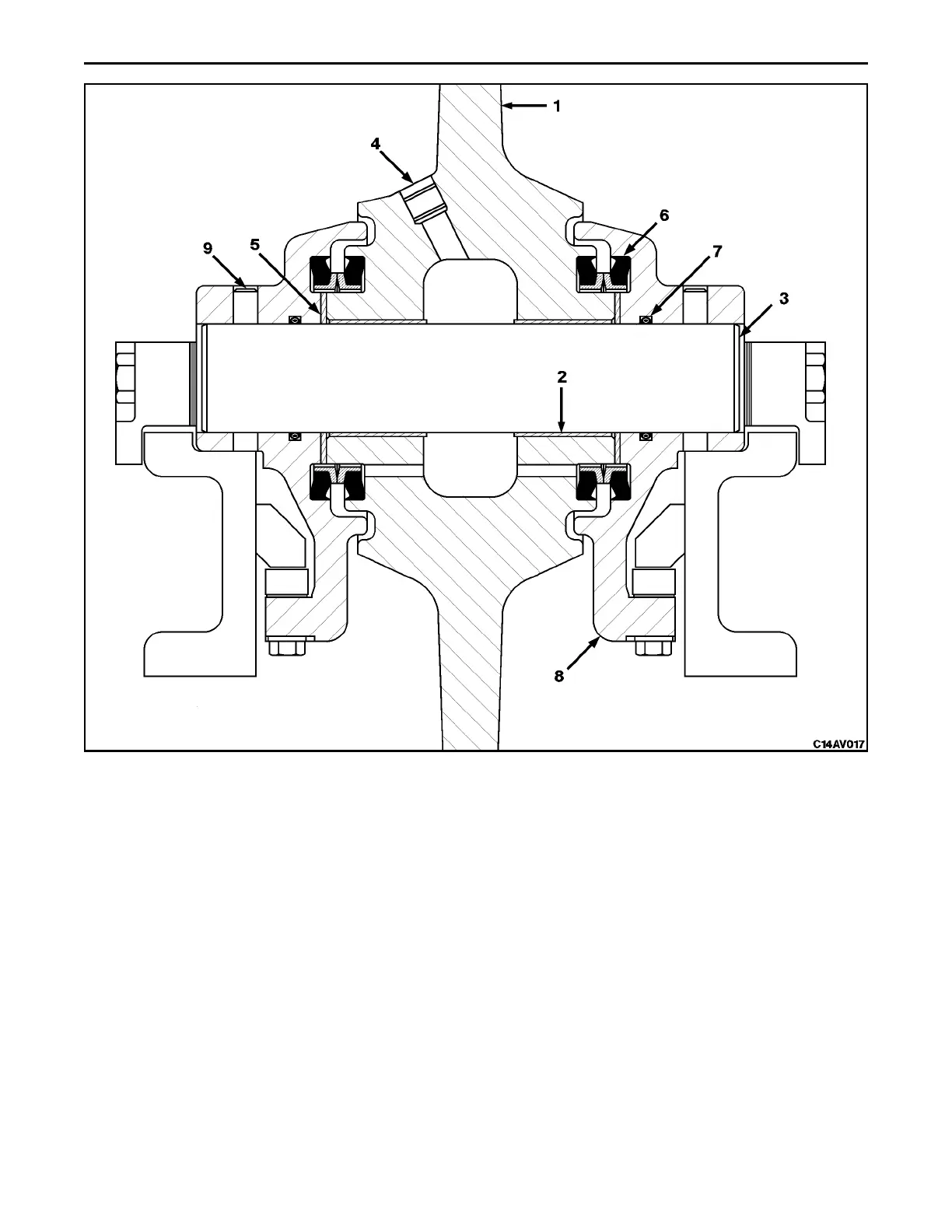

CROSS SECTION VIEW OF FRONT IDLER
SPECIFICATIONS
Weight:
D32E-1, D32P-1 .................................................................. . 91 kg (200 lb)
D38E-1, D38P-1 .................................................................. . 91 kg (200 lb)
D39E-1, D39P-1 ................................................................. . 134 kg (297 lb)
Refill Quantity .................................................................... 355 mR (12 fl oz)
Refill Lube .............................................. See OPERATION & MAINTENANCE MANUAL
Bushing Installation Lube ............................................................... Loctite #609
Drain Plug Lubricant ...................................................................Loctite #592
Fork Mounting Bolts Torque ........................................................ 134 NCm (98 lb ft)
Drain Plug Torque ................................................................. 34 NCm (25 lb ft)
Thrust Plate Bolts Torque ......................................................... 190 NCm (140 lb ft)
