COUNTERSHAFT TRANSMISSION
7C - 55
DISASSEMBLY
REMARK
Callouts from exploded and cross section views correspond with
callouts in following steps.

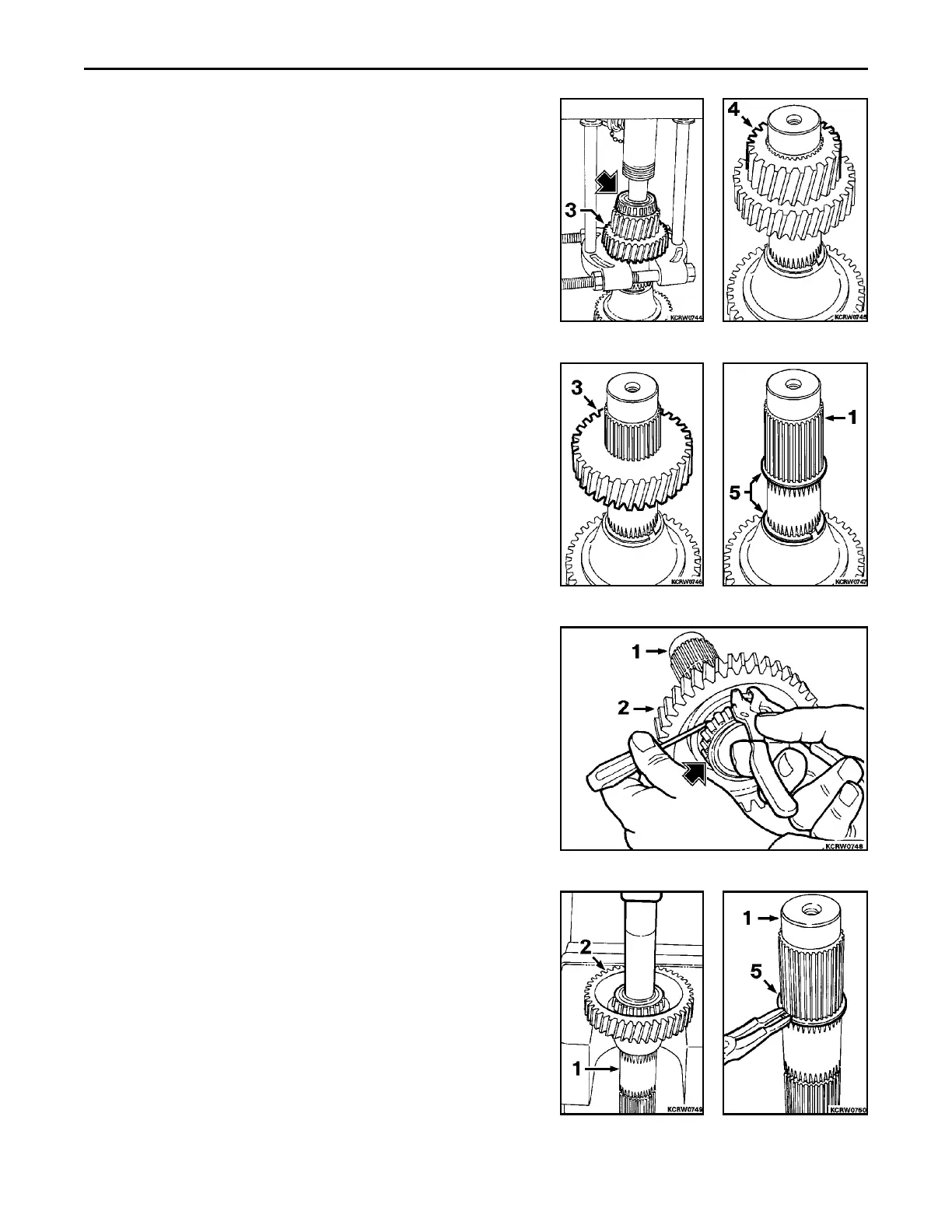

1. Install bearing puller arrangement to 2nd speed gear (3).
Activate ram to unseat bearing press fit. Remove puller arrange-
ment and bearing after press fit is unseated.
2. Remove 1st speed gear (4).
3. Remove 2nd speed gear (3).
4. Remove retaining rings (5) from shaft (1).
5. Slide 3rd speed gear (2) inboard on shaft (1) as far as possible.
Working behind bearing with pliers and screwdriver, unseat
retaining ring and remove.
6. Position assembly in press. Supporting countershaft (1), press
from 3rd speed gear (2) and bearing.
REASSEMBLY
1. Position countershaft (1) with 3rd speed gear end up, side with
two retaining ring grooves. Install retaining ring (5) to lower
groove.
