TRANSMISSION/STEERING VALVE TRANSMISSION
7C - 143

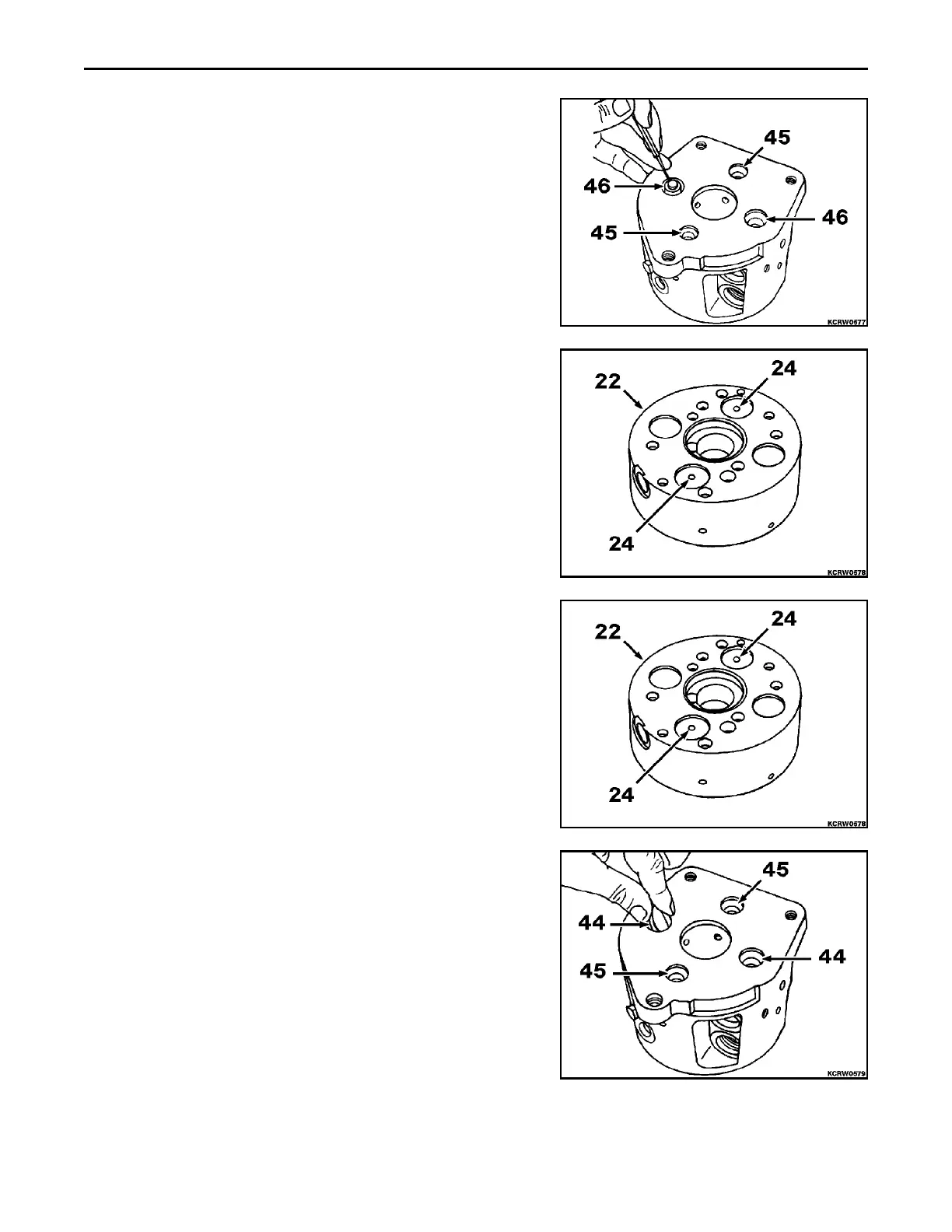

40. Remove and discard steering spool wiper seal (44) and direc-
tional spool wiper seal (45) from valve body.
41. Remove orifice plugs (24) from bottom cover (22).
42. Discard all software and replace with new.
REASSEMBLY
REMARK
Callouts from exploded and cross section views correspond with
callouts in following steps.
1. Install orifice plugs (24) and torque to 2.7 NCm (2 lbf ft).
2. Install new wiper seals (44 and 45), with U cup portion facing
down, to spool bores in valve body.
